Solenoid valve 1/4 5 ways bistable 110Vca - Mindman S.220

Delivery in 3 days
€66.49 Tax included

€55.87 tax excl.

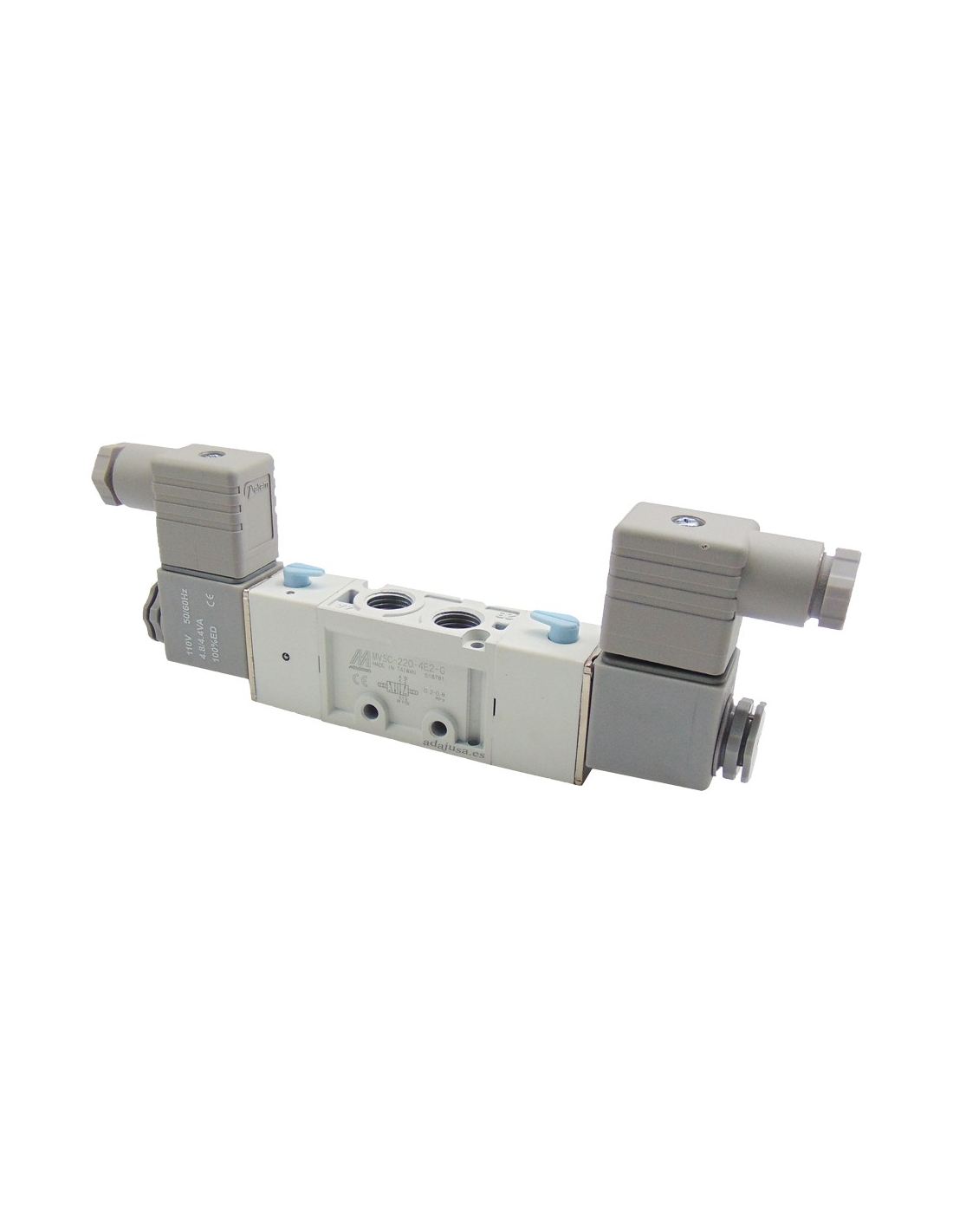

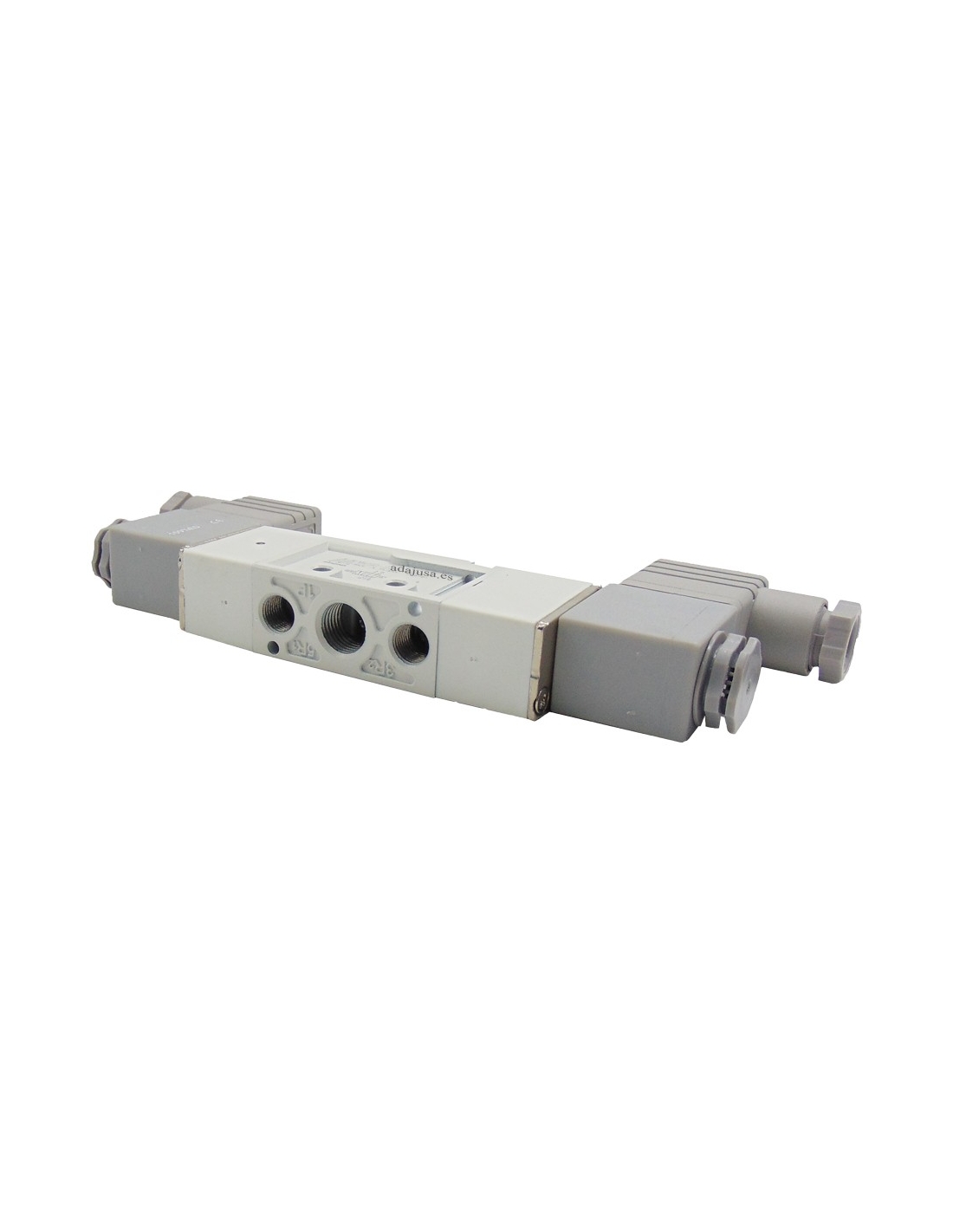

Pneumatic solenoid valve of 1/4" 5 ways bistable,with connectors and operating voltage of 110Vca.

Reference: 281MVSC2204E23

Esquema neumático electroválvula 5 vías biestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways bistable, with coil of 230Vca. For general and industrial applications.

The supply of the solenoid valve includes:

  • Solenoid valve 1/4-5/2.
  • 2 Coil 230Vca
  • 2 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-220-4E2-8A 1/4 230Vca
  • Thread type: G 1/4" (Threaded exhausts G 1/8").
  • Coil voltage: 230Vca.
  • Coil power: 2.5W.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Minimum working pressure: 2 bar.
  • maximum pressure: 10 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective surface: 18mm².
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula biestable mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
