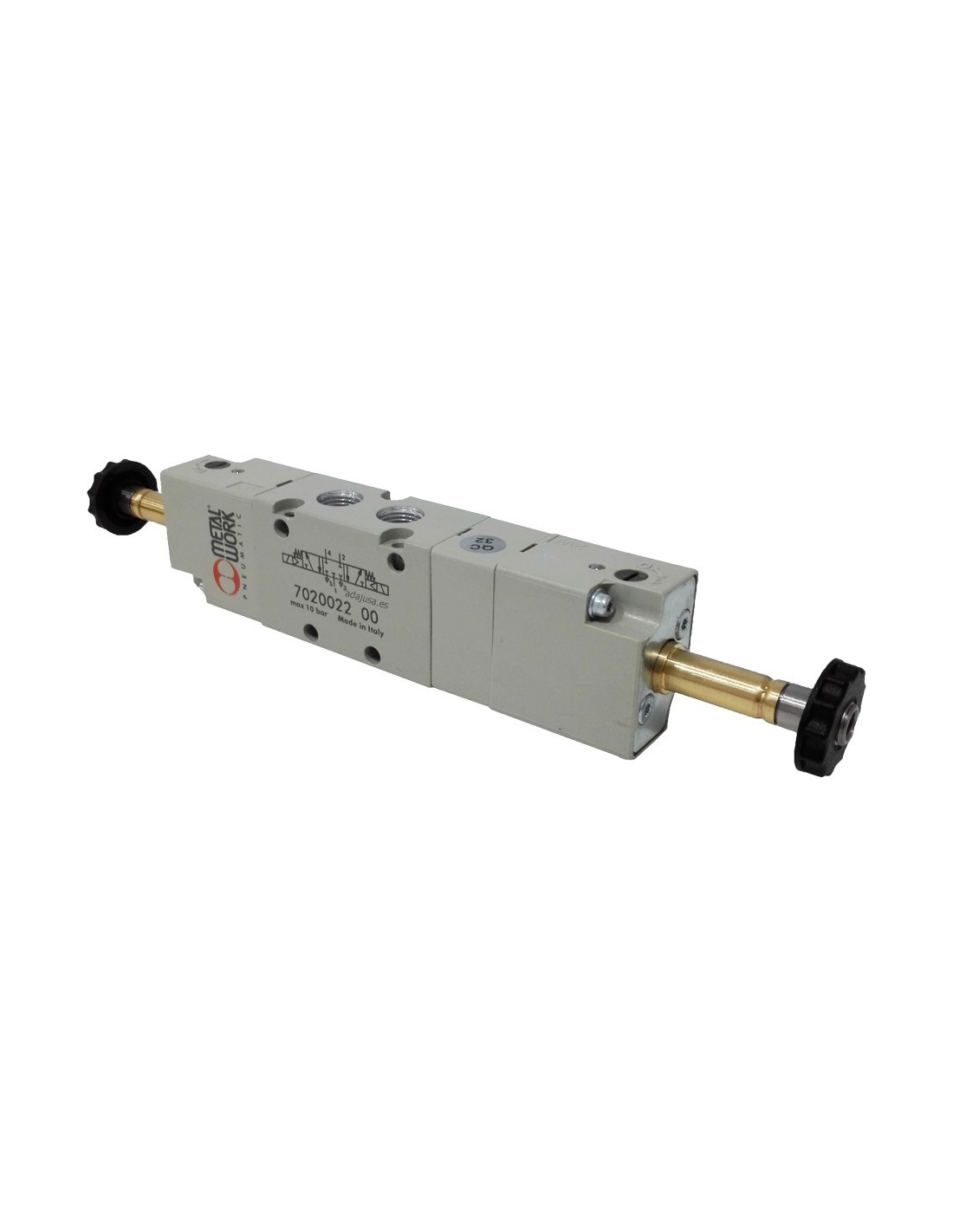

Solenoid valve 1/4 5/3 assisted exhaust centers - Metal Work

Name: Solenoid valve 1/4 5/3 assisted exhaust centers - Metal Work
Brand: Metal Work
SKU: 7020022500
Price: 119.55 EUR
Availability: BackOrder

€119.55 Tax included

100.46 tax excl.

7020022500

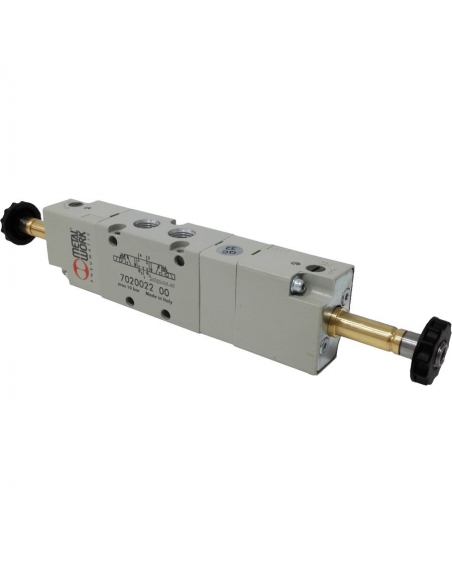

Solenoid valves of 1/4" of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use.

Reference: 7020022500

Esquema electroválvula neumática 5/3 centros escape

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valves of 1/4 " of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

Coils and connectors not included

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7020022500 - SOV 36 SES OC
Solenoid valve working pressure: Empty at 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
