Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA

Electrovanne 1/4 3 voies monostable - Metal Work

Name: Electrovanne 1/4 3 voies monostable - Metal Work
Brand: Metal Work
SKU: 7020020200
Price: 60.7733 EUR
Availability: InStock

€60.77 Tax included

€51.07 tax excl.

1/4" 3-way monostable pneumatic solenoid valve, closed (NC), for industrial applications and for general use. It accepts 22mm size coils (not included) with a Ø8mm core.

Reference: 7020020200

Solenoid valve diagram indirect control 3 ways NC

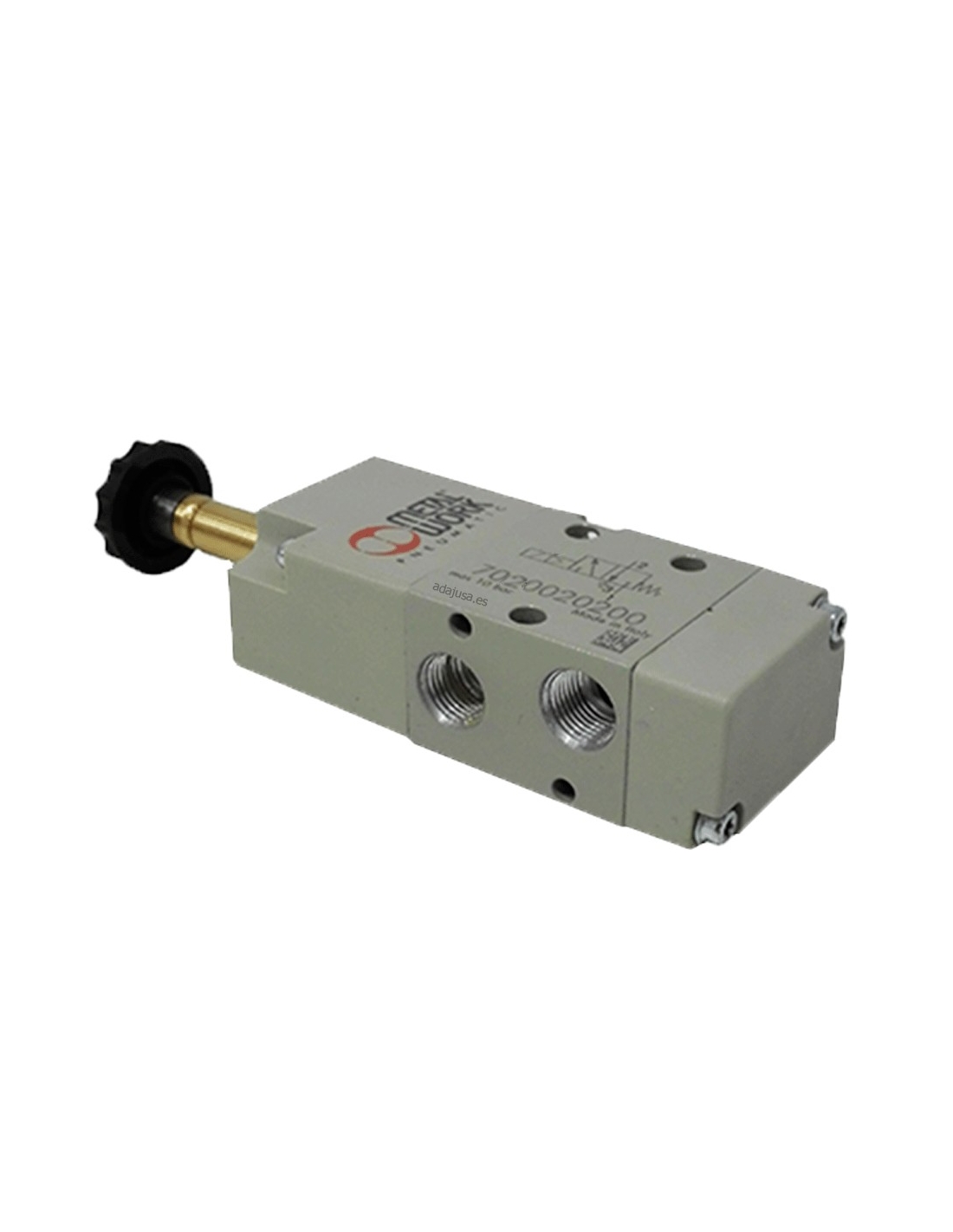

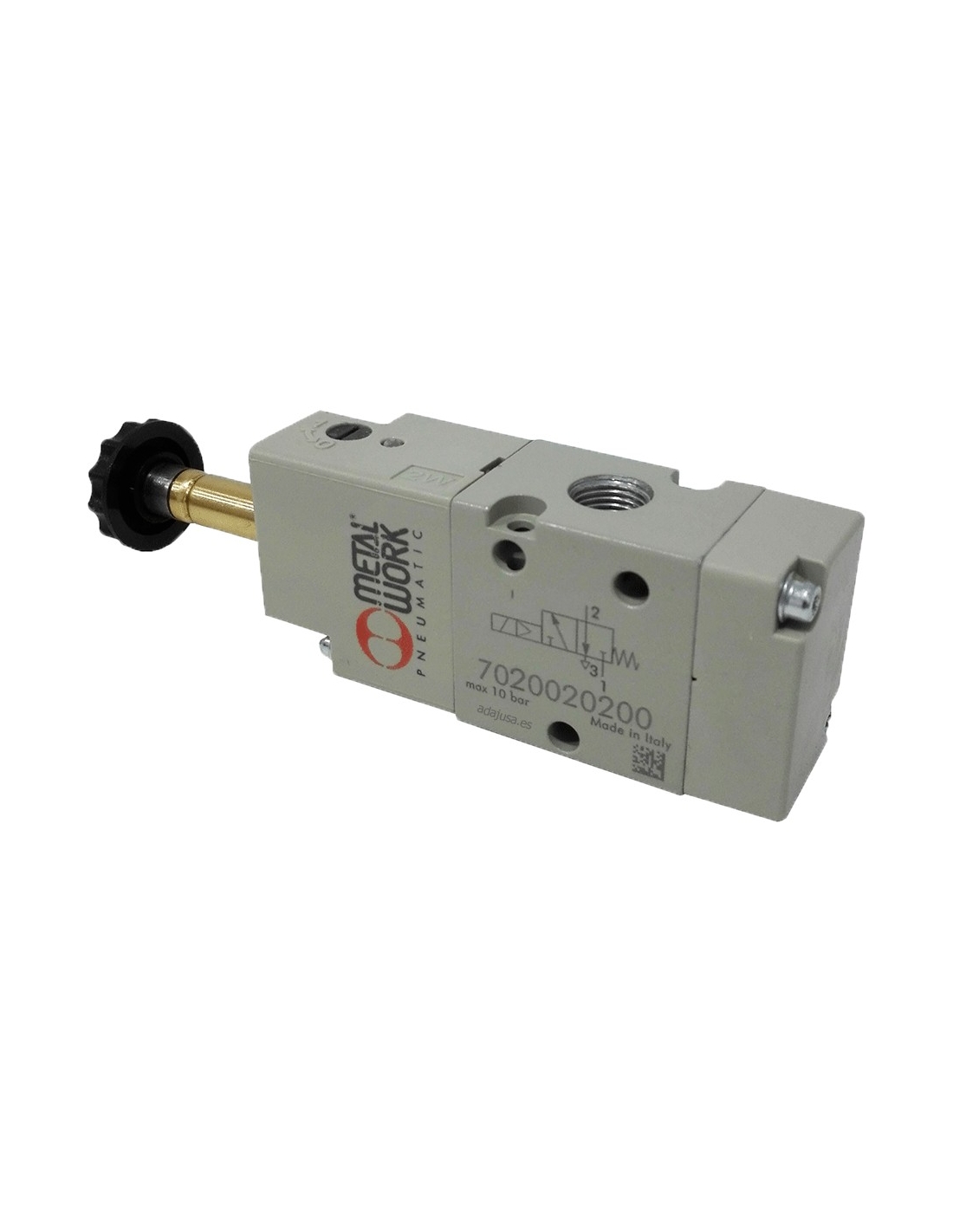

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 3-way monostable pneumatic solenoid valve, normally closed (NC), for industrial pneumatic applications or general use. Accepts 22mm size Metal Work spools with a Ø8mm core. The supply does not include coil or connector.

Made of aluminium, compact in size and with a high air flow rate, short response time.

Supply pressure is to be applied to port 2, use to port 1 and exhaust to port 3.

Technical characteristics:

Solenoid valve manufacturer: Metal work.
Manufacturer reference: 7020020200 - SOV 33 SOS NC
Type: 1/4-5/2 Monostable
Thread: G 1/4"
Operating pressure: 2.5 bar÷10 bar
Minimum working pressure: 2.5 bar
Working temperature: -10°÷ +60°C
Nominal diameter: 5mm.
Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
Capacity at 6 bar ΔP 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.152kg.
Manual activation: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
