solenoid valve 3/8 5 ways bistable without coil - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 2,5 W T22 Ø8 - Metal Work - ADAJUSA

solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable 24Vac - Metal Work

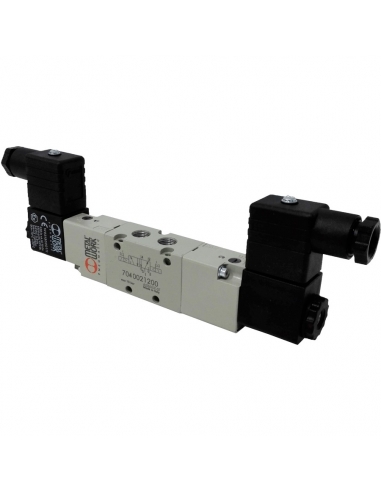

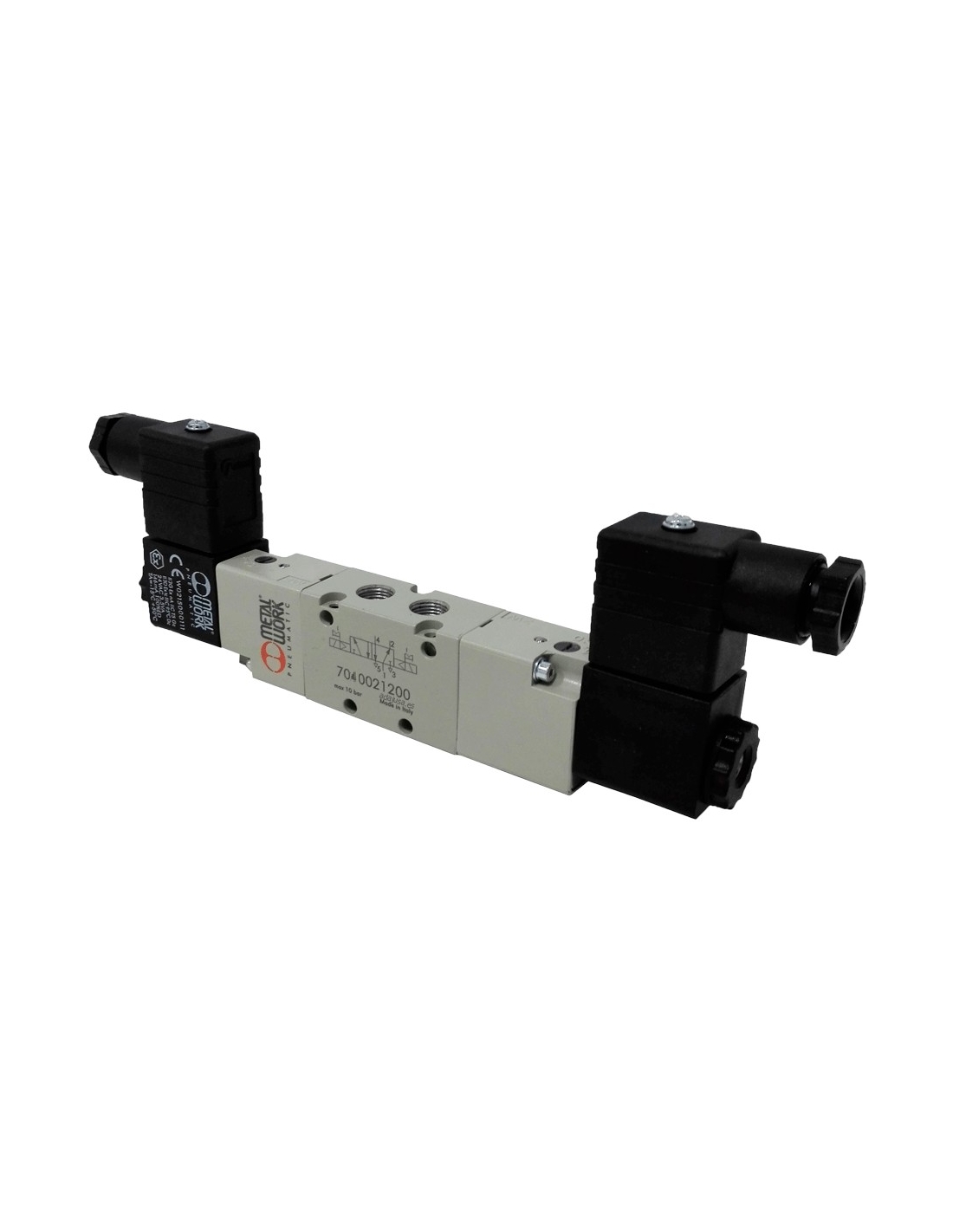

Name: Solenoid valve 3/8 5 ways differential bistable 24Vac - Metal Work
Brand: Metal Work
SKU: PK-385DB24A
Price: 127.0801 EUR
Availability: PreOrder

€127.08 Tax included

€106.79 tax excl.

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. With 24Vac connectors and coils esquema neumático electroválvula nemática 5 vías

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

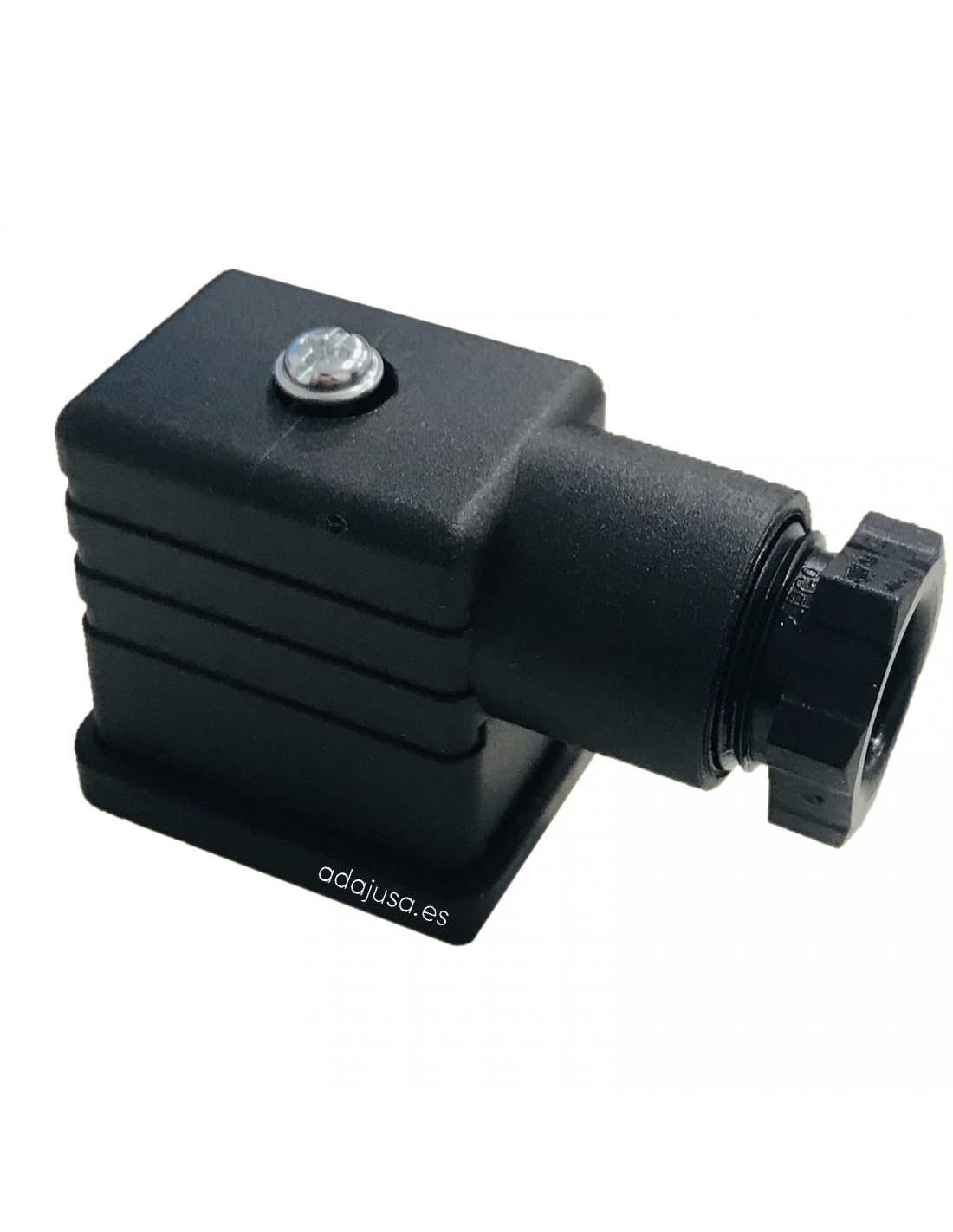

Solenoid valve connector size 22 - Metal Work

€1.37

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.38

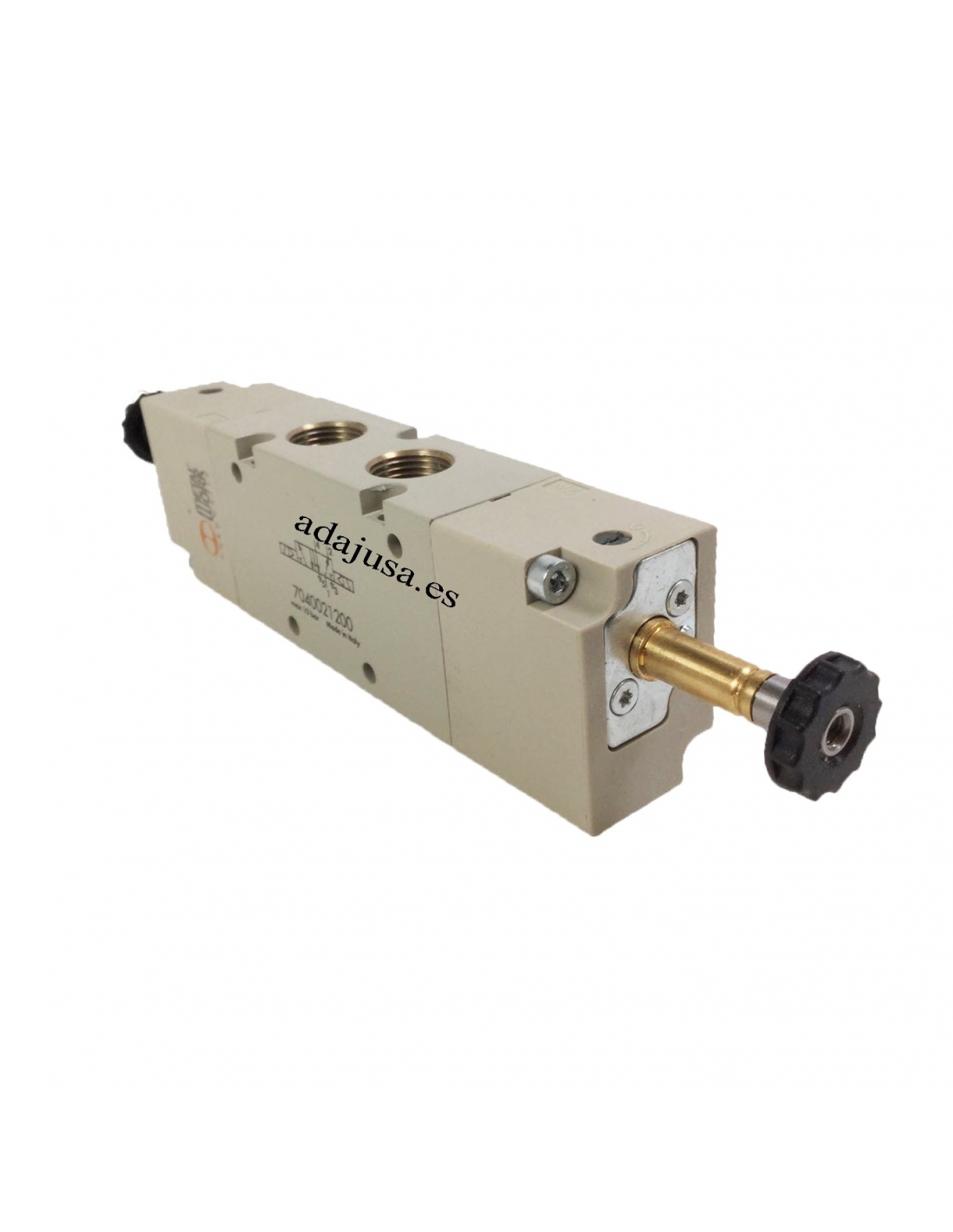

Solenoid valve 3/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

€107.59

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 5 ways 2 bistable differential positions. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 5/2 bistable differential
2 Coils 24Vac 3,5VA
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040021300 - SOV C5 SOD OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
