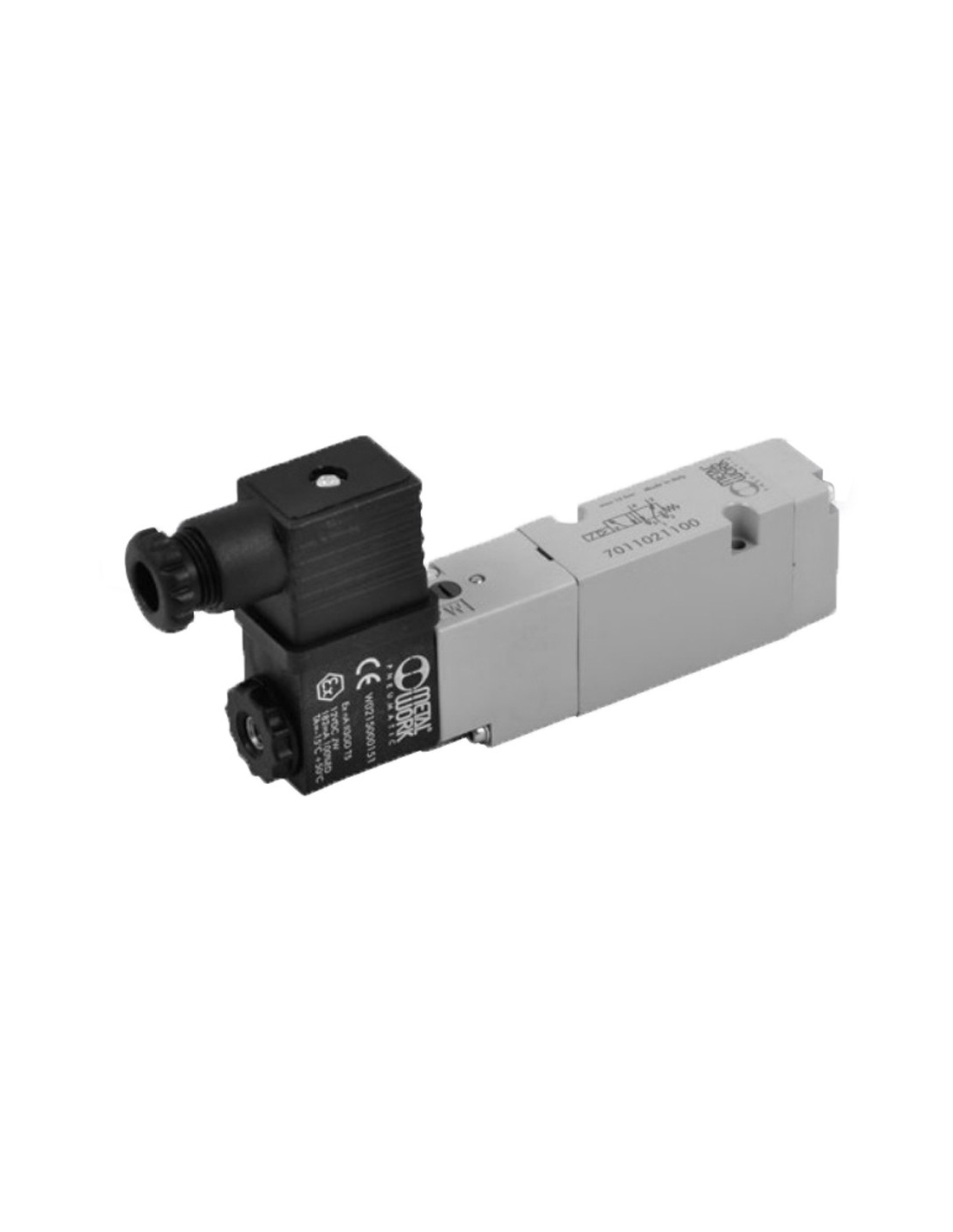

Pneumatic solenoid valve 5/2 monostable series 70 on plate. With connector and coil of 24 Vdc 2 W
The supply includes:
- Solenoid valve 5/2 monostable
- Coil 24Vdc 2W
- Connector 22 mm
Features:
- Manufacturer: Metal Work
- Reference: 7011021100 - SOV B5 SOS OO
- Pressure (bar): 2.5 +/- 10
- Minimum pressure (bar): 2.5
- Operating temperature (ºC): -10 +/- 60
- Nominal diameter (mm): 5
- Conductance C (N| /min - bar): 107.69
- Critical ratio b (bar): 0.29
- Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
- Flow at 6 bar ∆P 1 bar (N| /min): 450
- Monostable TRA/TRR at 6 bar (ms): 15 / 35
- Tension tolerate (%): -10 +/- 15
- Insulation class: F 155
- Maximum torque core coil (Nm): 1
- Voltage: 24 Vdc
- Power: 2 W
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
