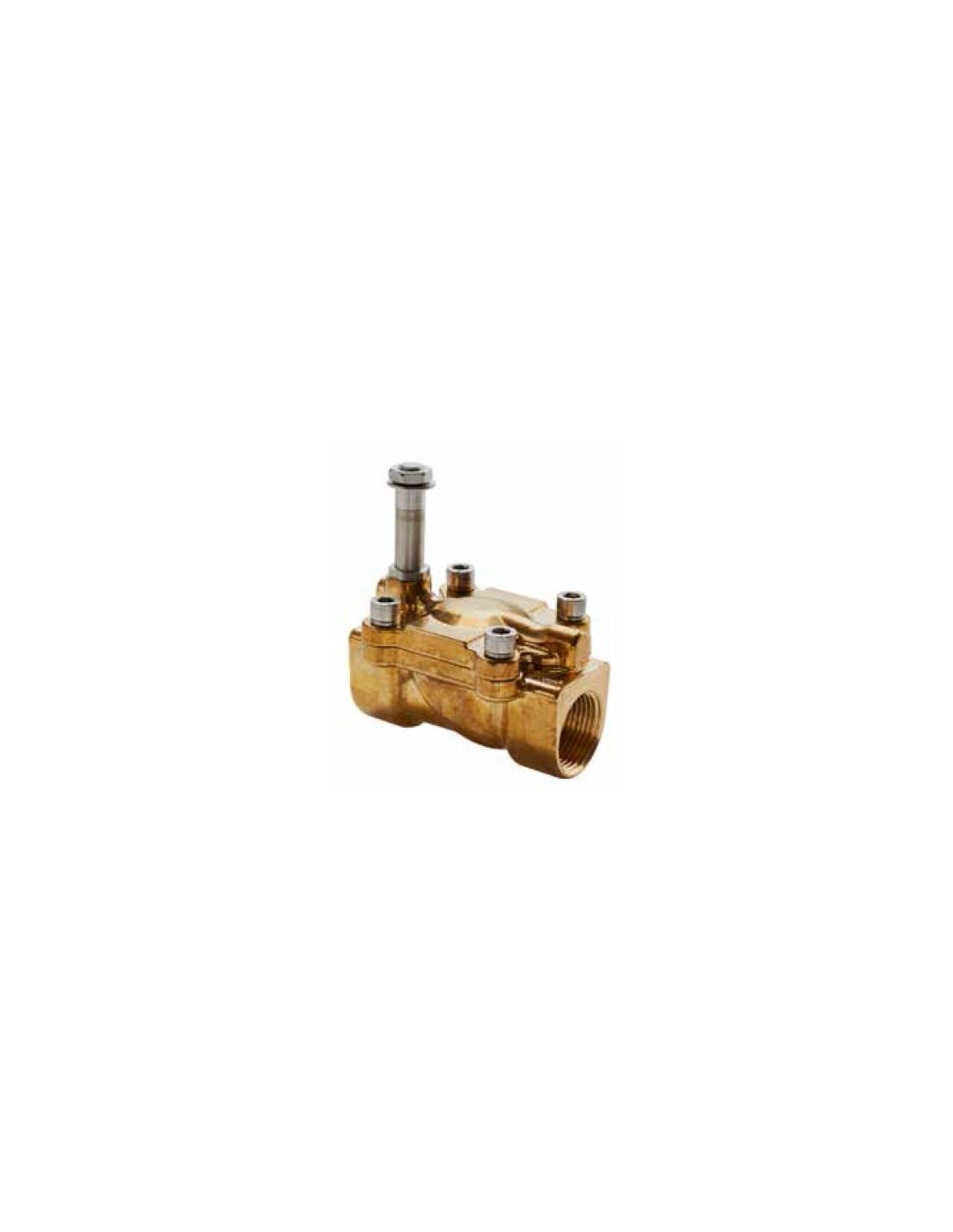

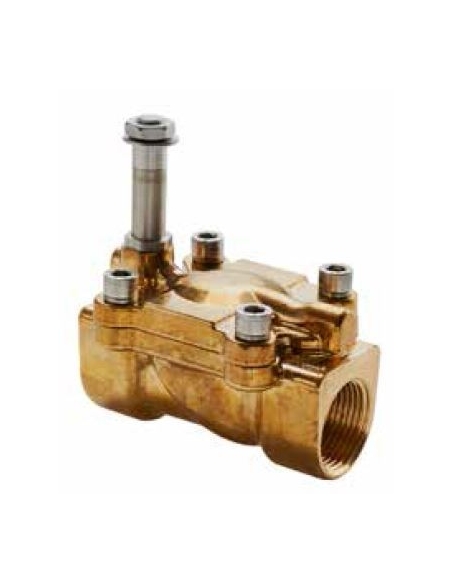

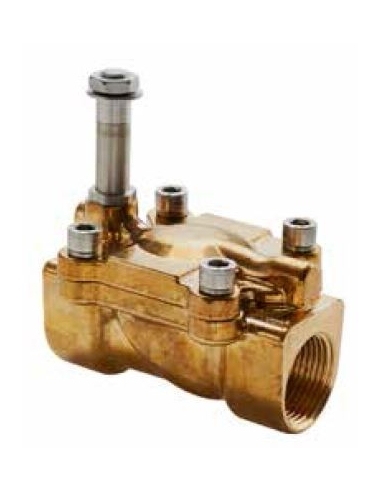

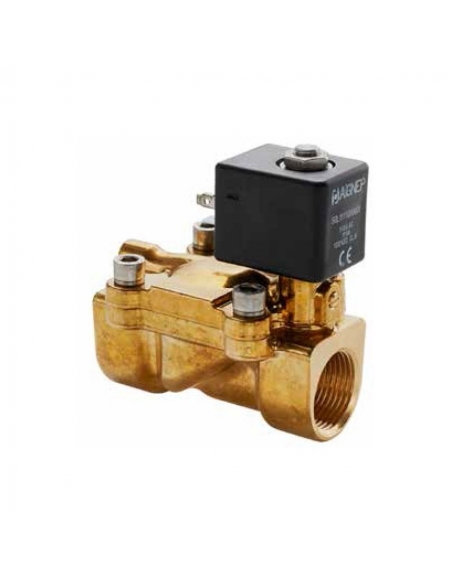

Solenoid valve fluids 1 2/2 closed 24Vac 11VA indirect drive D.25

Solenoid valve 1"diaphragm diaphragm valve, 2 way, normally open closed (NC), with 24Vac 11VA coil, for use with fluids or air, for indirect operation. Brass body and stainless steel coil handle.

Flow diameter: 25mm

In this type of solenoid valves, indirect actuation, there must be a small pressure difference between inlet and outlet to work properly.

The maximum working pressure is 18 bar and the pressure differential (ΔP bar) must be at least 0.15 bar.

The solenoid valve is normally closed, i.e. without voltage on the coil, the fluid or air will be interrupted through the solenoid valve, when the coil is energized the passage of fluid or air will occur.

The fluids with which this solenoid valve can work are:

• Air.
• Inert gases.
• Water (maximum temperature 75ºC).
• Mineral oils.
• Gas oil.
• Fuel oil.

The supply includes:

• Solenoid valve 1" 2/2 NC.
• Coil 24Vac size 30.

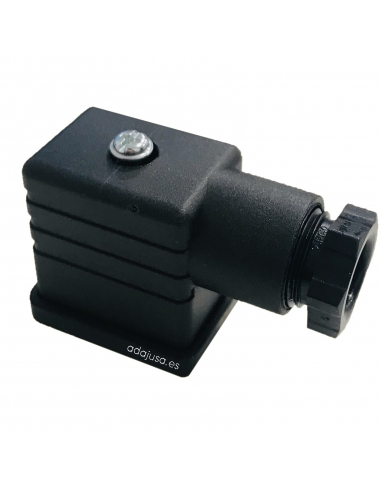

• Connector size 30.

Technical characteristics:

• Manufacturer: Aignep
• Type of control: indirect drive.
• Thread size: 1".
• number of way: 2.
• number of positions: 2.
• Configuration: 2/2 closed (NC).
• Body: brass.
• Coil voltage: 24 Vac.
• Coil power: 11VA.
• Coil size: 30mm
• Guide tube, cores and spring: Stainless steel.
• Seal type: NBR.
• Type of fluids: Pressurized air, water (max. 75ºC), mineral oils, gas oil, fuel oil.
• Maximum pressure: 18 bar.
• ISO 228 size: 1".
• flow diameter: 25mm.
• Maximum fluid viscosity (cSt): 25.
• Valve coefficient (Kv): 10.97 m³/h.
• Minimum pressure differential (ΔP bar): 0.15 bar.
• Differential pressure (OPD): 0,15 bar - 18 bar
• Solenoid valve working temperature: -10ºC to +80ºC.
• Fluid temperature: -10ºC to +90ºC.
• Installation: Never with the coil downwards.

Material for professional use, install respecting the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
