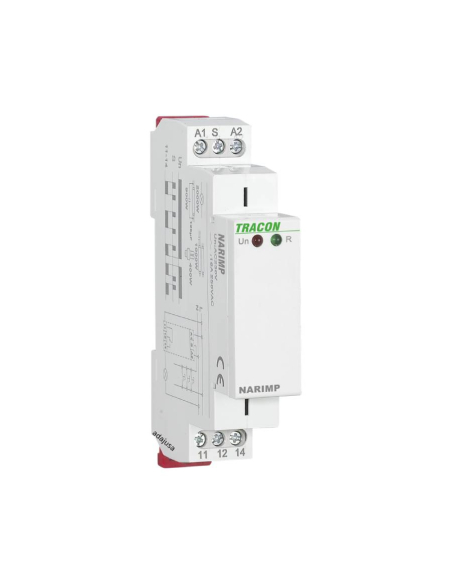

Teleswitch 16A coil 230Vac 1 changeover contact

Remote switch for electrical installations of luminaires or similar, nominal coil voltage 230Vac. It has a manually operated front control for quick action.

This type of remote switch or pulse relay is activated when the coil receives an electrical impulse; Every time the coil receives an impulse the contact changes from open to closed or vice versa, remaining in this state until it receives another impulse. That is, when the contact changes position, it is not necessary for the teleswitch coil to be under electrical current to remain in that state, but rather it needs another new electrical signal for the contact to change position again.

With this device, it is possible to control the on and off of several groups of lamps by means of several buttons connected in parallel, thus achieving savings in cables, switches and crossovers. These remote switches are specially designed for silent operation, meeting the requirements for residential buildings.

Technical characteristics:

• Manufacturer/Supplier: Tracon
• Reference: NARIMP
• Nominal voltage (Ue): 230Vac
• Maximum insulation voltage (Ui): 500Vac
• Rated current: 16A
• Maximum load with incandescent lamp: 2000W
• Maximum load with fluorescent lamp: 900 VA
• Number of contacts: 1 switched (CO)
• Resistive load electrical life (cosϕ = 1): 500,000 cycles
• Inductive load electrical life (cosϕ = 0.6): 250,000 cycles
• Operating temperature: -10ºC to +55ºC
• Mounting: DIN Rail
• Protection grade: IP20

NOTE : The drive voltage pulse cannot be permanent.

Installation diagram:




Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.
