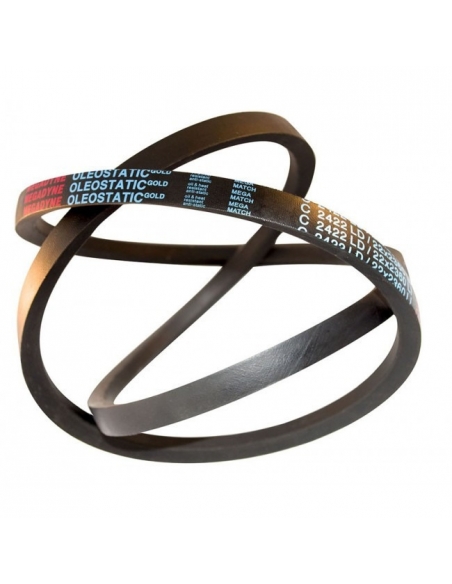

OLEOSTATIC GOLD SPZ 10x1362mm Trapecial Strap - MEGADYNE
€17.67
Tax included
14.85 tax excl.
SPZ1362-GOLD
OLEOSTATIC GOLD V-belt type of profile "SPZ" 10x8mm, with an internal development length of Li-1311mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacturing, which provides low stretching, wear and are lubricant resistant. The OLEOSTATIC GOLD series are the ultimate exponent of the range of lined trapeze straps.
- Ref: OLEOSTATIC GOLD SPZ 1362
- Megadyne Part number: 390701030068
- Reference development length (Lw - Ld): 1362mm.
- Outer length (La - Le) : 1375mm.
Oleostatic gold V-belt, with profile section type "SPZ" of 10x8mm and with an internal development of 1311mm, specially designed for maximum performance in a wide range of industrial applications, agricultural machinery and gardening.
Manufactured with high quality raw materials to provide straps with high performance, low stretch and very resistant to wear. They are also lubricant resistant and with a wide temperature range (-30oC to +80oC).
OLEOSTATIC GOLD has a transmission capacity of up to 30% more compared to standard OLEOSTATIC belts, so it allows you to have a more compact transmission design. All components are halogen-free in compliance with RoHs regulations.
Manufactured according to REACH regulations and tolerances according to ISO 4184
Technical details:
- Manufacturer: MEGADYNE.
- Series: Oleostatic GOLD.
- Reference: SPZ1362.
- Part number: 390701030068
- Type: Classic section "SPZ".
- Reference development length (Lw - Ld): 1362mm.
- Outer length (The -Le): 1375mm.
- Section dimensions 10x8mm.
- Lubrication resistant: SI.
- Temperature range: -30oC to +80oC.
- Static conductivity: according to ISO 1813.
- Tolerance: according to ISO 4184
- Weight: 0.1 Kg.
Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
Questions
Question
Una duda respecto al tamaño- si corto la correa vieja, la estiro por el exterior de la misma en una mesa y la mido ¿coincidiría con la longitud exterior? muchas gracias
Answer
Estimado cliente, de esa forma le puede servir como media orientativa, dado que puede ser que la correa este dada de si por el simple uso y que mida unos milimetros de más.
Un saludo
ADAJUSA
Un saludo
ADAJUSA
Rafael Ortiz
on
10/29/2022 22:03:53
