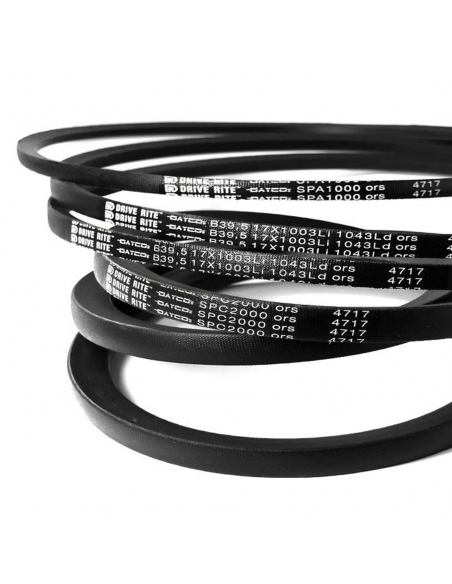

Trapecial strap section SPZ metrica SPZ1120DR 1120mm DAYCO | ADAJUSA

Metric Trapecial Strap SPZ1120 - DAYCO

Q: CORREA SPZ 1120 LW KEVLAR Referencia 01854 0000 6091 que correa es compatible con esta rf Saludos Gracias

Estimado cliente, Nuestra correa Dayco SPZ1120 tiene: El mismo perfil ( SPZ , 9,7x8 mm) La misma longitud ( 1120 mm LW ) La misma forma de trabajo (transmisión trapezoidal industrial). ➔ La única diferencia es que nuestra correa no tiene refuerzo en Kevlar , sino goma reforzada estándar. Un saludo ADAJUSA

€8.20 Tax included

6.89 tax excl.

97R-SPZ1120DR

10x8mm "SPZ" profile type metric trapetial strap, with a refencia development Ld-1120mm, for power transmission in industrial machinery and general purpose applications. Careful design and manufacturing, which provides low stretching, wear and are lubricant resistant.

Ref: SPZ1120DR.

ISO Ld reference development length:1120mm.

Logotipo Dayco

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Metric V-belt, with profile section type "SPZ" of 10x8mm and with a reference development 1120mm, specially designed for maximum performance in industrial machinery and general uses.

Manufactured with high quality raw materials to provide straps with high performance, low stretch and very resistant to wear. They are also lubricant resistant and with a wide temperature range (-35oC to +70oC).

Manufactured according to REACH regulations and tolerances according to ISO 4184

composicion correas Dayco

Technical details:

Manufacturer: DAYCO.
Drive Rite Series.
Reference: SPZ 1120 DR
Type: Classic section "SPZ".
Reference development length (Ld): 1120mm.
Section dimensions 10x8mm.
Lubrication resistant: SI.
Temperature range: -35oC to +70oC.
Static conductivity: according to ISO 1813.
Tolerance: according to ISO 4184
Weight: 0.09 Kg.

Note: Iso-based reference development (Lp) is not equivalent to the inner or outer development of the belt.

Dimensiones perfil correas trapeciales metrica

Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.

Questions

Question

CORREA SPZ 1120 LW KEVLAR
Referencia 01854 0000 6091 que correa es compatible con esta rf

Saludos
Gracias

Answer

Estimado cliente,

Nuestra correa Dayco SPZ1120 tiene:
- El mismo perfil (SPZ, 9,7x8 mm)
- La misma longitud (1120 mm LW)
- La misma forma de trabajo (transmisión trapezoidal industrial).
➔ La única diferencia es que nuestra correa no tiene refuerzo en Kevlar, sino goma reforzada estándar.

Un saludo
ADAJUSA

Carlos on 04/08/2025 20:12:59
