Straight aluminum male Elbow union 1 tube 32mm - Sicomat

Name: Straight aluminum male Elbow union 1 tube 32mm - Sicomat
Brand: Sicomat
SKU: R203.032.001
Price: 38.1157 EUR
Availability: InStock

€38.12 Tax included

€32.03 tax excl.

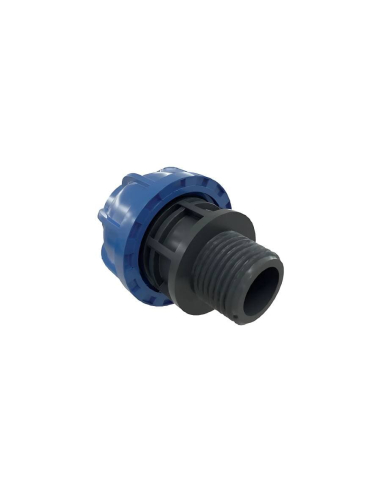

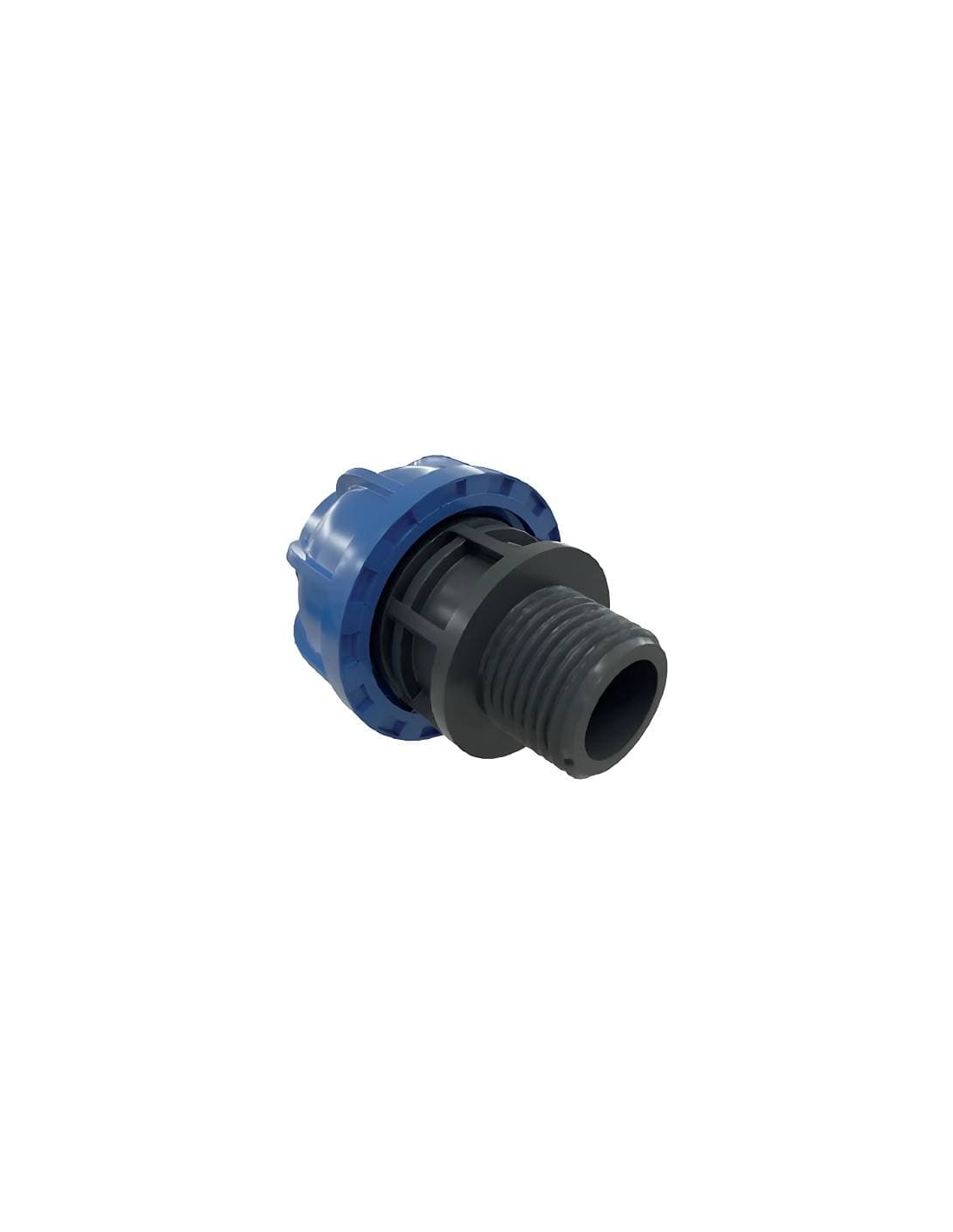

Straight union fitting with 1 conical male thread for 32mm outer diameter tube, body and nut made of aluminum. Fitting with quick coupling system that guarantees easy assembly and design versatility in networks and installations of compressed air, vacuum and inert gases.

Reference: R203.032.001

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Straight fitting with 1 conical male thread for 32mm outer diameter tube, aluminum body and nut, O-ring with a design and features that guarantee watertightness. This type of fitting allows a simple and quick connection of elements in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need to weld or tighten the ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .

Characteristics:

Manufacturer/Supplier: Sicomat/Metalwork
Reference: R203.032.001
Fitting type: Straight
Tube diameter: 32mm
Thread: Male 1 (Gas conical conforming to ISO 7)
Material: Aluminum
Application: Compressed air / Vacuum / Nitrogen
Maximum pressure conditions: -0.8 to 12.5bar
Temperature conditions: -20ºC to +70ºC
Dimensions: A = 52mm; B=68mm
Weight: 57g
All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the installation site.
