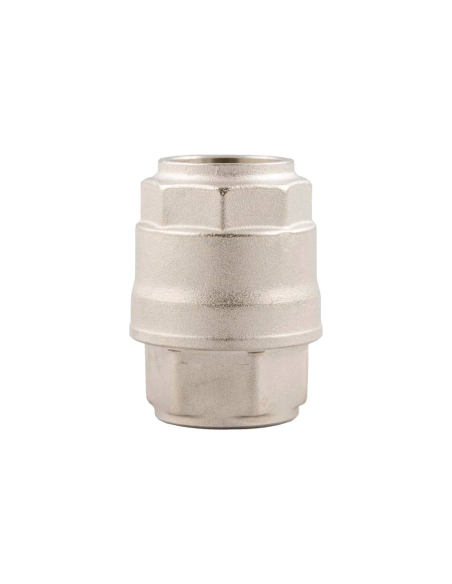

Straight fitting from union with 1/2" cylindrical female thread for 20mm OD pipe, body and nut made of nickel-plated brass, NBR O-ring. This type of fitting allows a simple and fast connection of elements in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon as it has a "Push In" system. It allows the total air flow avoiding pressure losses. Maximum working pressure 16 bar.
The 20, 25, 32 and 40mm diameter fittings come pre-assembled with the nut fully tightened, so that it is only necessary to insert the tube to the bottom of the fitting for connection or automatic assembly.
Characteristics:
- Manufacturer: Aignep
- Part number: 90030 20 1/2
- Series: Infinity
- Type of fitting: Straight
- Pipe diameter: 20mm
- Thread: Female 1/2 (Gas cylindrical according to ISO 228)
- Material: Nickel-plated brass
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of the 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical Standards and Safety Authority (TSSA), are non-flammable and flame retardant according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.
