Automatic straight fitting 1/2 pipe 6mm Series 55000 - Aignep

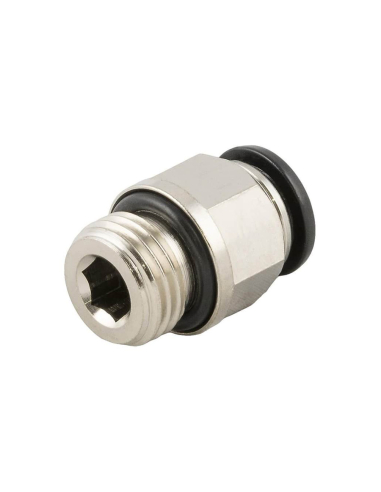

Cylindricalmale straight fitting with 1/2 thread for 6mm tube with O-ring, made of chrome-plated brass and the tube extraction ring of acetal resin. The connection is very efficient simple and allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

• Manufacturer: Aignep.
• Part number: 50020N 6 1/2
• Thread: 1/2
• Outer tube diameter: 6mm
• Fluid: vacuum, compressed air and water
• Material: Chrome-plated brass
• Tube extractor ring: acetal resin
• Seal of retention: NBR
• Clamping spring: stainless steel
• Pressure: -0,99 bar to 20 bar
• Working temperature: -20ºC to +80ºC
• Thread standard
  • Gas conical according to ISO 7.1, BS 21,DIN 2999
  • Gas cylindrical according to ISO 228 Class A
  • Metric according to ISO R/262

Material for professional use, install in compliance with the regulations in force at the place of installation.
