T- union fitting diameter 20mm - Sicomat
T- union fitting diameter 20mm - Sicomat
T- union fitting diameter 20mm - Sicomat
T- union fitting diameter 20mm - Sicomat

T- union fitting diameter 20mm - Sicomat

€7.19 Tax included

€6.04 tax excl.

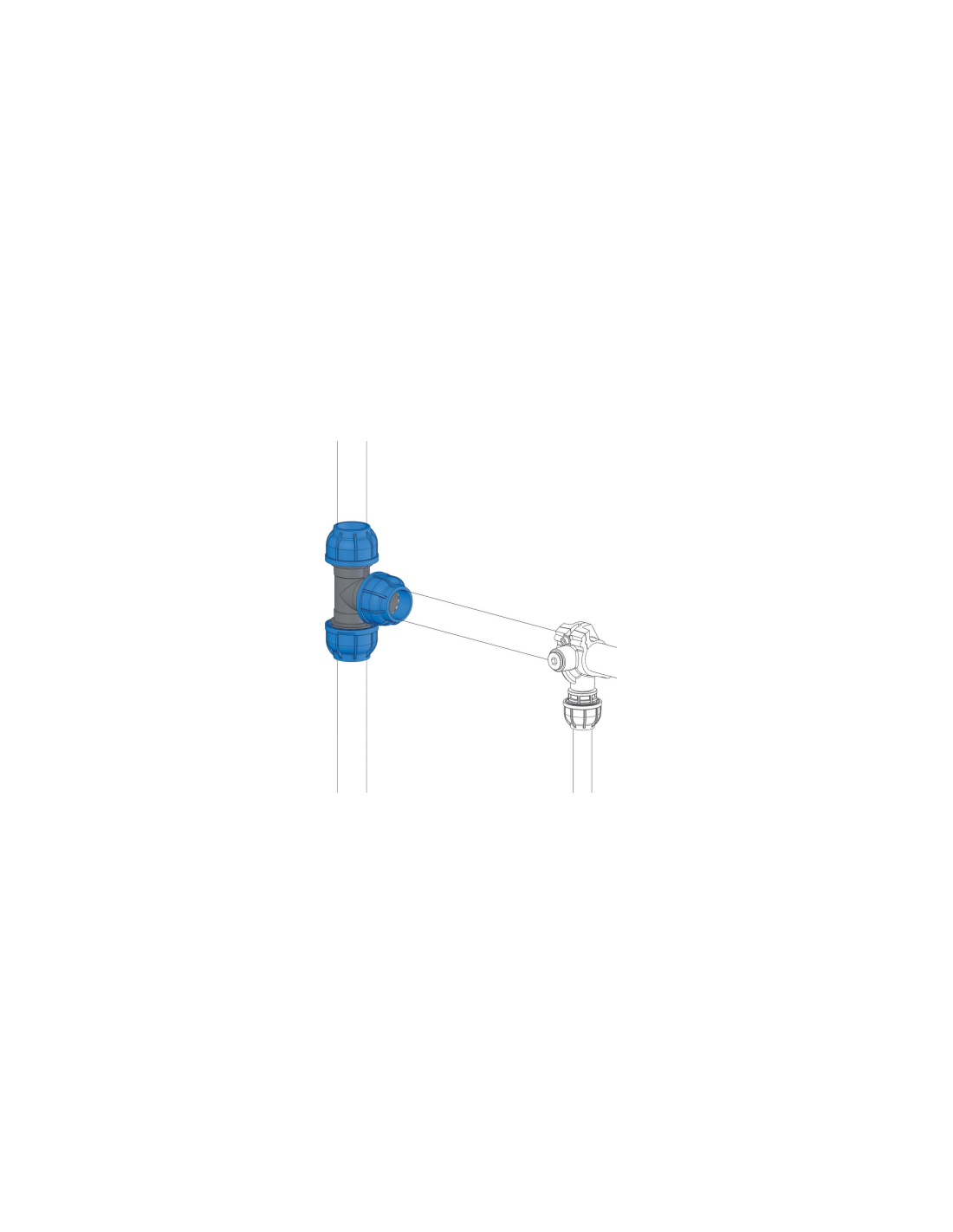

"T" union fitting for 20mm outer diameter tube, body and nut made of nylon. Fitting for pipe branches, with a quick coupling system that guarantees easy assembly and design versatility in networks and installations of compressed air, vacuum and inert gases.


Reference: R214.020.000




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns

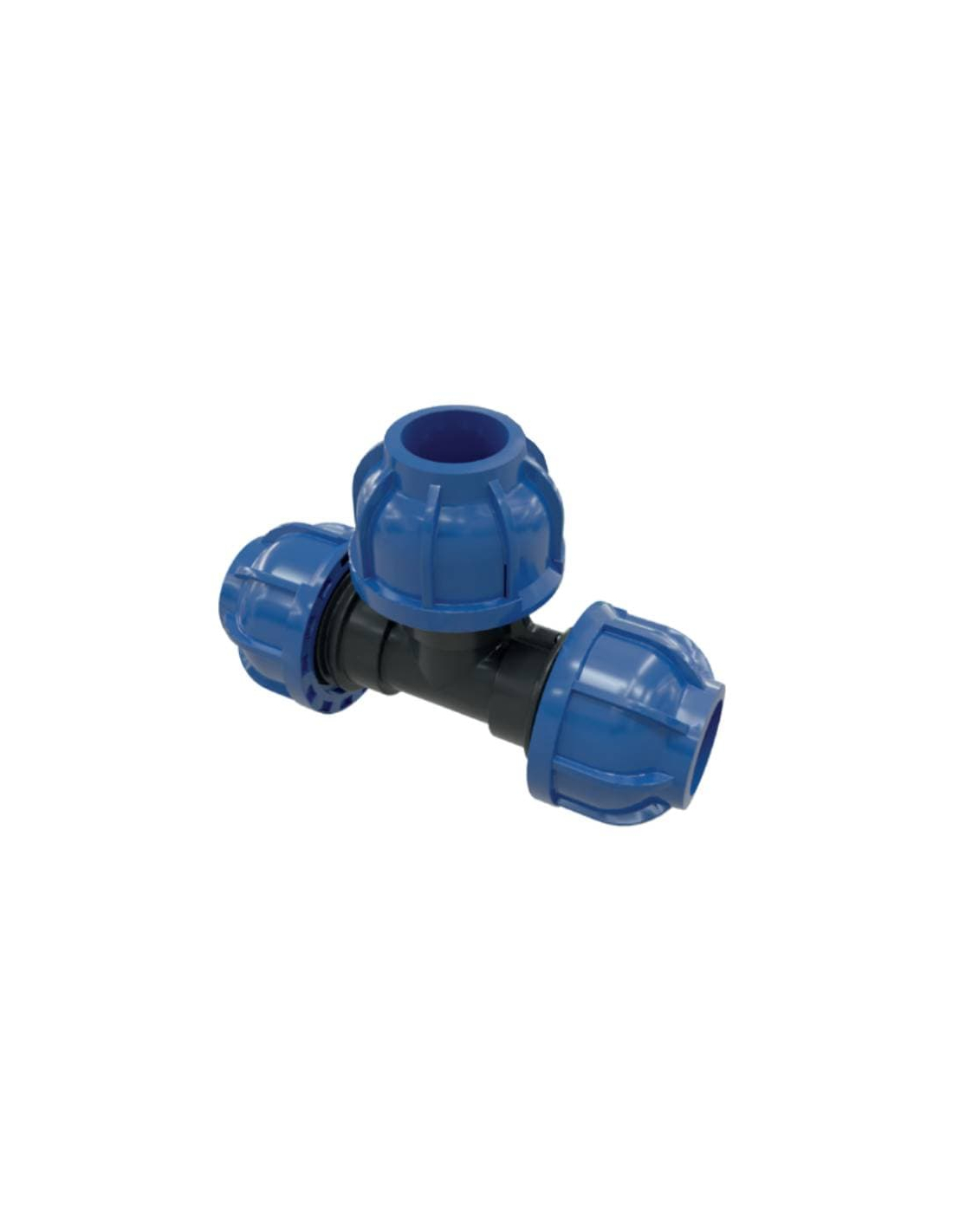

Intermediate bypass fitting for 20mm outer diameter tube, black nylon body and blue nylon nut, NBR O-ring. This type of branch fitting allows a simple and quick union of straight sections of pipes of the same diameter in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need for welding or tightening. the ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: R214.020.000
  • Diameter: 20mm
  • Fitting type: "T"
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Clamping ring: AISI 301 Stainless steel
  • Retention: NBR
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 44mm; B = 109.50mm ; C= 76.50mm
  • Weight: 89g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.








Material for professional use, install in compliance with the regulations in force at the installation site.
