Fitting for T downspout diameter 50mm downpipe 32mm - Sicomat

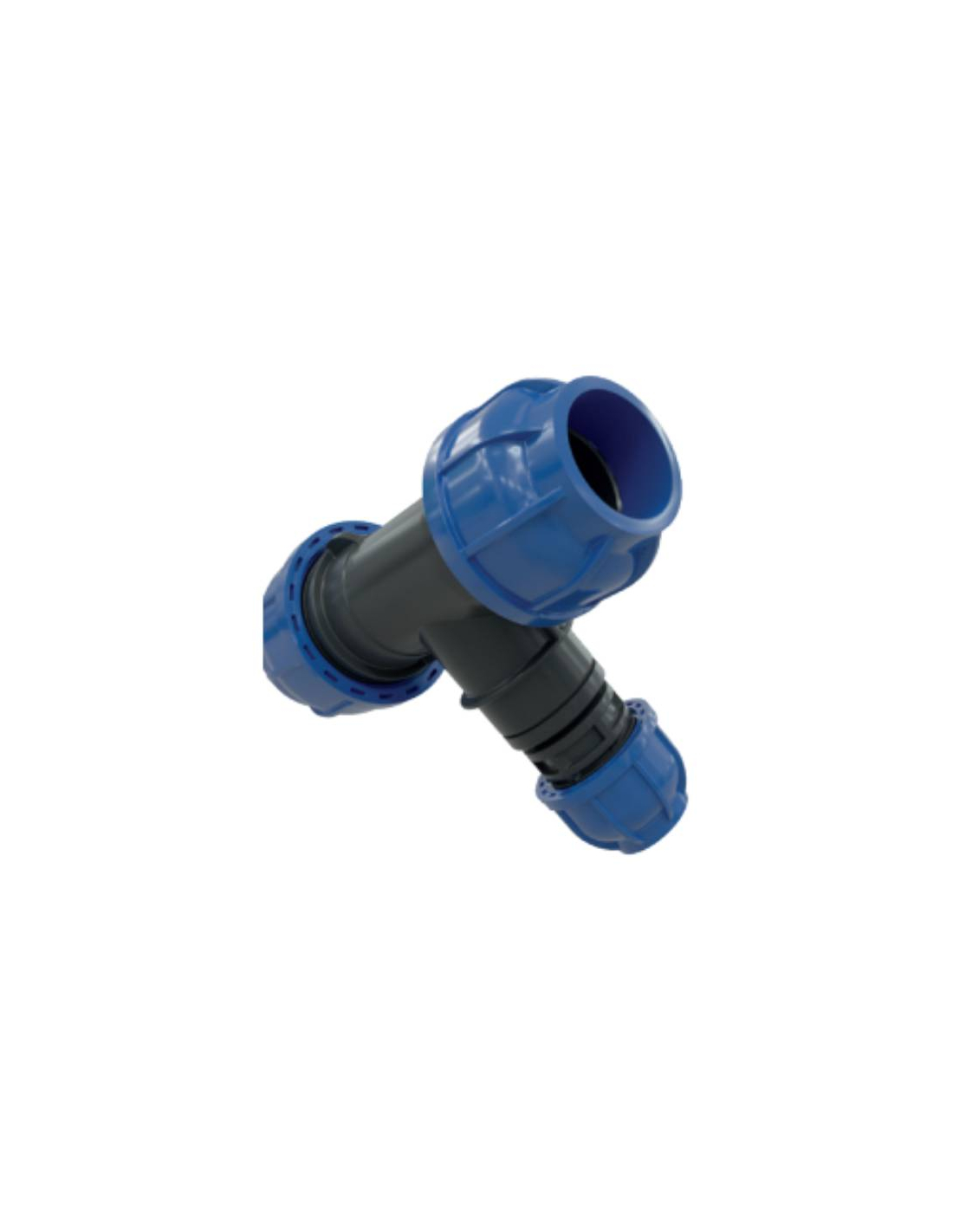

"T" fitting for downpipes with condensate separation system, for tube with external diameter 50mm and downpipe diameter 32mm. Black nylon body and blue nylon nut, NBR O-ring. This type of fitting has an anti-condensation design for creating downpipes in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon. Fitting with quick coupling system that guarantees easy assembly. Maximum working pressure 12.5 bar .


This type of condensate drain fitting is an alternative to the traditional gooseneck, it is a quick and economical solution. Its particular internal geometry allows its application and installation in both horizontal and vertical positions.





Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Reference: R247.050.032
• Pipe diameter: 50mm
• Downspout diameter: 32mm
• Fitting type: "T"
• Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
• Clamping ring: AISI 301 Stainless steel
• Retention: NBR
• Application: Compressed air / Vacuum / Nitrogen
• Maximum pressure conditions: -0.8 to 12.5bar
• Temperature conditions: -20ºC to +70ºC
• Dimensions: A = 86.5mm; B = 225mm ; C= 62mm; D=187mm
• Weight: 700g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the installation site.
