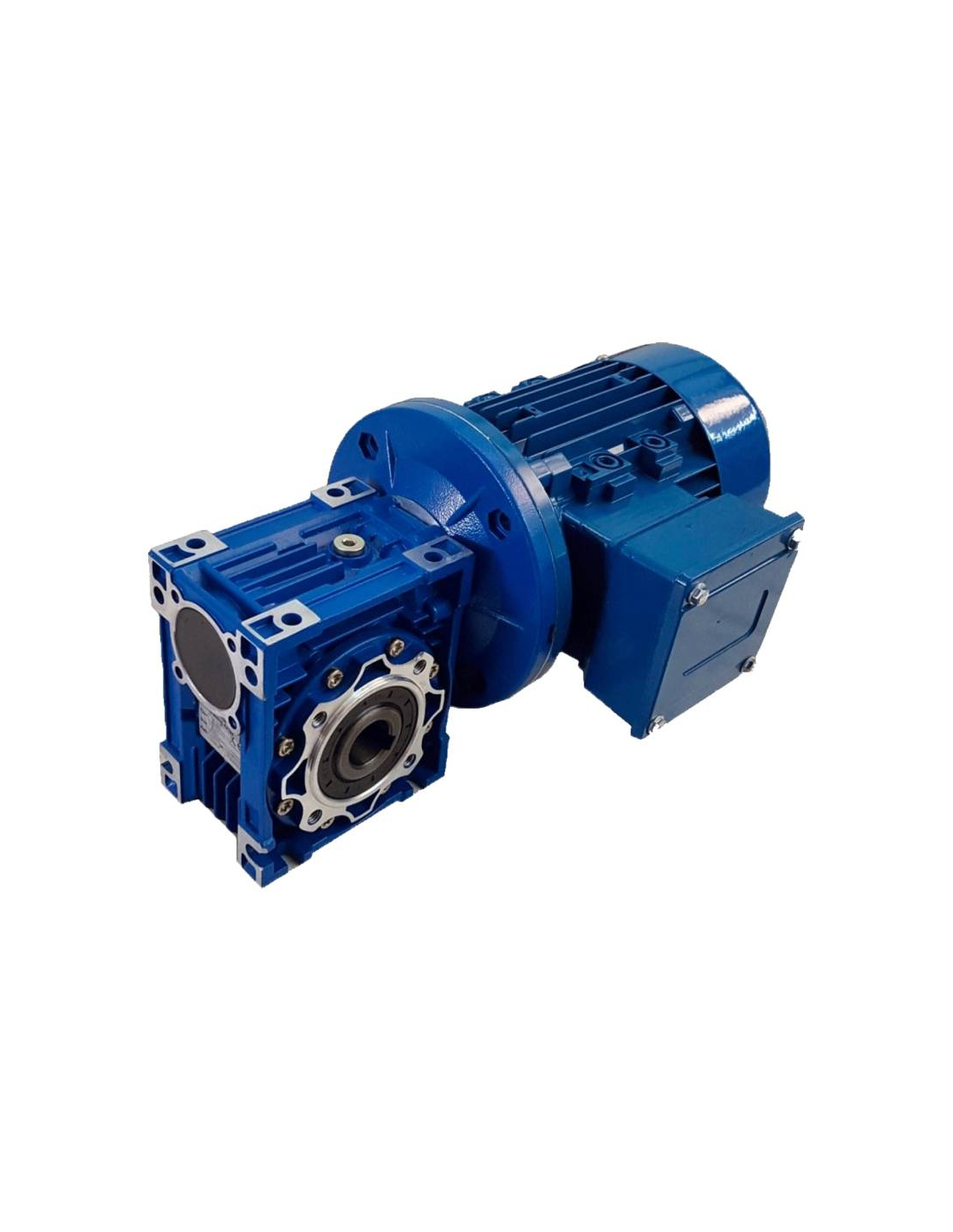

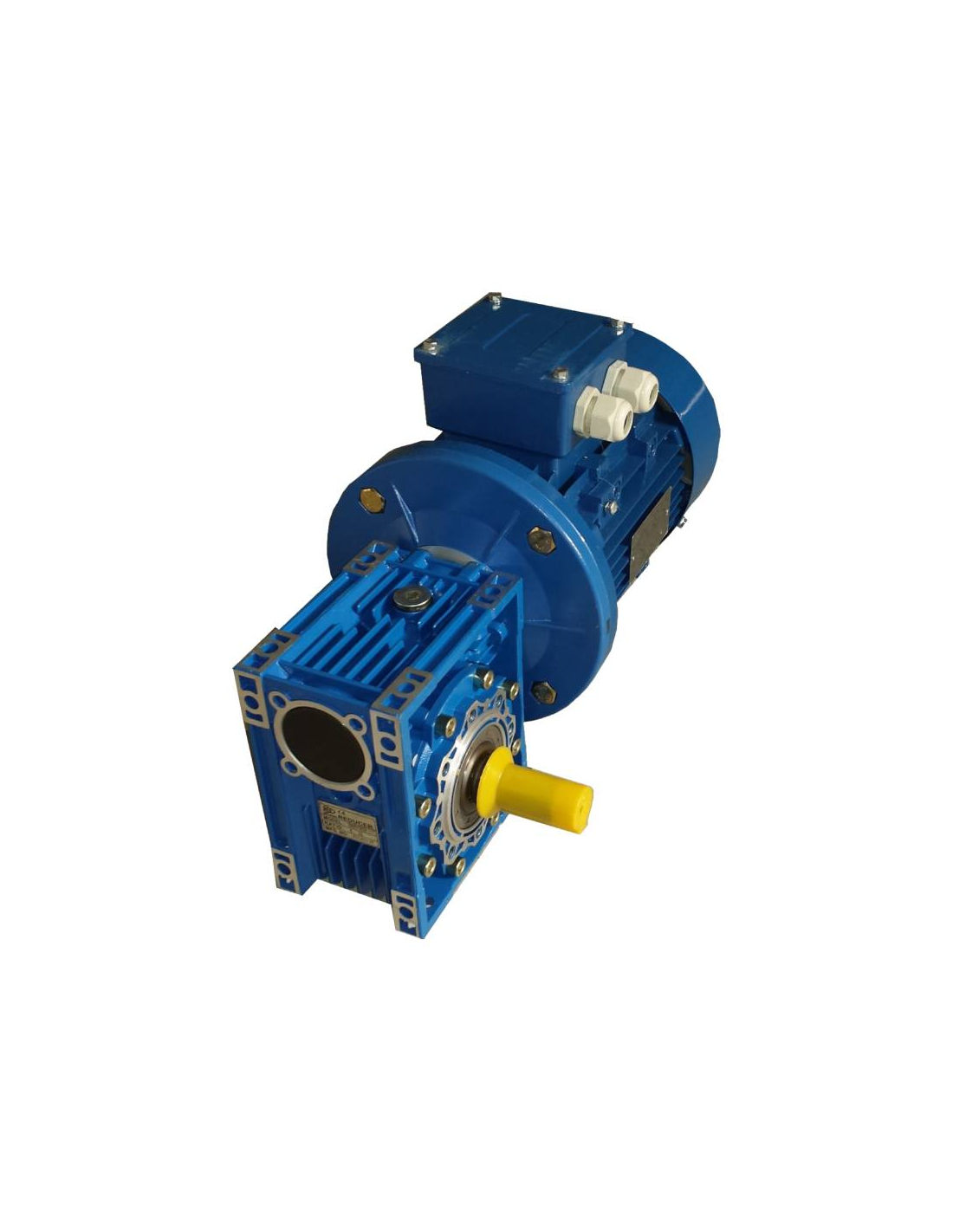

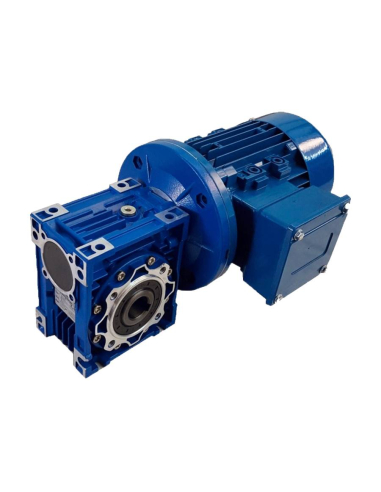

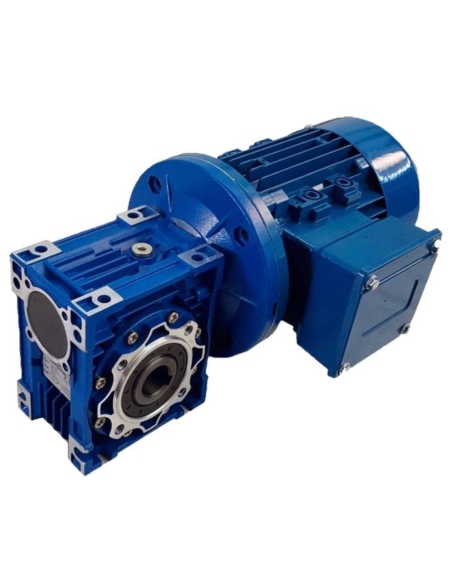

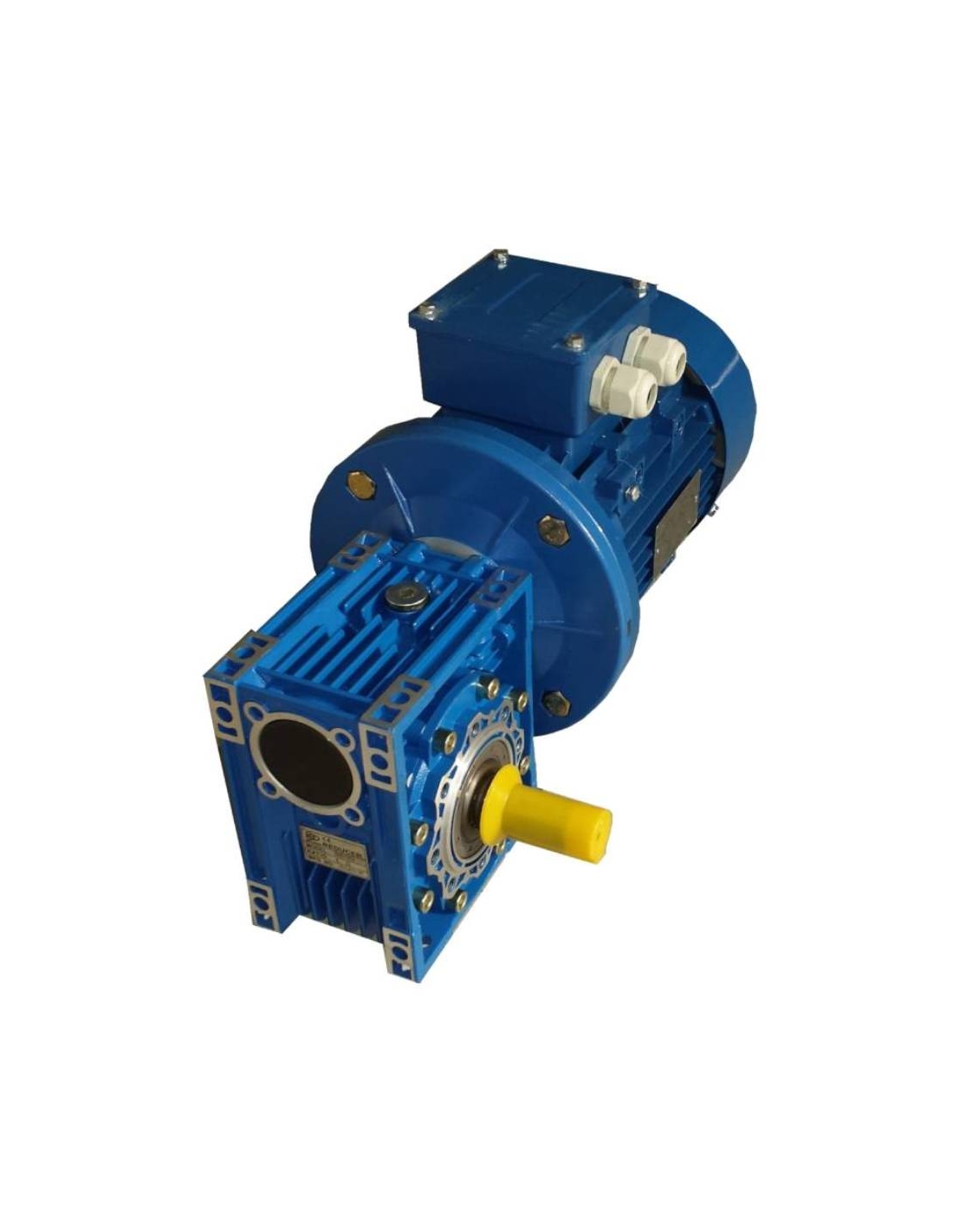

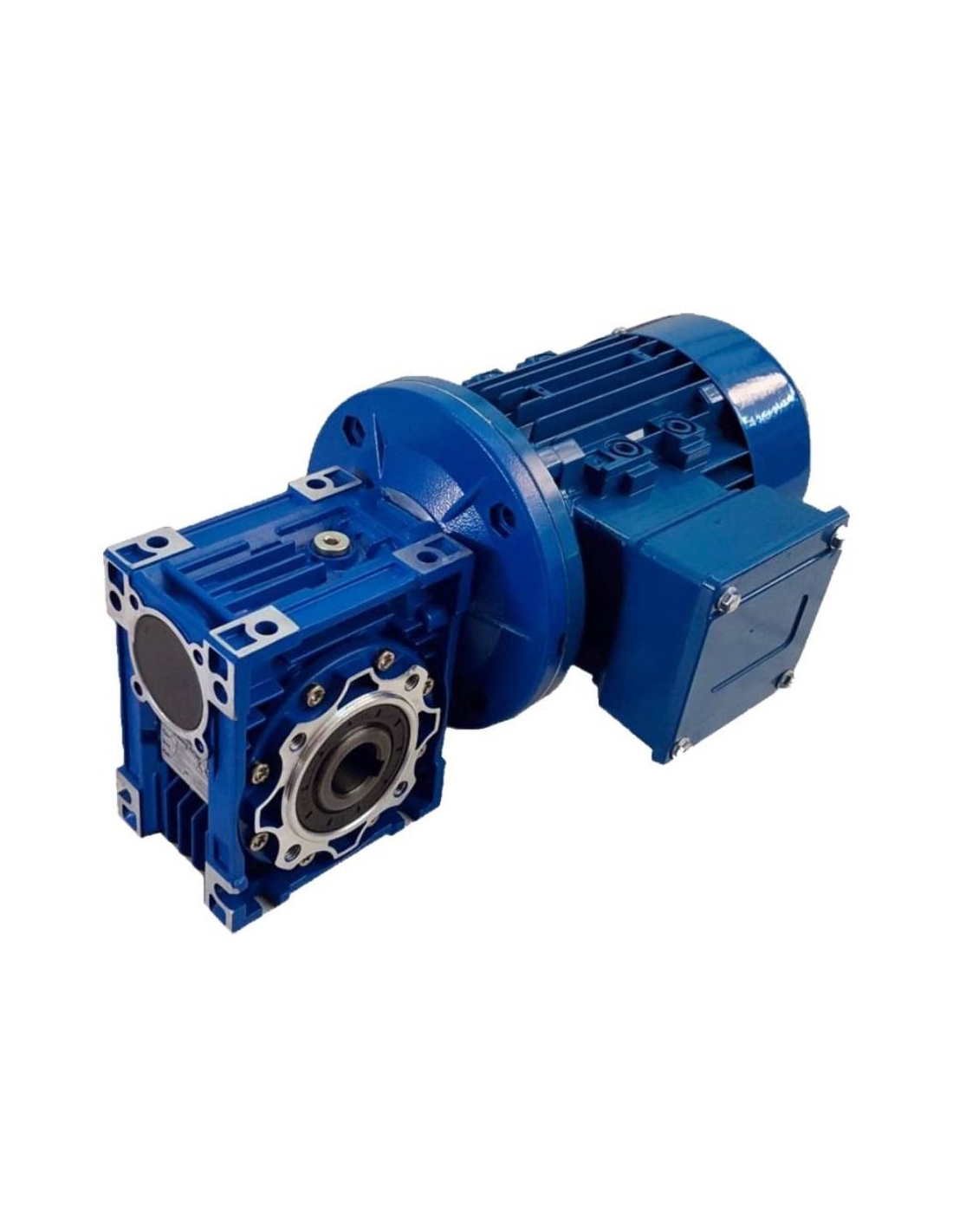

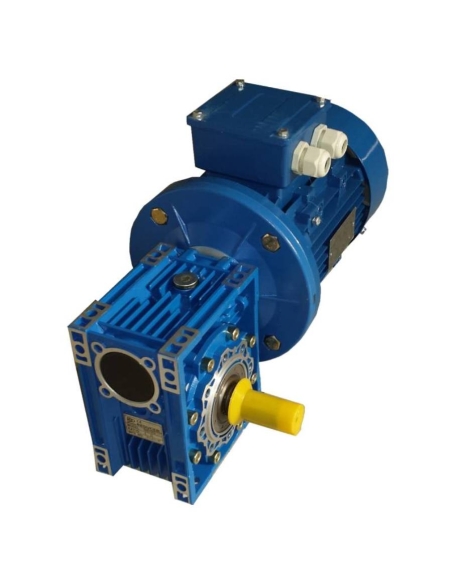

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac 1500 rpm ratio 100 T-50 (14 rpm )

€176.77 Tax included

148.55 tax excl.

Instead of €191.10

PK-9MR0500018014

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B5, reducer size 50 with reduction ratio I:100 that allows output turns of approximately 14 rpm .

  • Motor: three-phase 0.18Kw 230/400Vac 1500 rpm
  • Reducer : size 50 I:100
  • For output shaft: Ø11mm





Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

1 question about the product
Privacy
Shipments
Returns


Three-phase Gear motor 0.18kW 0.25HP 230/400Vac, reducer size 50 with reduction ratio I:100 that allows an output of approximately 14 rpm at its output.

Engine technical characteristics:

  • Three-phase motor.
  • Nominal voltage: 230/400Vac 50/60Hz.
  • Nominal power: 0.18kW 0.25HP.
  • Revolutions: 1400 rpm .
  • Flanges: B5

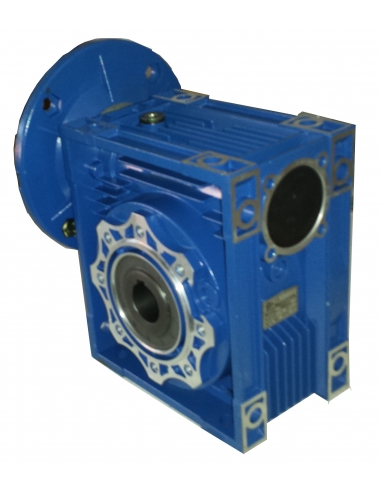

Technical characteristics of the reducer:

  • Reducer type: crown worm.
  • Reducer size: 50.
  • Reduction ratio: 100
  • Final turns: 14 rpm .
  • Output torque: 8.4 Nm.
  • Service factor: 3.3
  • For output shaft: Ø11mm

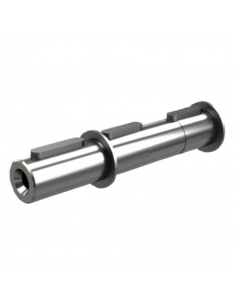

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site

Questions

Question
Bonjour, j'ai trouvé chez vous un motoréducteur asynchrone triphasé 0,18 kW avec réducteur à vis sans fin taille 50 avec une vitesse de sortie 14 tr/mn. C'est un moteur 6 polos à 1500 tr/mn. J'ai besoin d'une vitesse 7 tr/mn. Peut on monter un moteur 8 polos à 750 tr/mn sur ce réducteur ?

Merci de votre réponse
Answer
Bonjour.

Lors du choix d'un moteur et d'un motoréducteur, il est nécessaire de déterminer différents aspects, non seulement qu'ils peuvent être installés mécaniquement, mais aussi : la charge à laquelle il doit être soumis, travail léger ou lourd, heures de fonctionnement, nombre de démarrages et d'arrêts par heure, changements de rotation et arrêts constants... toutes ces données influencent le facteur de service, toutes ces données influencent le facteur de service, si nous ne choisissons pas le bon ensemble, il ne résistera pas aux conditions de travail et se cassera, à l'intérieur des motoréducteurs il y a une section d'annexes qui explique comment calculer le réducteur en fonction de la puissance du moteur, de la taille à sélectionner, des révolutions finales et du facteur de service. plus le facteur de service est élevé, moins il y a de risque de détérioration de l'ensemble.

Cordialement
Luc on 09/19/2024 11:21:07

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 3000 rpm ratio 7.5 T30 (373 rpm )

Generico-MOT
PK-9MR030002572
€141.09 (€118.56 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 30 with reduction ratio I:7.5 that allows output revolutions of approximately 373 rpm . Motor: three-phase 0.25Kw 230/400Vac 3000 rpm Reducer : size 30 I:7.5 For output shaft: Ø14mm Representative image for illustrative purposes, the item supplied will correspond to the...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 1500 rpm ratio 30 T40 (47 rpm )

Generico-MOT
PK-9MR0400025304
€160.98 (€135.28 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 40 with reduction ratio I:30 that allows output revolutions of approximately 47 rpm . Motor: three-phase 0.25Kw 230/400Vac 1500 rpm Reducer : size 40 I:30 For output shaft: Ø18 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.37kW 0.5HP 230/400Vac 1500 rpm ratio 25 T50 (56 rpm )

Generico-MOT
PK-9MR0500037254
€186.71 (€156.90 tax excl.)
Three-phase Gear motor 0.37kw 0.5HP 230/400Vac, reducer size 50 with reduction ratio I:25 that allows output turns of approximately 56 rpm . Motor: three-phase 0.37Kw 230/400Vac 1500rpm B5 Reducer : size 50 I:25. Output laps: 56 For output shaft: Ø25mm Representative image for illustrative purposes, the item supplied will correspond to the...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 1500 rpm ratio 20 T40 (70 rpm )

Generico-MOT
PK-9MR0400025204
€160.98 (€135.28 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 40 with reduction ratio I:20 that allows output revolutions of approximately 70 rpm . Motor: three-phase 0.25Kw 230/400Vac 1500 rpm Reducer : size 40 I:20 For output shaft: Ø18 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.55kW 0.75HP 230/400Vac 1500 rpm ratio 40 T63 (35rpm)

Generico-MOT
PK-9MR0630055404
€240.25 (€201.89 tax excl.)
Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 63 with reduction ratio I:40 that allows output turns of approximately 35rpm. Motor: three-phase 0.55Kw 230/400Vac 1500rpm Reducer : size 63 I:40. Output laps: 35 For output shaft: Ø25mm Representative image for illustrative purposes, the item supplied will correspond to the indicated...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 1500 rpm ratio 40 T40 (35 rpm )

Generico-MOT
PK-9MR0400025404
€160.98 (€135.28 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 40 with reduction ratio I:40 that allows output revolutions of approximately 35 rpm . Motor: three-phase 0.25Kw 230/400Vac 1500 rpm Reducer : size 40 I:40 For output shaft: Ø18 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac 1500 rpm ratio 60 T-40 (24 rpm )

Generico-MOT
PK-9MR0400018604
€150.95 (€126.85 tax excl.)
Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B14, reducer size 40 with reduction ratio I:60 that allows output revolutions of approximately 24 rpm . Motor: three-phase 0.18Kw 230/400Vac 1500 rpm Reducer : size 40 I:60 For output shaft: Ø18mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 3000 rpm ratio 15 T30 (186 rpm )

Generico-MOT
PK-9MR0300025152
€141.09 (€118.56 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 30 with reduction ratio I:15 that allows output revolutions of approximately 186 rpm . Motor: three-phase 0.25Kw 230/400Vac 3000 rpm Reducer : size 30 I:15 For output shaft: Ø14mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac 1500 rpm ratio 20 T30 (70 rpm )

Generico-MOT
PK-9MR0300018204
€138.72 (€116.57 tax excl.)
Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B14, reducer size 30 with reduction ratio I:20 that allows output revolutions of approximately 70 rpm . Motor: three-phase 0.18Kw 230/400Vac 1500 rpm Reducer : size 30 I:20 For output shaft: Ø14mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.55kW 0.75HP 230/400Vac 1500 rpm ratio 30 T50 (47rpm)

Generico-MOT
PK-9MR0500055304
€208.42 (€175.14 tax excl.)
Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 50 with reduction ratio I:30 that allows output turns of approximately 47rpm. Motor: three-phase 0.55Kw 230/400Vac 1500rpm Reducer : size 50 I:30. Output laps: 47 For output shaft: Ø25mm Representative image for illustrative purposes, the item supplied will correspond to the indicated...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.37kW 0.5HP 230/400Vac 1500 rpm ratio 100 T63 (14rpm)

Generico-MOT
PK-9MR0630037014
€222.65 (€187.10 tax excl.)
Three-phase Gear motor 0.37kw 0.5HP 230/400Vac, reducer size 63 with reduction ratio I:100 that allows output turns of approximately 14 rpm . Motor: three-phase 0.37Kw 230/400Vac 1500rpm Reducer : size 63 I:100. Output laps: 14 For output shaft: Ø25mm Representative image for illustrative purposes, the item supplied will correspond to the...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.55kW 0.75HP 230/400Vac 3000 rpm ratio 10 T40 (280rpm)

Generico-MOT
PK-9MR0400055102
€169.65 (€142.56 tax excl.)
Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 40 with reduction ratio I:10 that allows output turns of approximately 280rpm. Motor: three-phase 0.55Kw 230/400Vac 3000rpm Reducer : size 40 I:10. Output turns: 280 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 1500 rpm ratio 15 T40 (94 rpm )

Generico-MOT
PK-9MR0400025154
€160.98 (€135.28 tax excl.)
Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B14, reducer size 40 with reduction ratio I:15 that allows output revolutions of approximately 94 rpm . Motor: three-phase 0.25Kw 230/400Vac 1500 rpm Reducer : size 40 I:15 For output shaft: Ø18 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.37kW 0.5HP 230/400Vac 1500 rpm ratio 25 T40 (56 rpm )

Generico-MOT
PK-9MR0400037254
€161.59 (€135.79 tax excl.)
Three-phase Gear motor 0.37kw 0.5HP 230/400Vac, reducer size 40 with reduction ratio I:25 that allows output turns of approximately 56rpm. Motor: three-phase 0.37Kw 230/400Vac 1500rpm Reducer : size 40 I:25. Output laps: 56 For output shaft: Ø18mm Representative image for illustrative purposes, the item supplied will correspond to the indicated...
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac 1500 rpm ratio 50 T-40 (28 rpm )

Generico-MOT
PK-9MR0400018504
€150.95 (€126.85 tax excl.)
Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B14, reducer size 40 with reduction ratio I:50 that allows output revolutions of approximately 28 rpm . Motor: three-phase 0.18Kw 230/400Vac 1500 rpm Reducer : size 40 I:50 For output shaft: Ø18mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2
  • Pack
Three-phase geared motors

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac 1500 rpm ratio 25 T30 (56 rpm )

Generico-MOT
PK-9MR0300018254
€138.72 (€116.57 tax excl.)
Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B14, reducer size 30 with reduction ratio I:25 that allows output revolutions of approximately 56 rpm . Motor: three-phase 0.18Kw 230/400Vac 1500 rpm Reducer : size 30 I:25 For output shaft: Ø14mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

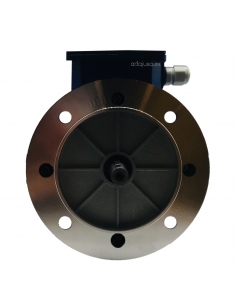

Three-phase motor 1.5Kw 2CV 230/400V 1500 rpm IE3 Flange B5 Three-phase motor 1.5Kw 2CV 230/400V 1500 rpm IE3 Flange B5 2
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

Three-phase motor 1.5Kw 2HP 230/400V 1500 rpm IE3 Flange B5

Generico-GAR
ALH90L4B54E3
€241.13 (€202.63 tax excl.)
Three-phase electric motor 1.5kW (2HP) 230/400V 1500 rpm (4 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations. High energy efficiency, category IE3. Voltage: 230/400Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm. Flange: B5. Shaft diameter: 24mm. Flange diameter: 200mm Power: 1,5Kw - 2HP. Size: 90. Energy...
2
  • Pack
Three-phase geared motors

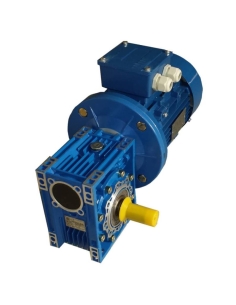

Three-phase gear motor 0.55kW 0.75HP 230/400Vac 1500 rpm ratio 10 T50 (140rpm)
