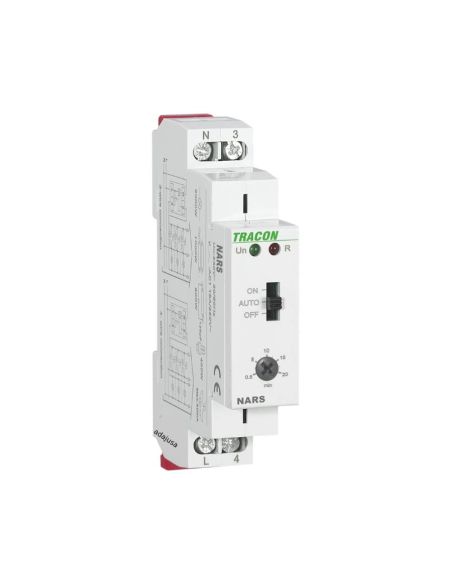

Staircase minute Timer

Staircase minute Timer with selectable time setting between 30 seconds and 20 minutes. Its main application is to control the lighting turn-on time in hallways, entrances, stairs, rooms or fan timers in bathrooms; Its operating mode is based on turning on the lighting after receiving an external pulse and then turning it off once the previously pre-established time has elapsed.

It also allows, using a switch located on the front, to select the lighting operating mode: permanent on or permanent off. These functions are useful when continuous power on for a long period of time is required, for example for maintenance work, or for permanent or prolonged power off.





This timer allows the connection of a maximum of 50 pushbuttons, and includes light status indicators. Valid for both 3 and 4 wire installations.

Technical characteristics:

• Manufacturer/Supplier: Tracon
• Reference: NARS
• Supply voltage: 220 - 240Vac
• Rated insulation voltage (Ui): 500V
• Resistive load contact capacity (cosϕ = 1): 16 A
• Inductive load contact capacity (cosϕ =0.6): 1.7 A
• Maximum load with incandescent lamp: 2000W
• Maximum load with fluorescent lamp: 400 VA
• Maximum LED load: 400W
• Timing range: 0.5 - 20min (0.5 / 5 / 10 / 15 / 20 minutes)
• Maximum number of buttons: 50
• Circuit push button length: Max. 250m
• Installation: 3 wires / 4 wires
• LED status indicator
• Operating temperature: -10ºC to +55ºC
• Mounting: DIN Rail
• Protection grade: IP20
• Regulations: EN 60669-2, EN 60730

Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.
