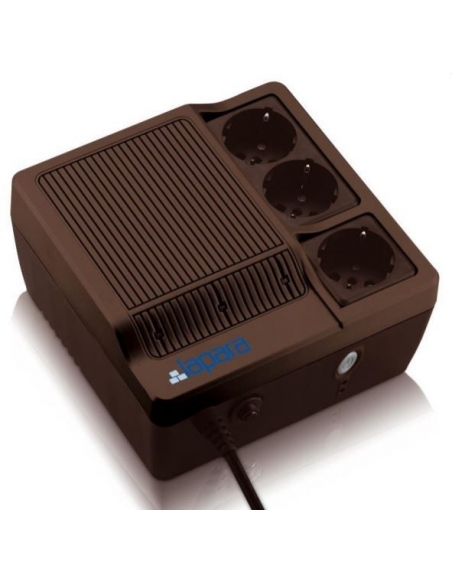

UPS 600VA off-line for home or small office use with built-in microprocessor for increased reliability. Compact size and easy installation with 3 schuko outlets makes it ideal for home use.
Compact size uninterruptible power supply (UPS), can be fixed on the wall, very easy to install (Plug & Play) and easy to use. Automatic restart when power is restored, it also has 3 schuko sockets.
As main features we can outline:
- Output voltage regulation: ±10%
- Protection type: Short circuit, overload and overheating
- Output sockets: 3 schuko sockets
- Compact design
- Microprocessor control
- Automatic restart when power is restored
- Warranty provided by the manufacturer (*)
Technical characteristics:
- Manufacturer/Importer Lapara
- Model: LA-SCD-600
- Voltage: 220/230/240 Vac
- Maximum power: 600VA - 300W
- Frequency: 50Hz
- AC output voltage regulation (Battery mode): ±10%
- Output frequency range (Battery Mode): 50hz±1hz
- Transfer time: Typical 2-6 ms, 10 ms
- Waveform (Battery Mode): Modified Sine Wave
- Battery type and quantity: 1 x 12V 5Ah
- Typical recharge time: 8 hours at 90% of capacity
- Sockets: 3 schuko type
- Indicators: LED indicators
- Full protection against: overcharge, over-discharge and overload protection
- Alarm
- Battery mode: sounding every 10 seconds
- Low battery: sounding every second
- Fault: Sounding continuously
- Dimensions: 166x161x86.7mm
- Net weight: 2.6 Kg.
- Humidity: 0-90% relative humidity (non-condensing)
- Working temperature: 0..40ºC
- Noise level
(*) On-site warranty offered by the manufacturer, only for the Spanish peninsular territory.
