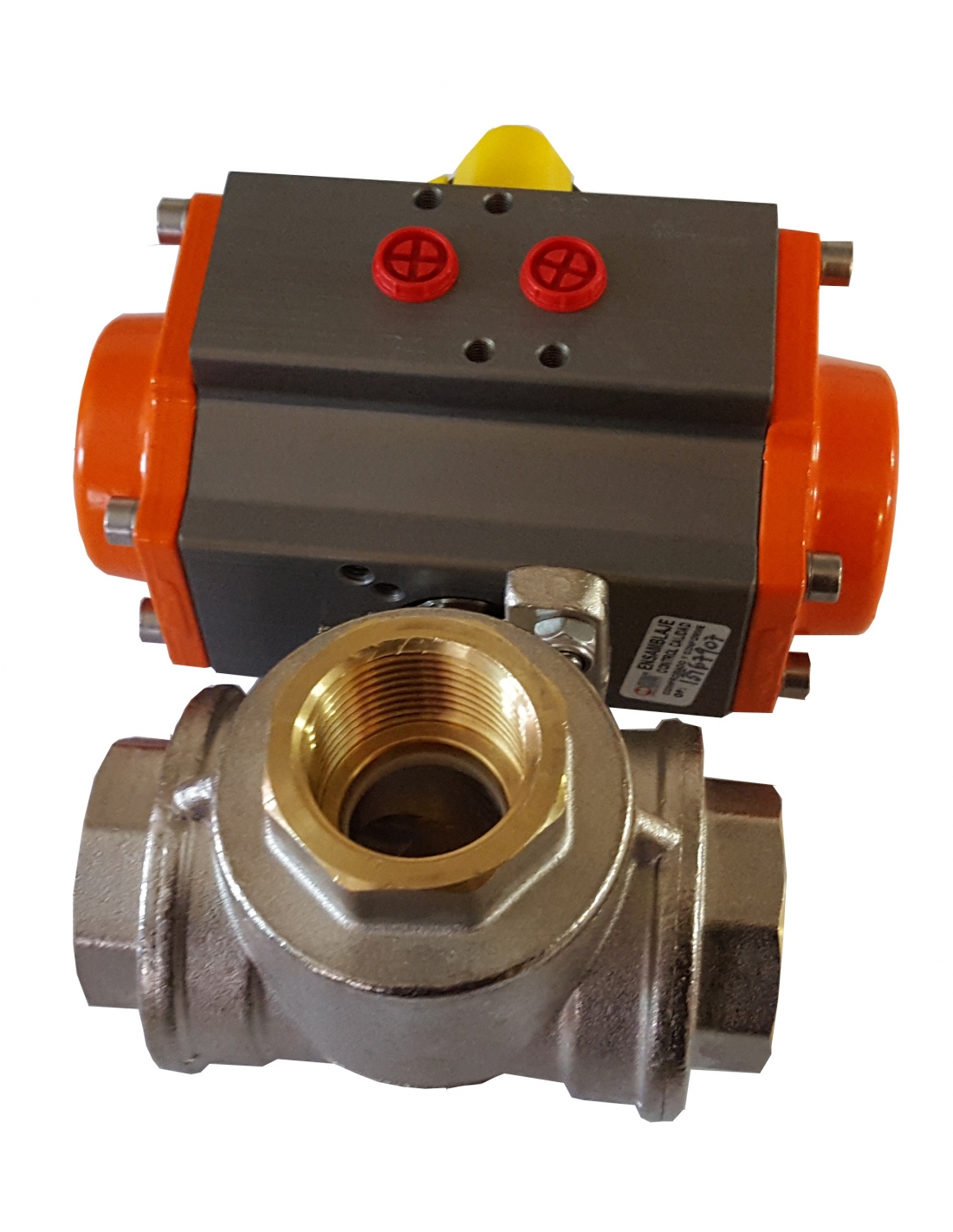

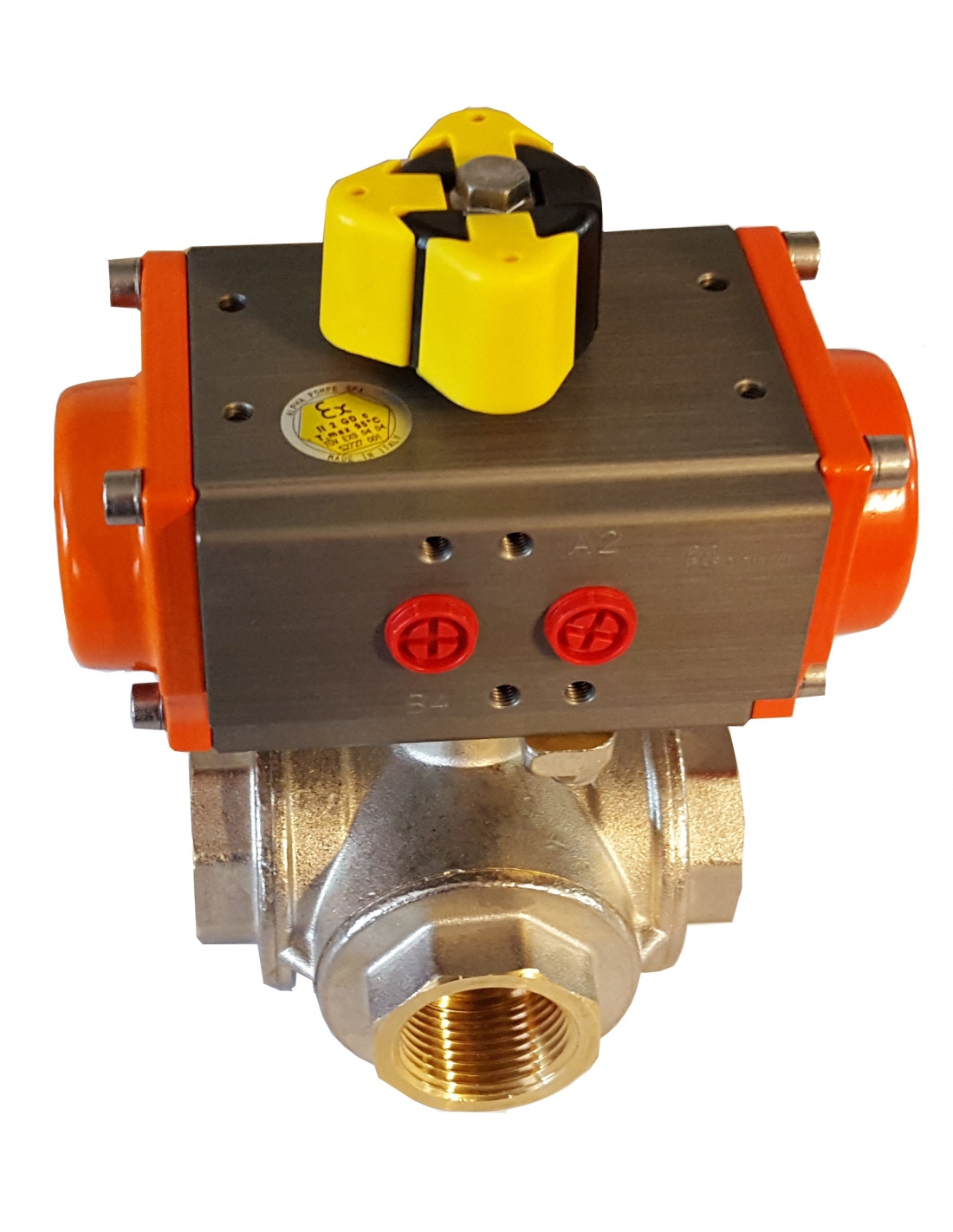

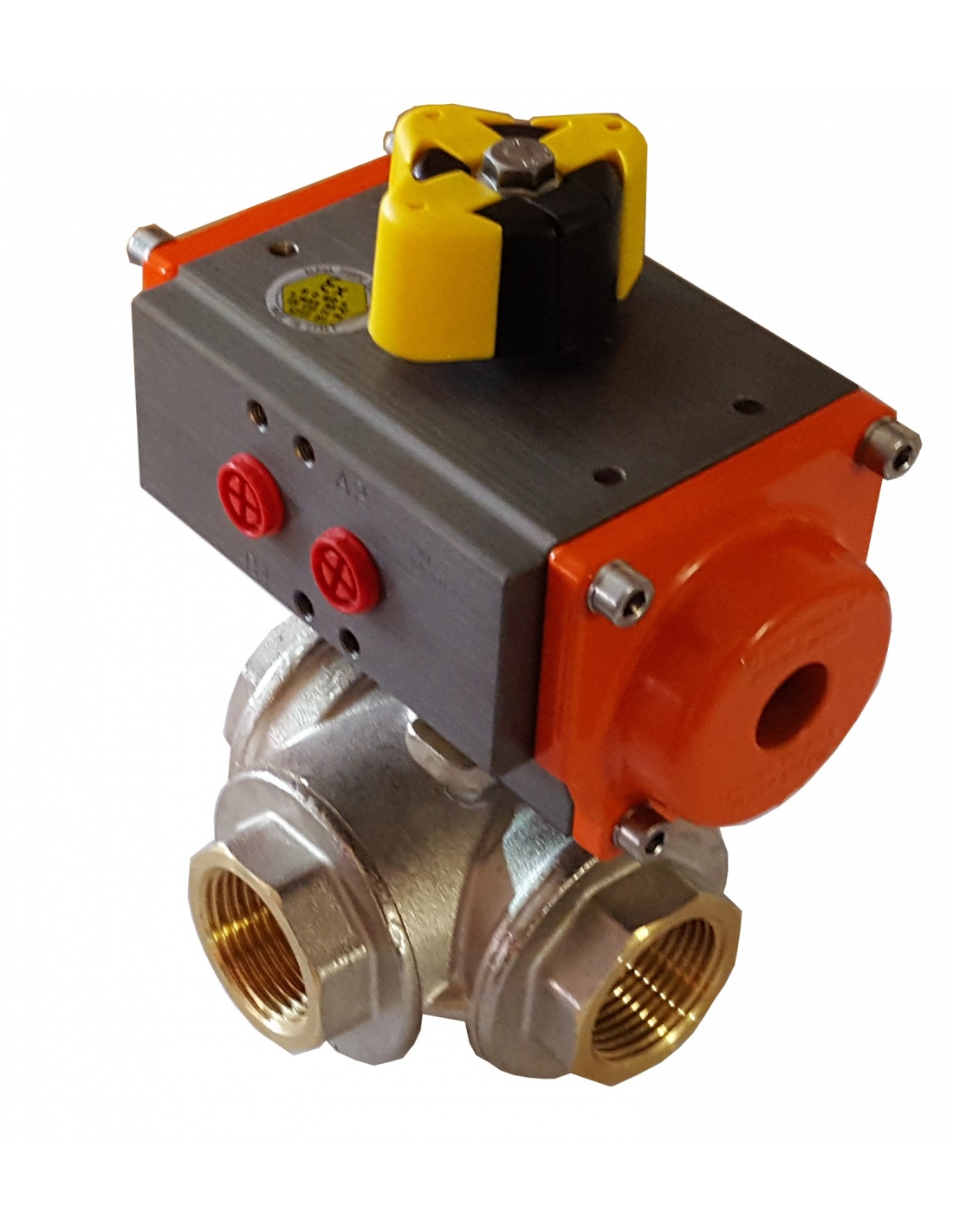

Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work

Name: Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work
Brand: Metal Work
SKU: VB3L2IA025050
Price: 351.3118 EUR
Availability: PreOrder

€351.31 Tax included

€295.22 tax excl.

Stainless steel 1" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: Z33VB3L2IA025050D/ W0900300084

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1" ball valve, 3 way 2 positions, 3/2, made of stainless steel, with "L" valve configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 2 to 1 remaining the 3 closed; in the other position, the passage is allowed from 1 to 3 or 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Technical specifications:

Manufacturer of the assembly: Metal Work.
Manufacturer's reference: Z33VB3L2IA025050D
Type of actuator: Ø50 double acting pneumatic.
Valve type: 3 way 2 positions (3/2).
Valve configuration: "L" shaped.
Thread type: G 1" female.
Valve body: stainless steel AISI 316
Ball: stainless steel
Seals: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Dimensiones actuadores neumaticos con valvulas 3 vías

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.
