Stainless steel T-valve 1/2 3/2-way with pneumatic rotary actuator - Metal Work

€222.89 Tax included

€187.30 tax excl.

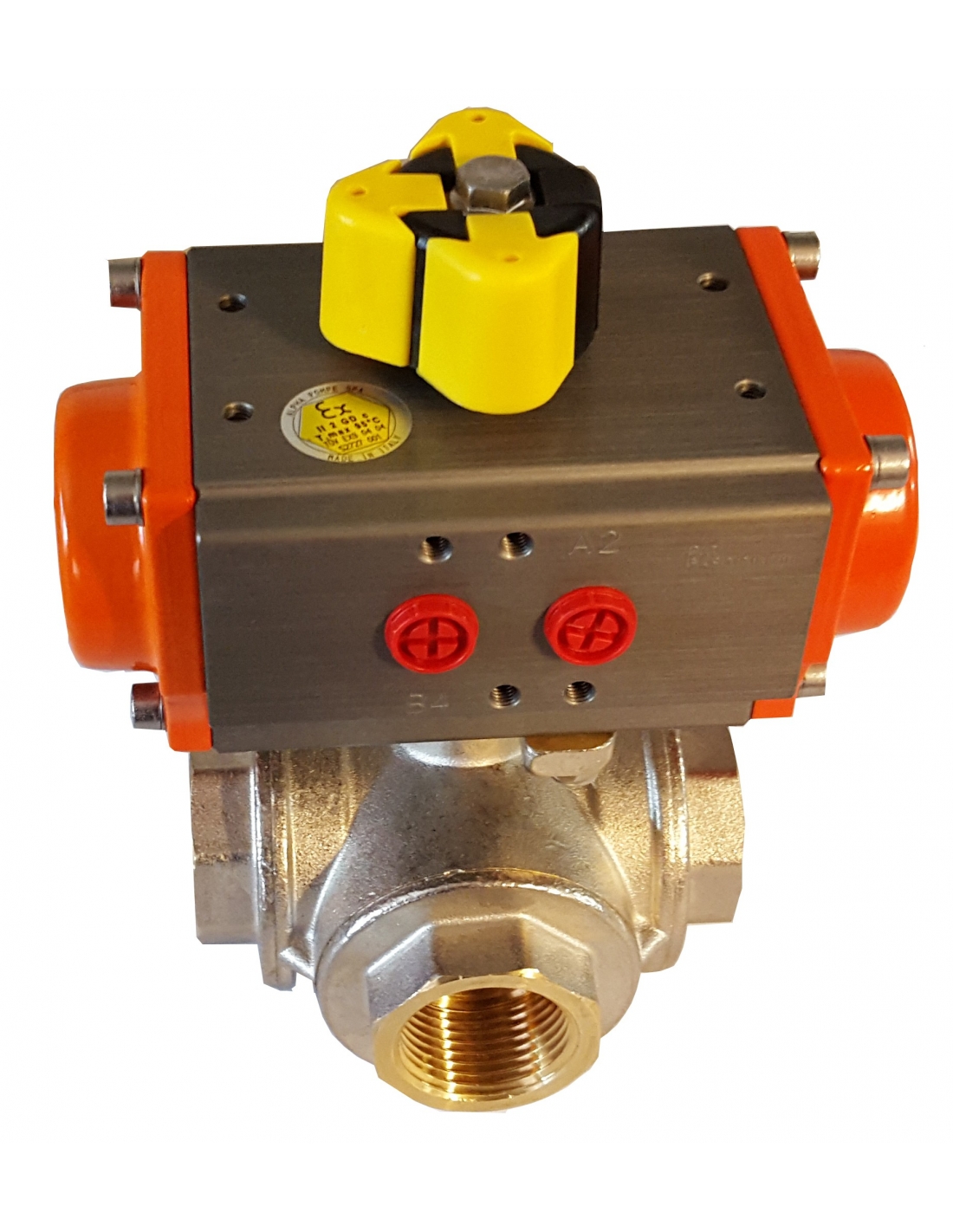

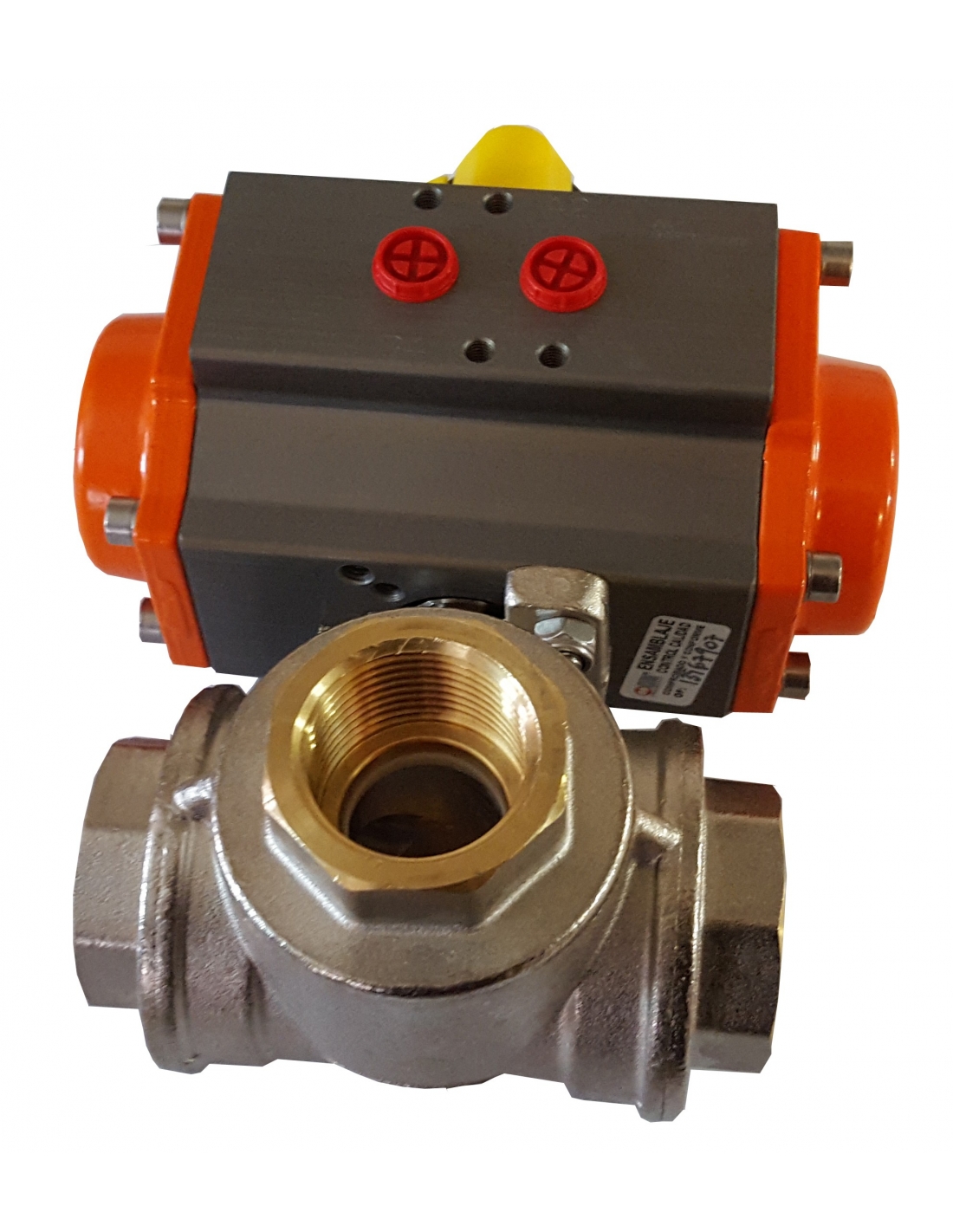

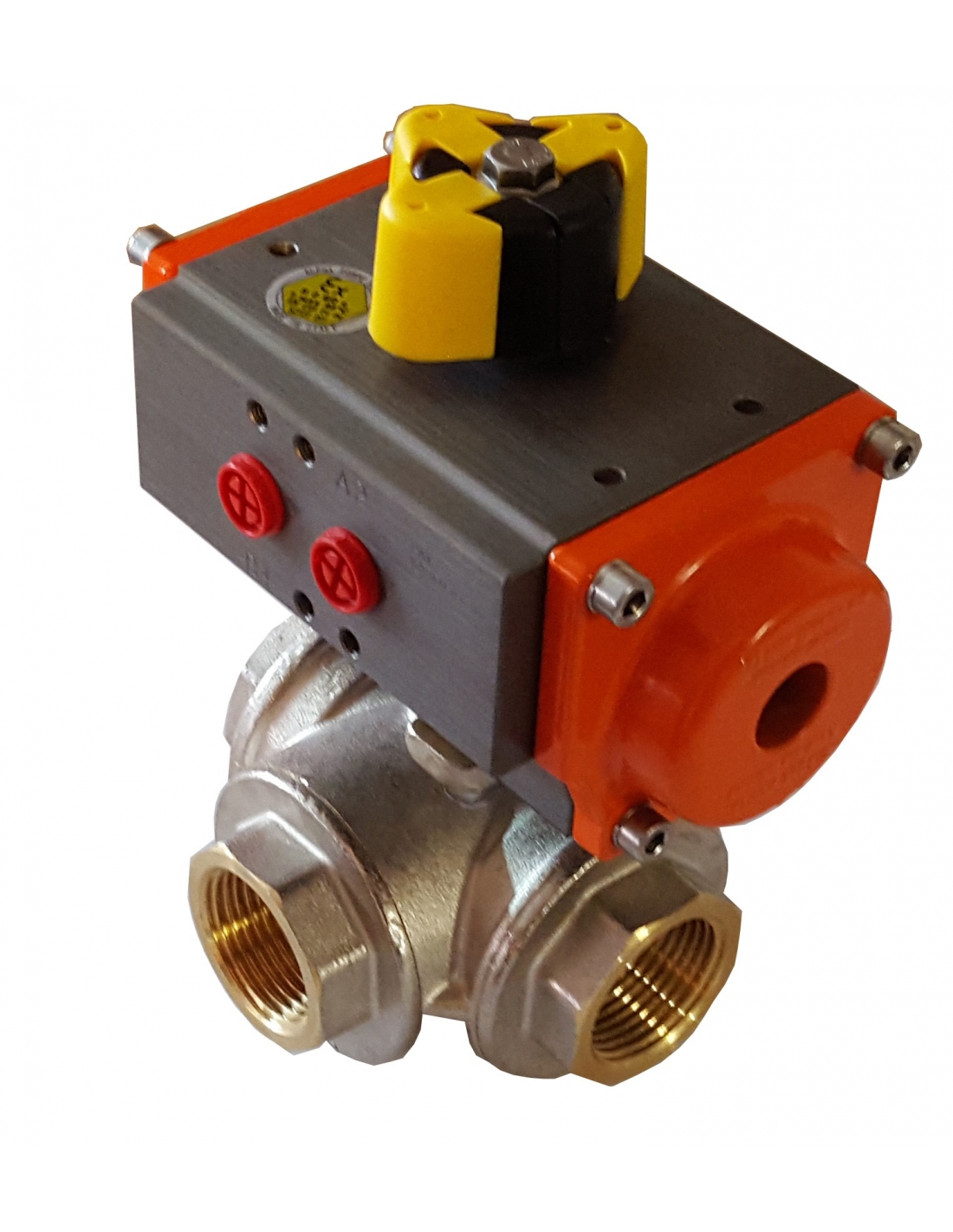

1/2" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3T2IA015032D

Simbolo neumatico actuador con valvula doble efectoPictograma ATEX

Logotipo metal work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/2" of sphere, 3 ways 2 positions, 3/2, made of stainless steel, with configuration and the valve in "T", with pneumatic rotary actuator of double effect. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the tracks.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Specifications:

  • Assembly Manufacturer: Metal Work
  • Manufacturer reference: VB3T2IA015032D
  • Actuator type: Ø32 double pneumatic effect.
  • Valve type: 3 ways 2 positions (3/2).
  • Valve configuration: in "T".
  • Thread Type: G 1/2" Female
  • Valve body: AISI 316 stainless steel
  • Dial: Stainless steel AISI 316
  • Joints: PTFE.
  • Nominal pressure PN: 40 bar
  • Standard: ISO 5211 (direct mounting to the actuator)
  • Temperature: -20ºC to +80ºC
  1. Dimensiones actuadores neumaticos con valvulas 3 vías

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
