Distributor 4 outputs 3/4 female input - Aignep

Name: Distributor 4 outputs 3/4 female input - Aignep
Brand: Aignep
SKU: 9064434124
Price: 25.4898 EUR
Availability: PreOrder

€25.49 Tax included

€21.42 tax excl.

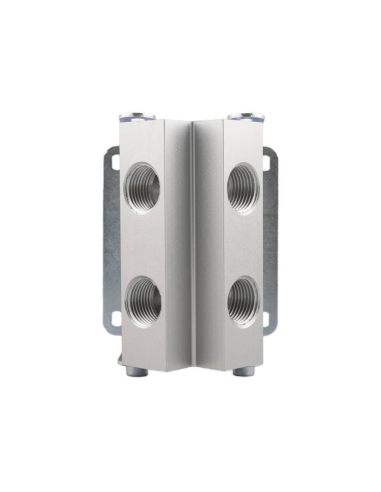

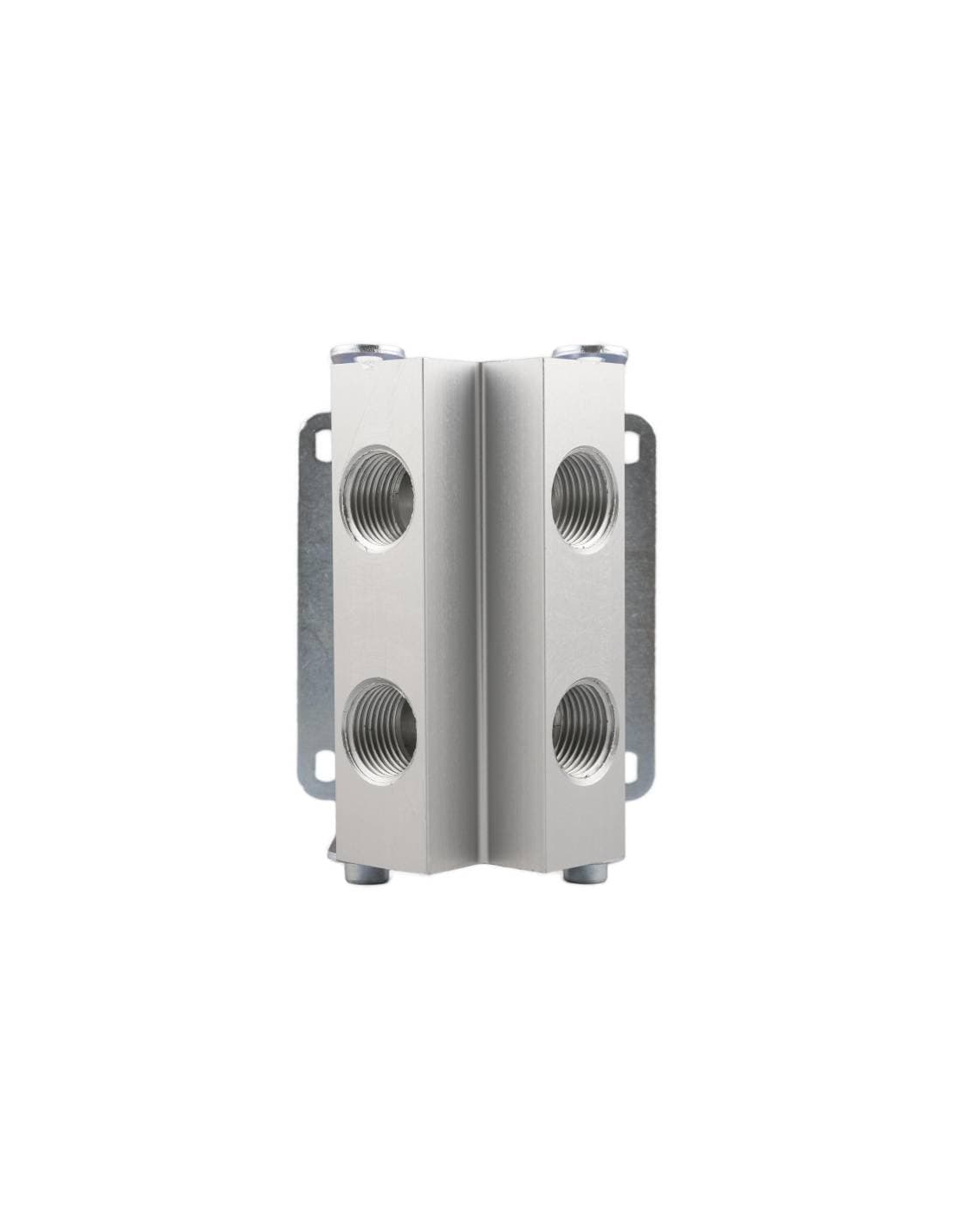

Distributor with four outlets for wall mounting, with 3/4 cylindrical female thread inlet and both outlets with 1/2 cylindrical female thread. This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the connection of machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities.

Reference: 90644 3/4 1/2 4

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Wall socket or wall support with four outlets with 1/2 cylindrical female thread and 3/4 cylindrical female thread inlet. This wall socket allows you to install, in a simple and safe way in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pipe or pneumatic hose for the use of compressed air, etc...

Characteristics:

Manufacturer: Aignep
Reference: 90644 3/4 1/2 4
Series: Infinity
Number of distributor outputs: 4
Inlet thread: Female 3/4 (Gas cylindrical according to ISO 228)
Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.
