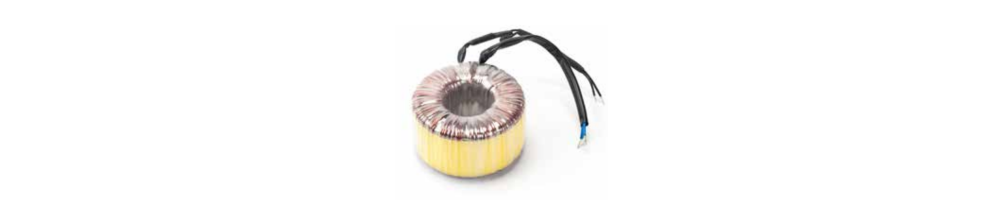

toroidal transformers

Range of toroidal transformers distributed by Adajusa , with a power range from 20VA to 3.000VA. They are used in feeds where small dimensions and compact manufacturing, low losses and a low level of radiation are needed.

They are 100% RoHS compliant and manufactured according to EN 61558.

toroidal transformers

Toroidal transformer 2x6V 20VA

7220002

€27.50 (€23.11 tax excl.)

Toroidal transformer 20VA, 230Vac input voltage and two 6Vac output windings, which can be connected in series to obtain a 12Vac output and a current of 1.66A, or in parallel to obtain a 6Vac output and a current of 3.32A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of 20cm...

toroidal transformers

Toroidal transformer 2x12V 20VA

7220004

€30.94 (€26.00 tax excl.)

Toroidal transformer 20VA, 230Vac input voltage and two 12Vac output windings, which can be connected in series to obtain a 24Vac output and a current of 0.83A, or in parallel to obtain a 12Vac output and a current of 1.66A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of 20cm...

toroidal transformers

Toroidal transformer 2x18V 20VA

7220006

€27.50 (€23.11 tax excl.)

Toroidal transformer 20VA, input voltage 230Vac and two 18Vac output windings, which can be connected in series to obtain an output of 36Vac and a current of 0.55A, or in parallel to obtain an output of 18Vac and a current of 1.1A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x24V 20VA

7220394

€28.66 (€24.08 tax excl.)

20VAtoroidal transformer, input voltage 230Vac and two 24Vac output windings, can be connected in series to obtain an output of 48Vac and a current of 0.41A, or in parallel to obtain an output of 24Vac and a current of 0.82A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of...

toroidal transformers

Toroidal transformer 2x6V 30VA

7220008

€34.38 (€28.89 tax excl.)

30VAtoroidal transformer, input voltage 230Vac and two 6Vac output windings, can be connected in series to obtain an output of 12Vac and a current of 2.5A, or in parallel to obtain an output of 6Vac and a current of 5A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification 20cm long....

toroidal transformers

Toroidal transformer 2x10V 30VA

7220009

€32.09 (€26.97 tax excl.)

30VAtoroidal transformer, input voltage 230Vac and two 10Vac output windings, which can be connected in series to obtain an output of 20Vac and a current of 1.5A, or in parallel to obtain an output of 10Vac and a current of 3A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification 20cm...

toroidal transformers

Toroidal transformer 2x12V 30VA

7220010

€34.38 (€28.89 tax excl.)

Toroidal transformer 30VA, 230Vac input voltage and two 12Vac output windings, which can be connected in series to obtain a 24Vac output and a current of 1.25A, or in parallel to obtain a 12Vac output and a current of 2.5A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of 20cm...

toroidal transformers

Toroidal transformer 2x15V 30VA

7220011

€32.09 (€26.97 tax excl.)

Toroidal transformer of 30VA, input voltage 230Vac and two output windings of 15Vac, can be connected in series to obtain an output of 30Vac and a current of 1A, or in parallel to obtain an output of 15Vac and a current of 2A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of...

toroidal transformers

Toroidal transformer 2x6V 50VA

7220014

€38.96 (€32.74 tax excl.)

Toroidal transformer 50VA, 230Vac input voltage and two 6Vac output windings, which can be connected in series to obtain a 12Vac output and a current of 4.17A, or in parallel to obtain a 6Vac output and a current of 8.34A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification of 20cm...

toroidal transformers

Toroidal transformer 1x12V 50VA

7220983

€34.38 (€28.89 tax excl.)

50VAtoroidal transformer with 230Vac input voltage and 12Vac output winding. Includes resettable thermal protector for protection against working conditions different from the design.Mounting by means of 2 plastic discs and screw (included in the supply).Output wires with color-coded identification of 25cm length. Part number: 7220983 Representative...

toroidal transformers

Toroidal transformer 2x12V 50VA

7220016

€41.25 (€34.66 tax excl.)

Toroidal transformer 50VA, 230Vac input voltage and two 12Vac output windings, which can be connected in series to obtain a 24Vac output and a current of 2.08A, or in parallel to obtain a 12Vac output and a current of 4.16A.Mounting by means of 2 metal disks, insulating washers and screw (included in the supply).Output wires with color-coded...

toroidal transformers

Toroidal transformer 2x15V 50VA

7220017

€29.79 (€25.03 tax excl.)

50VAtoroidal transformer, input voltage 230Vac and two 15Vac output windings, which can be connected in series to obtain an output of 30Vac and a current of 1.67A, or in parallel to obtain an output of 15Vac and a current of 3.34A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x18V 50VA

7220018

€38.96 (€32.74 tax excl.)

Toroidal transformer 50VA, input voltage 230Vac and two 18Vac output windings, which can be connected in series to obtain an output of 36Vac and a current of 1.39A, or in parallel to obtain an output of 18Vac and a current of 2.78A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x10V 80VA

7220020

€41.25 (€34.66 tax excl.)

Toroidal transformer 80VA, input voltage 230Vac and two 10Vac output windings, which can be connected in series to obtain an output of 20Vac and a current of 4A, or in parallel to obtain an output of 10Vac and a current of 8A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification 20cm...

toroidal transformers

Toroidal transformer 2x15V 80VA

7220057

€41.25 (€34.66 tax excl.)

Toroidal transformer 80VA, input voltage 230Vac and two 15Vac output windings, which can be connected in series to obtain an output of 30Vac and a current of 2.66A, or in parallel to obtain an output of 15Vac and a current of 5.32A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x18V 80VA

7220022

€41.25 (€34.66 tax excl.)

Toroidal transformer 80VA, input voltage 230Vac and two 18Vac output windings, which can be connected in series to obtain an output of 36Vac and a current of 2.22A, or in parallel to obtain an output of 18Vac and a current of 4.44A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x35V 80VA

7220025

€43.55 (€36.60 tax excl.)

Toroidal transformer 80VA, input voltage 230Vac and two 35Vac output windings, which can be connected in series to obtain an output of 70Vac and a current of 1.14A, or in parallel to obtain an output of 35Vac and a current of 2.28A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 1x12V 100VA

7320986

€37.82 (€31.78 tax excl.)

100VAtoroidal transformer with 230Vac input voltage and 12Vac output winding. Includes resettable thermal protector for protection against working conditions different from the design conditions. Output wires with color-coded identification of 25cm length. Part number: 7320986 Representative image for illustrative purposes, the item supplied will...

toroidal transformers

Toroidal transformer 2x10V 120VA

7220026

€38.96 (€32.74 tax excl.)

Toroidal transformer 120VA, input voltage 230Vac and two 10Vac output windings, which can be connected in series to obtain an output of 20Vac and a current of 6A, or in parallel to obtain an output of 10Vac and a current of 12A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded identification...

toroidal transformers

Toroidal transformer 2x18V 120VA

7220028

€34.38 (€28.89 tax excl.)

Toroidal transformer 120VA, input voltage 230Vac and two 18Vac output windings, which can be connected in series to obtain an output of 36Vac and a current of 3.33A, or in parallel to obtain an output of 18Vac and a current of 6.66A.Mounting by 2 metal discs, insulating washers and screw (included in the supply).Output wires with color-coded...

Showing 1-20 of 25 item(s)
