• Pack
Box with 3-position key selector switch...
Box with 3-position key selector switch complete - NYG Series

Box with 3-position key selector switch complete - NYG Series

€8.29 Tax included

€6.97 tax excl.

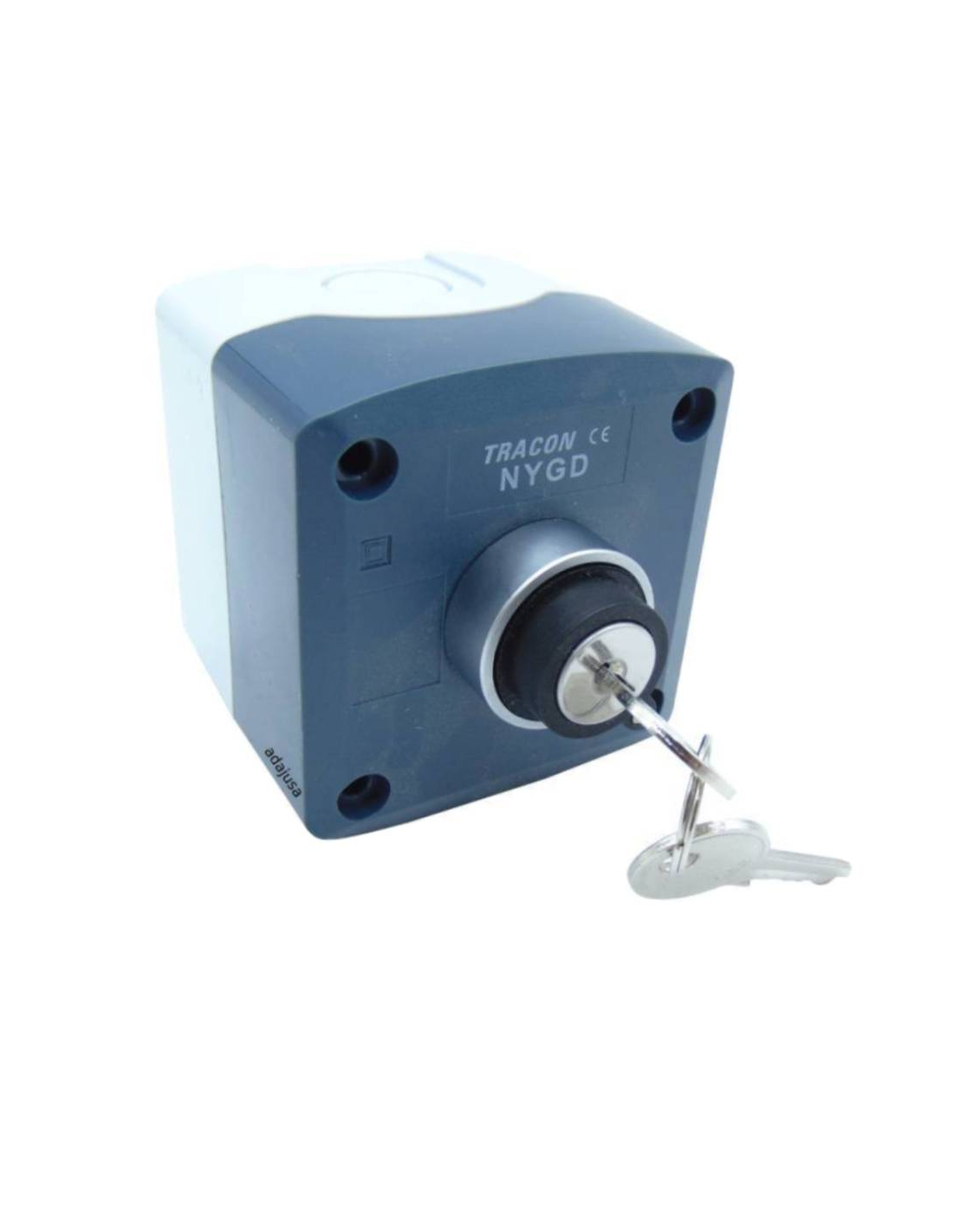

Box with 3-position selector operated by complete key. Metal selector switch with 3-position key maintained and 2 open contacts (2NO), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP44.

The key can be inserted or extracted in any of the three positions.


Part number: NYBG53KKT


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with 3-position selector operated by complete key. Metal selector with 3-position key-operated switch and 2 open contacts (2NO), housing made of high-strength gray plastic and dark gray front. Degree of protection IP44.

The key can be inserted and extracted in any of the three positions.

The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the selector are supplied loose. Two keys are included.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: NYBG53KKT
  • Push button type: Selector
  • Number of positions: 3 maintained
  • Inscription: None
  • Contacts2 NO
  • Box in light gray/dark gray plastic
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP44
  • Standards: EN 60947-1; EN 60947-5-1



Dimensiones selector de llave







Material for professional use, install in compliance with the regulations in force at the place of installation.
