Bearing 3200-ZZ 10x30x14mm ISB

€5.53 Tax included

€4.65 tax excl.

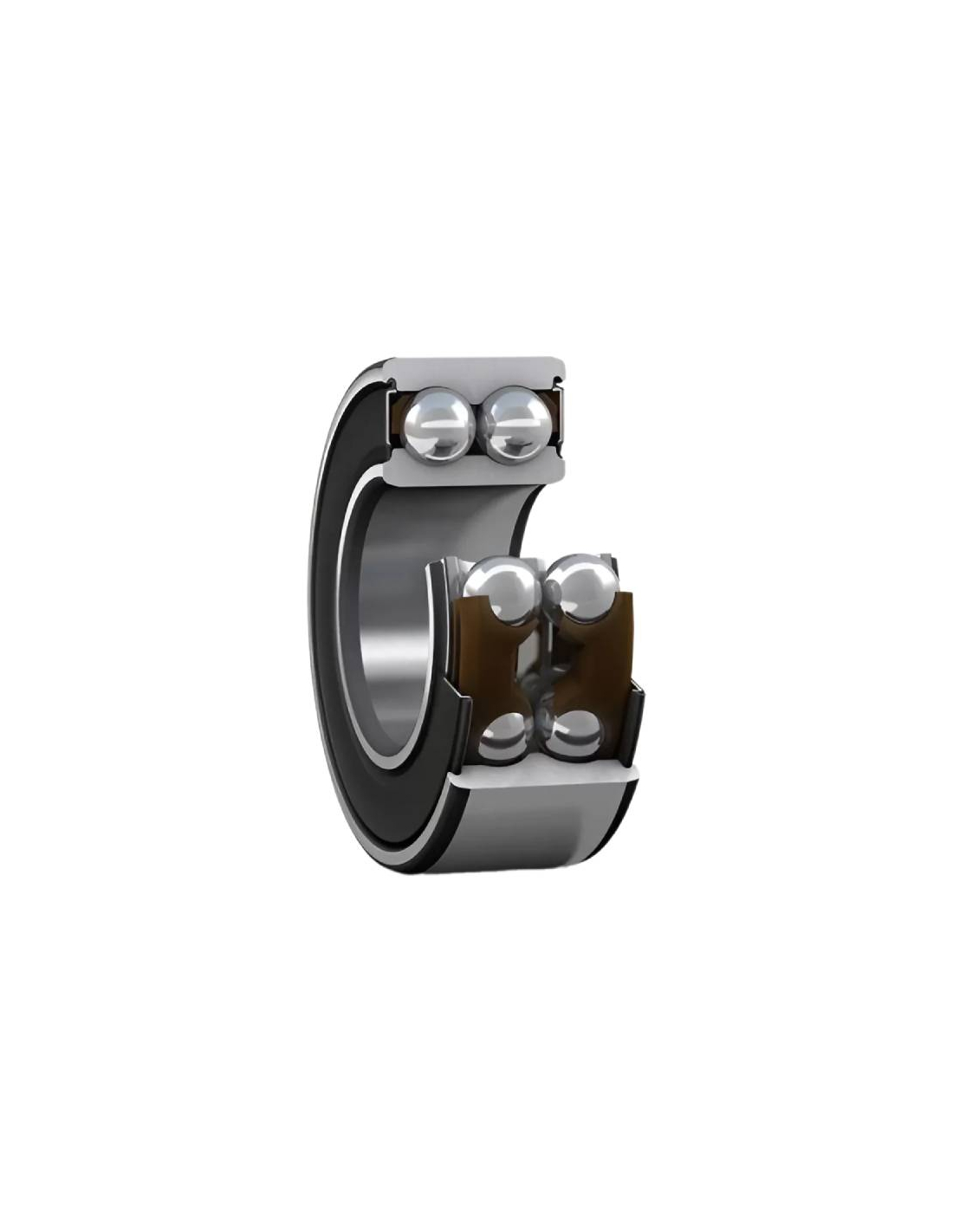

Ball bearing 3200-ZZ double row angular contact, dimensions 10x30x14mm, sealed with two metal sealing caps (ZZ), with cage made of polyamide PA66

Reference: 3200-ZZ

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Angular contact ball bearings, double row, series 3200-ZZ to DIN 628-3, two rows of balls, sealed with metal sealing shields on both sides, supplied already lubricated.

This series of bearings with suffix 2Z (ZZ) are provided with protective caps on both sides of the bearing and with a cage made of polyamide PA66

Double row angular contact ball bearings can support high radial loads and axial forces in both directions, the contact angle of this series is 25°.

This type of bearing is suitable for operating temperatures from -30ºC to +150ºC.

Dimensions: Ø10xØ30x14.

For other references or dimensions, please consult us.

Dimensiones doble hilera contacto angular

Characteristics:

Manufacturer ISB.
Part number: 3200-ZZ ATN9.
Material: Tempered steel.
Dimension d: 10mm.
Dimension D: 30mm.
Dimension B: 14mm.
Sealing: ZZ type (2Z) metallic on both sides.
Dynamic load capacity Cᵣ (KN): 7.46.
Static load capacity C₀ᵣ (KN): 4.2.
Contact angle: ἀ=25º
Limit speed ng (min-¹): 22800.
Weight: 0.051 Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
