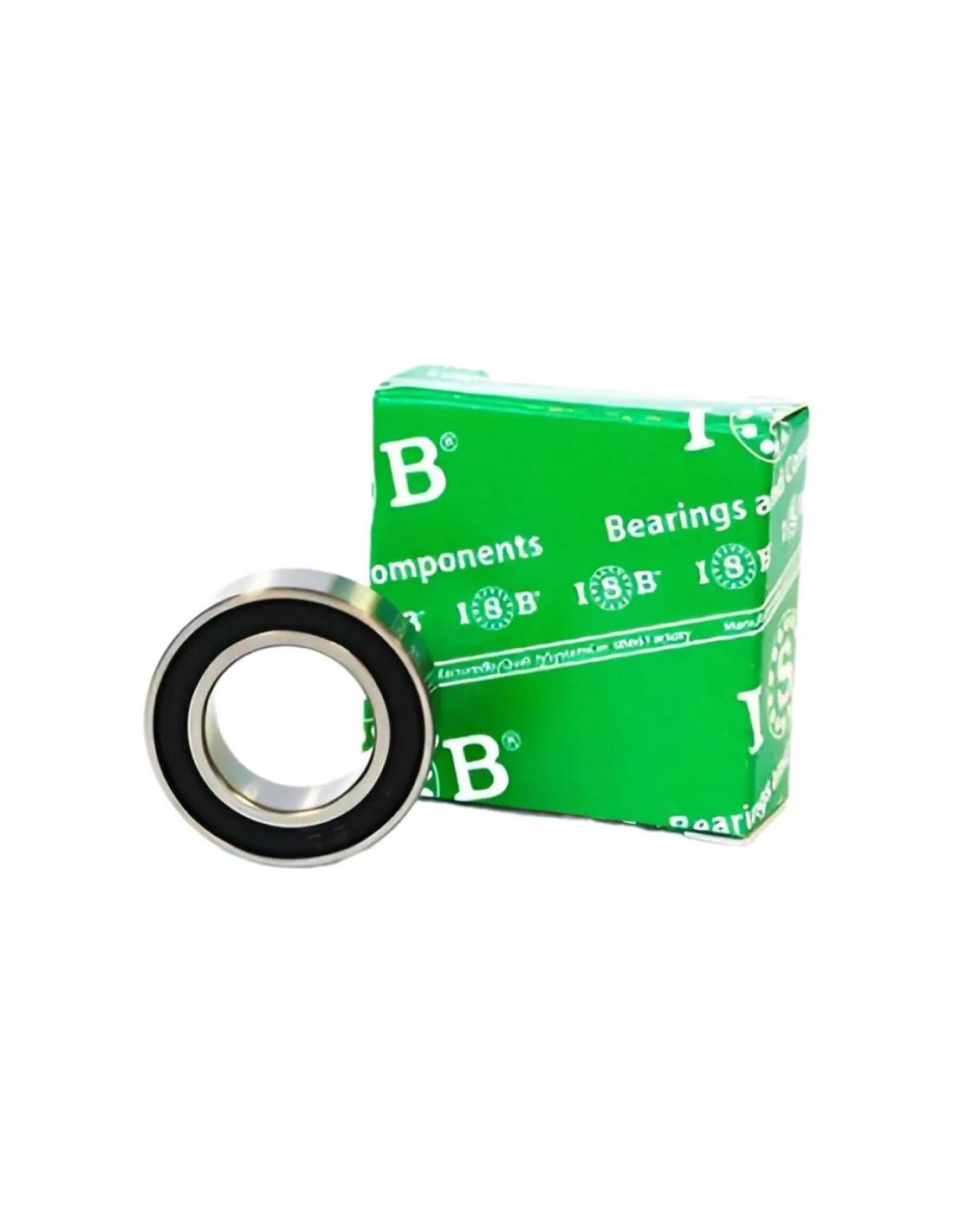

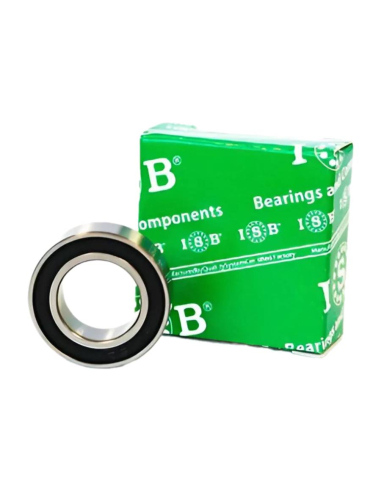

Bearing 3200-2RS 10x30x14mm ISB

€5.69 Tax included

€4.78 tax excl.

Ball bearing 3200-2RS double row angular contact, dimensions 10x30x14mm, sealed with two lip seals for sealing (2RS), and with cages made of polyamide PA66.

Reference: 3200-2RS

Logo-ISB-Bearings-and-Components-fondo-verde

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

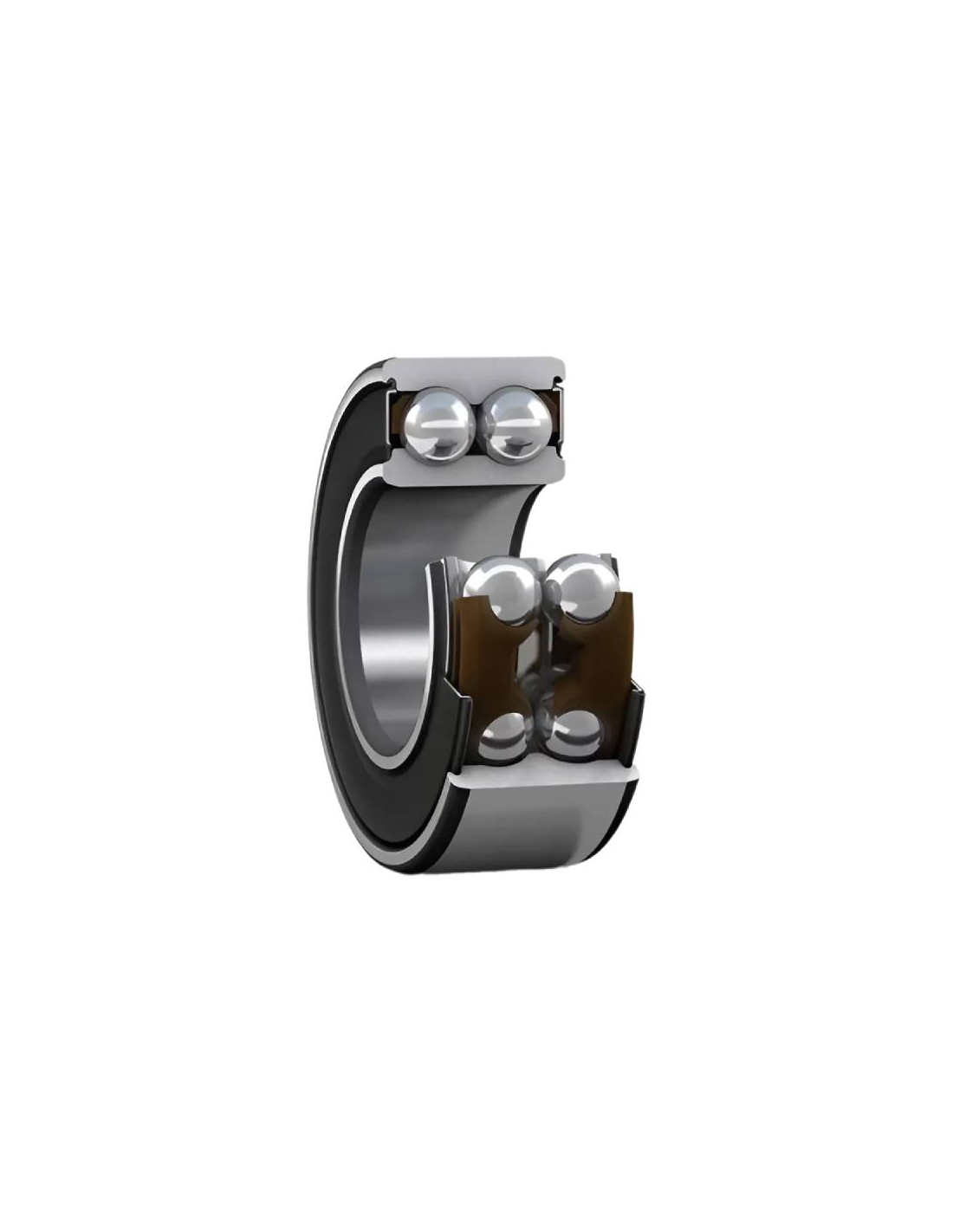

Angular contact ball bearings, double row, series 3200-2RS to DIN 925-1, two rows of balls, sealed with metal sealing shields on both sides, supplied already lubricated. Cage made of polyamide PA66

This series of bearings with suffix 2RS (2RSR) are provided with protective caps on both sides of the bearing. This type of contact seals are suitable for protection against dust, dirt and damp environments.

Double row angular contact ball bearings can support high radial loads and axial forces in both directions, the contact angle of this series is 25°.

These bearings are suitable for operating temperatures from -30°C to +110°C.

Dimensions: Ø10xØ30x14.

For other references or dimensions, please consult us.

Dimensiones doble hilera contacto angular

Characteristics:

  • Manufacturer ISB.
  • Part number: 3200-ISB ATN9.
  • Material: Tempered steel.
  • Dimension d: 10mm.
  • Dimension D: 30mm.
  • Dimension B: 14mm.
  • Sealing: type 2RS (2RSR) elastic (NBR) on both sides.
  • Dynamic load capacity Cᵣ (N): 7800.
  • Static load capacity C₀ᵣ (N): 7550.
  • Contact angle: ἀ=25º
  • Limiting speed ng (min-¹): 19300.
  • Weight: 0.051 Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
