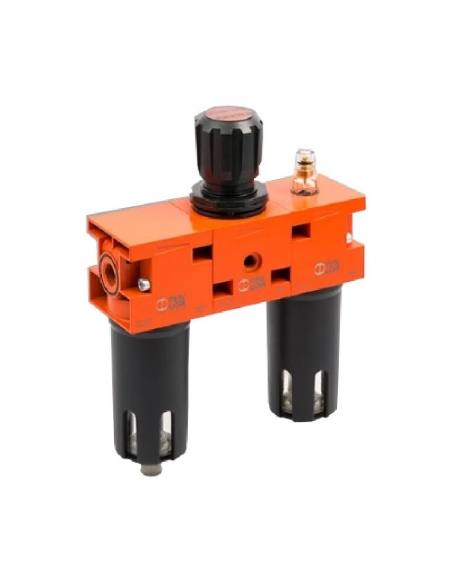

Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA

Pneumatic filter group 1/2 regulation 0-8 bar semi-automatic purge New Deal series - Metal Work

€144.61 Tax included

121.52 tax excl.

1424030

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L) and regulation range 0-8 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.

Series: New Deal
Reference: 1424030

FRL New Deal scheme

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L).
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.
The type of purge is manual and automatic when the pressure is removed. The filter group has a 20 μm filter element.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

Manufacturer: Metal Work
Reference: FRL 1/2 20 08 RMSA
Manufacturer reference: 1424030
Thread size: 1/2"
Regulation field: 0 to 8 bar .
Maximum inlet pressure: 18 bar .
Semi-automatic and automatic condensate drain.
Metal cup with external viewer
Filtration degree: 20μm.
Condensate drain type: RMSA
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 1300
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 2000
Wall fixing screws: M4 x 55.
Working temperature: -10 to +50ºC.

dimensions F+R+L New deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)

Questions

Question

como puedo sacar la tuerca de fijación si el pomo es mas grande para poder poner la pieza de fijación y fijar el regulador en la maquina

Answer

Estimado cliente,

Gracias por su mensaje.

En relación con el grupo de filtraje neumático de la serie New Deal de Metal Work, si desea instalar la escuadra de fijación y observa que el pomo de regulación impide acceder a la tuerca trasera, le indicamos lo siguiente:

El pomo de regulación no debe forzarse ni desmontarse directamente. Para montar la escuadra correctamente, debe extraerse el cuerpo del regulador del conjunto, aflojando con cuidado la parte posterior donde va fijado al soporte central. Esto le permitirá acceder a la tuerca desde el interior, colocar la escuadra y volver a montar el regulador.

Le recomendamos realizar esta operación con herramientas adecuadas y por personal cualificado para evitar dañar los componentes.

Todos nuestros productos están destinados a uso profesional y requieren instalación por personal cualificado. Verifique antes de realizar el pedido que se adapta a sus necesidades.

Atentamente,
Adajusa
www.adajusa.es

mario de almada on 07/30/2025 17:21:20
