Pneumatic filtering group 1/2 regulation 0-8...

Pneumatic filtering group 1/2 regulation 0-8 bar semi-automatic purge size 2 FRL EVO series - Aignep

Name: Pneumatic filtering group 1/2 regulation 0-8 bar semi-automatic purge size 2 FRL EVO series - Aignep
Brand: Aignep
SKU: Y100205231100
Price: 101.8402 EUR
Availability: PreOrder

€101.84 Tax included

€85.58 tax excl.

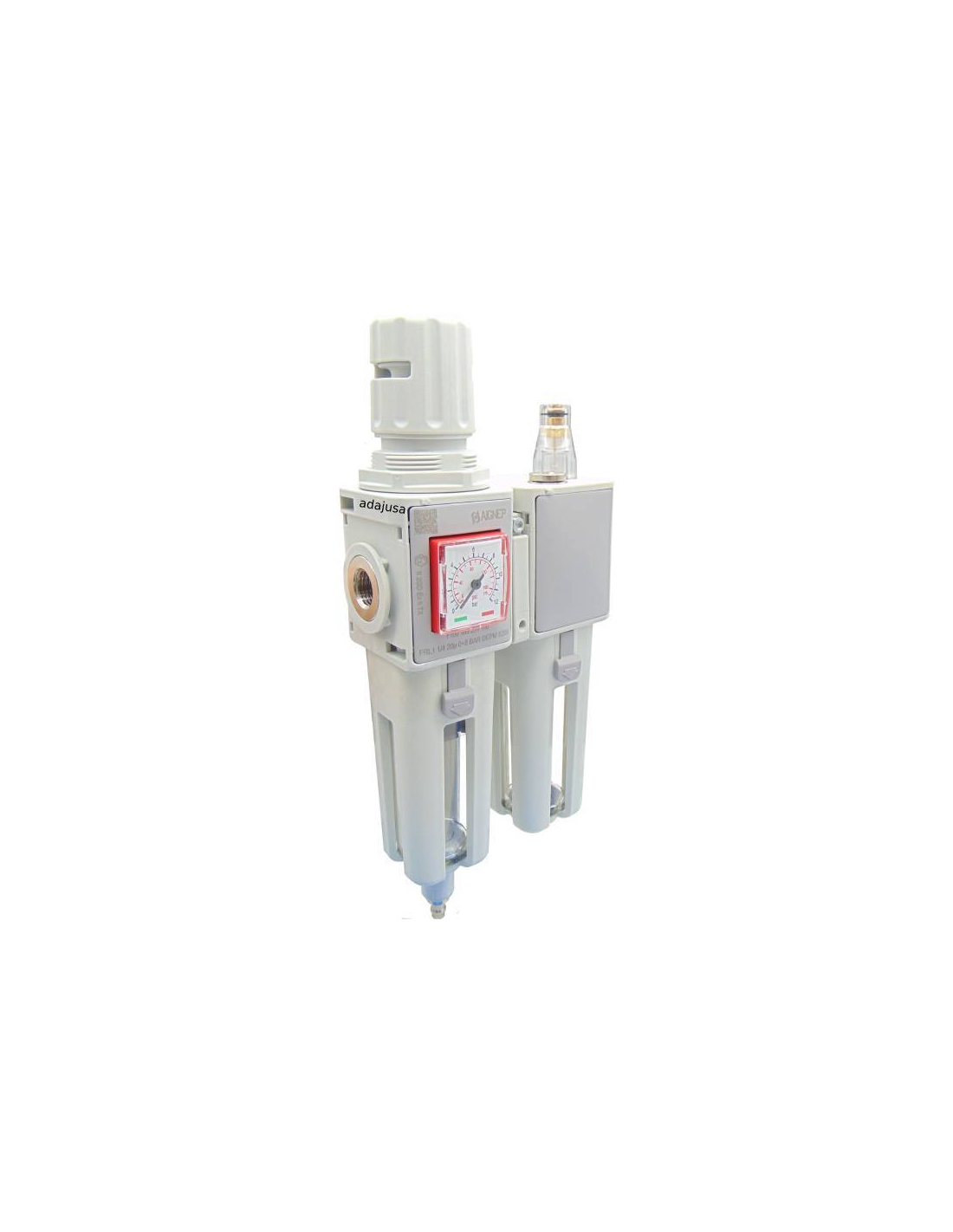

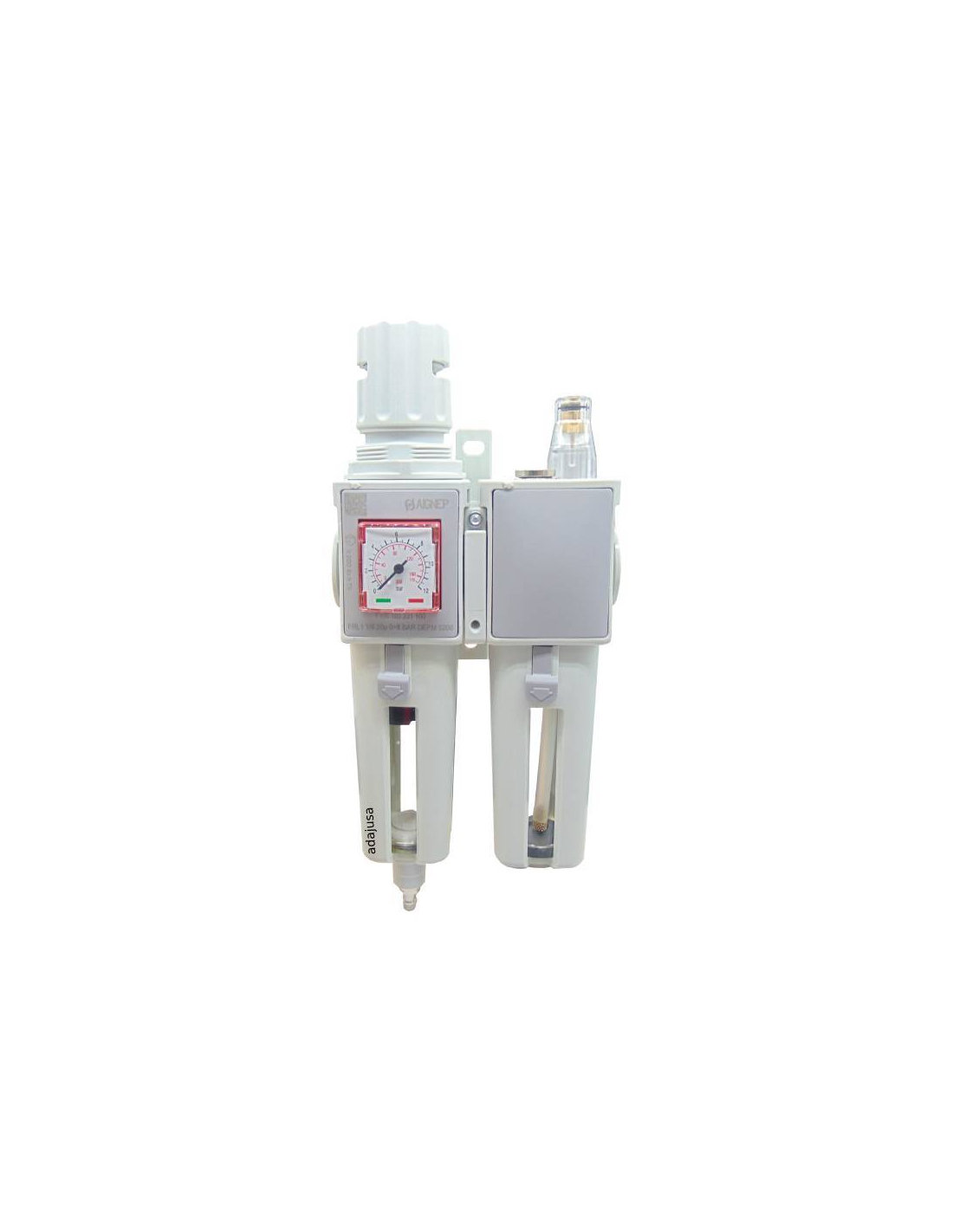

Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.

Series: FRL Evo
Reference: Y100205231100

Logotipo Aignep Norma de referencia serie EVO Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 filtering unit, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (T2), in 2 modules (FR+L), European manufacture. Fastening by means of lateral holes. Knob with padlock.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and coalescence filtration element. These filtering groups are manufactured silicone-free.

Compact pressure gauge inserted on the regulator body. With its reduced size and weight, it meets today's demand for miniaturization and performance. Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of purge is semi-automatic, discharging when the pressure in the filter approaches zero.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics of the filtering group:

Manufacturer: Aignep
Part number: Y100205231100
Number of elements: 2 (FR+L)
Fluid: Compressed air
Thread size: 1/2
Filtration degree: 20 μm (*)
Condensation drain: manual-semi-automatic
External sight glass
Built-in overpressure drain valve
Maximum pressure: 15 bar
Regulation from 0-8 bar (**)
Flow rate at 6 bar (ΔP1bar): 2700 Nl/min
Pressure gauge: Included
Vessel capacity: 37 cm3
Mounting screws: M5x15
Mounting form: Vertical
Working temperature: -10ºC to +50ºC
Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
Reference standard: PED 2014/68/EU
Mounting accessories: not included

(*) On request it is possible to supply units with a filtration degree of 5 μm

(**)Other regulation ranges on request

0 a 2 bar
0 a 4 bar

For other sizes or references: please consult us.

Dimensiones grupo filtrante FR-L EVO Aignep Adajusa

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Catalogo FRL EVO

Download (4.94MB)
