Pneumatic filter-regulator 3/8 0-8 bar complete automatic purge size 1 FRL EVO series - Aignep

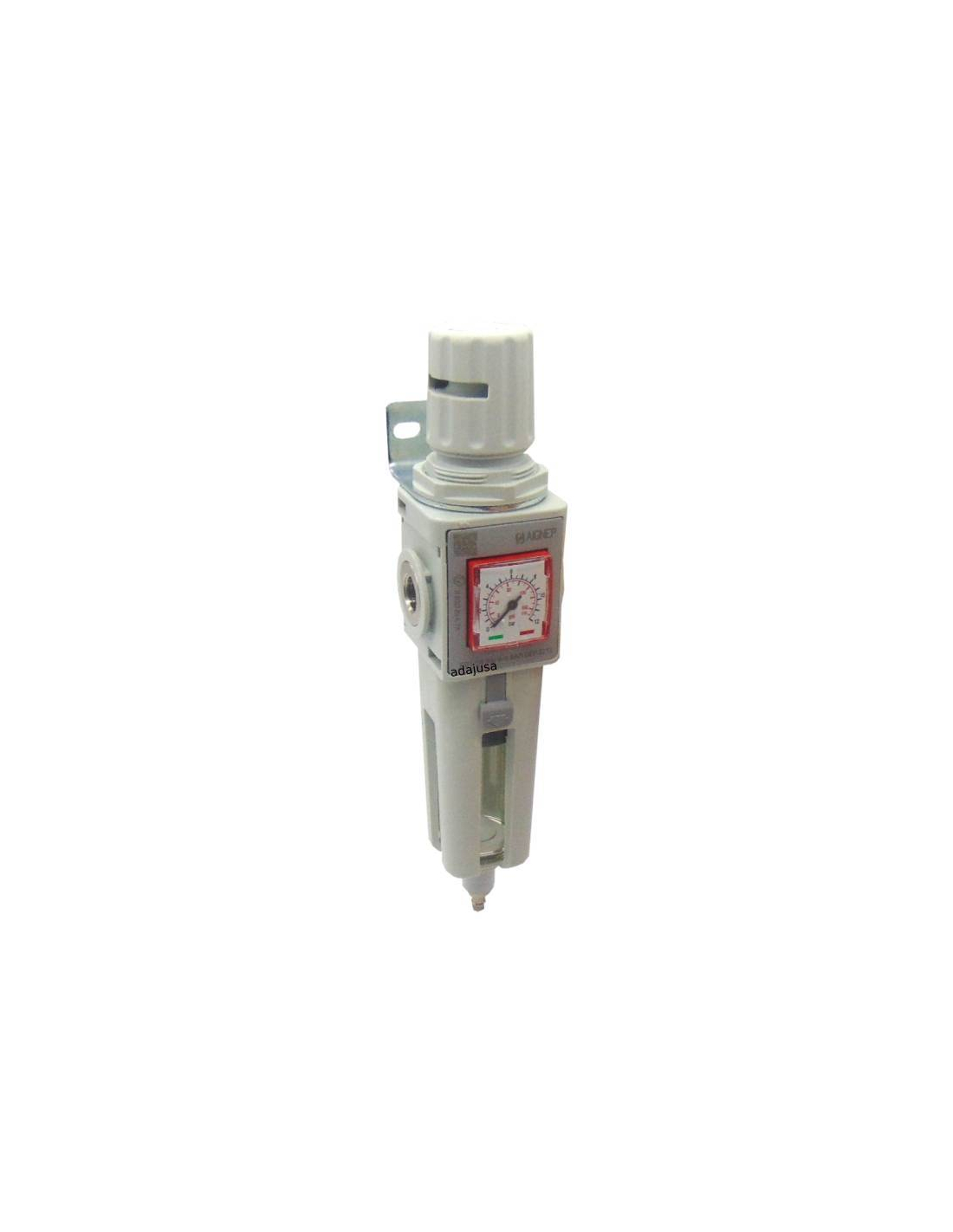

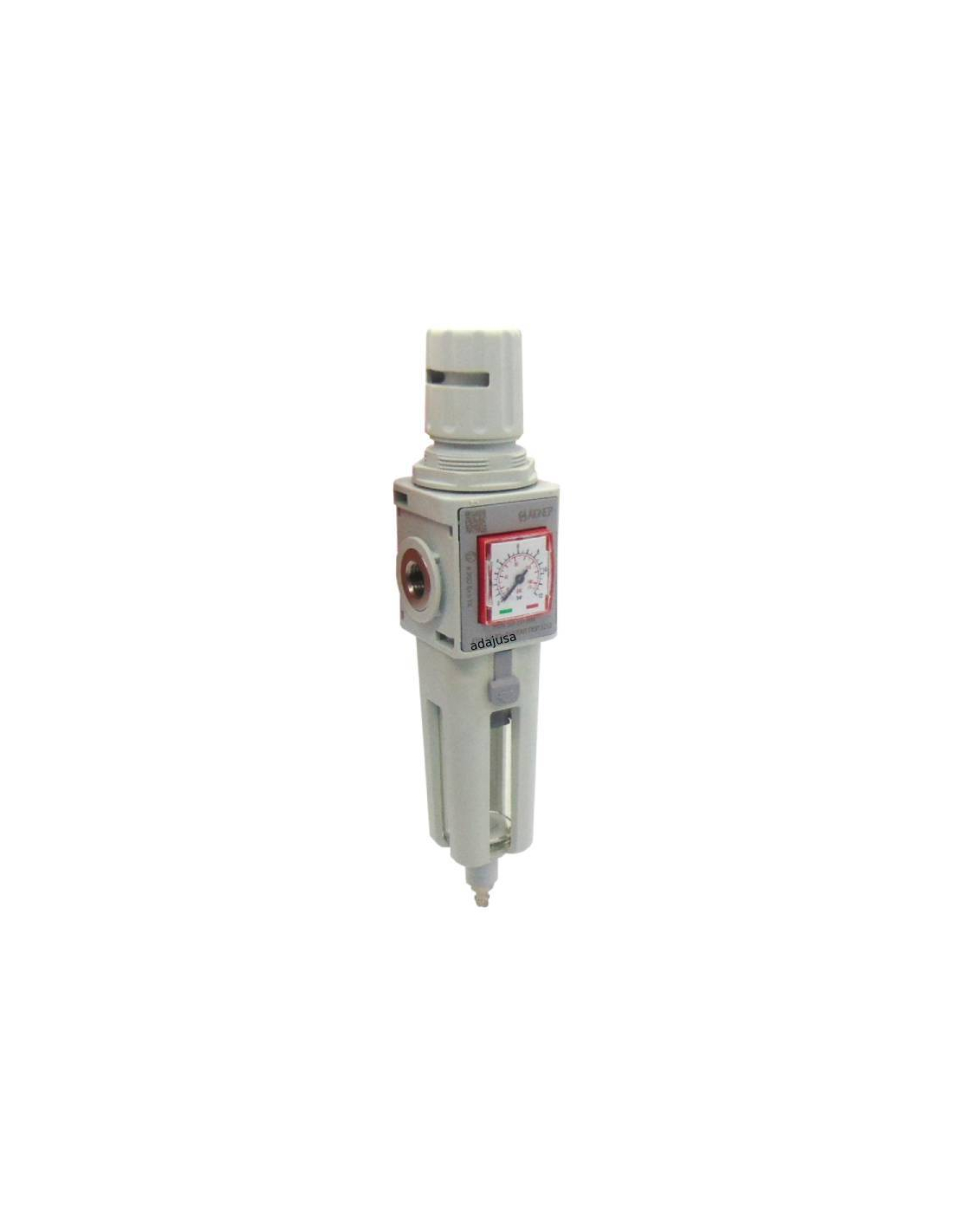

Pneumatic pressure filter-regulator with 3/8 pressure gauge complete, 3/8 maintenance unit for pneumatic applications, automatic venting, compact size (T1). Fastening by means of side holes.Knob with padlock.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and a coalescing filtering element.These filtering groups are manufactured free of silicone.

Compact pressure gauge inserted on the regulator body.Reduced size and weight, meeting today's demand for miniaturization and performance .Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of drain is automatic, discharging the condensate when it reaches the maximum allowable level regardless of the operating pressure.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

The supply includes:

• Filter-pressure regulator with integrated pressure gauge
• Squad size 1 fastening

Technical characteristics of the regulator:

• Manufacturer: Aignep
• Manufacturer's reference: Y030104232000
• Thread size: 3/8
• Adjustment range: 0 to 8 bar
• Filtration degree: 20 μm (*)
• Maximum inlet pressure: 15 bar.
• Built-in overpressure bleed valve.
• Flow rate at 6 bar (∆P 1 bar): 2200 Nl/min
• Pressure gauge: Included
• Mounting screws: M5x15
• Cup capacity (condensation) (cm3): 28
• Mounting position: Vertical
• Working temperature: -10 to +50º C

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
