Pneumatic filter-regulator 3/8 0-8 bar complete...

Pneumatic filter-regulator 3/8 0-8 bar complete automatic purge size 1 FRL EVO series - Aignep

Pneumatic filter-regulator 3/8 0-8 bar complete automatic purge size 1 FRL EVO series - Aignep

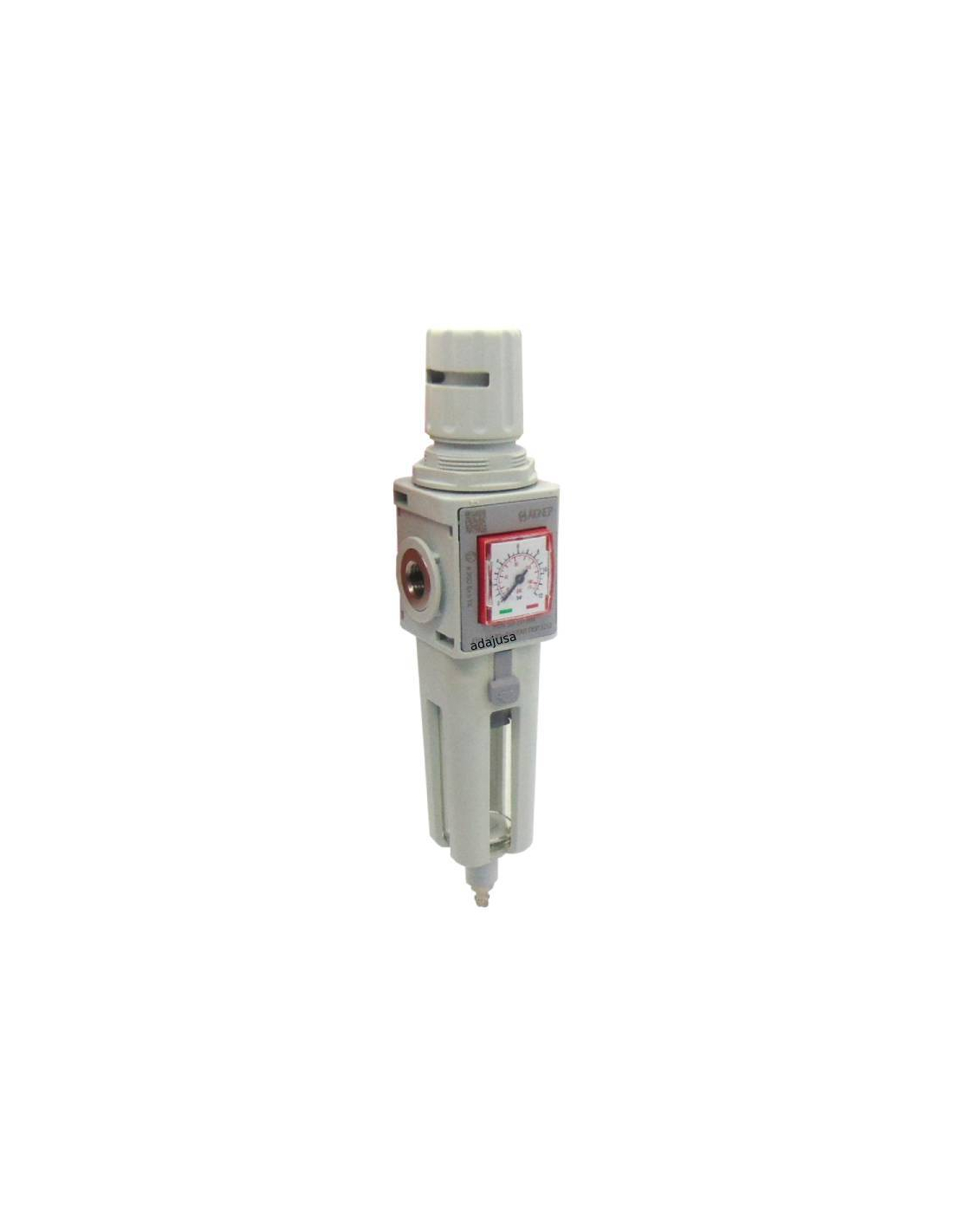

Name: Pneumatic filter-regulator 3/8 0-8 bar complete automatic purge size 1 FRL EVO series - Aignep
Brand: Aignep
SKU: PK-Y030104232000
Price: 72.1497 EUR
Availability: InStock

€72.15 Tax included

€60.63 tax excl.

Pneumatic pressure filter-regulator with 3/8 pressure gauge, 3/8 maintenance unit for pneumatic applications, automatic purge, compact size (T2) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.

Series: FRL Evo
Reference: PK-Y030104232000

Esquema neumatico filtro-regulador

Logotipo Aignep
normativa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

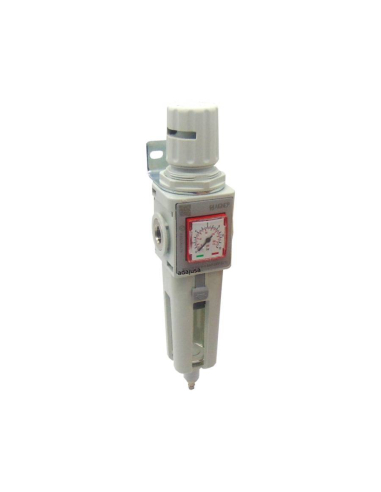

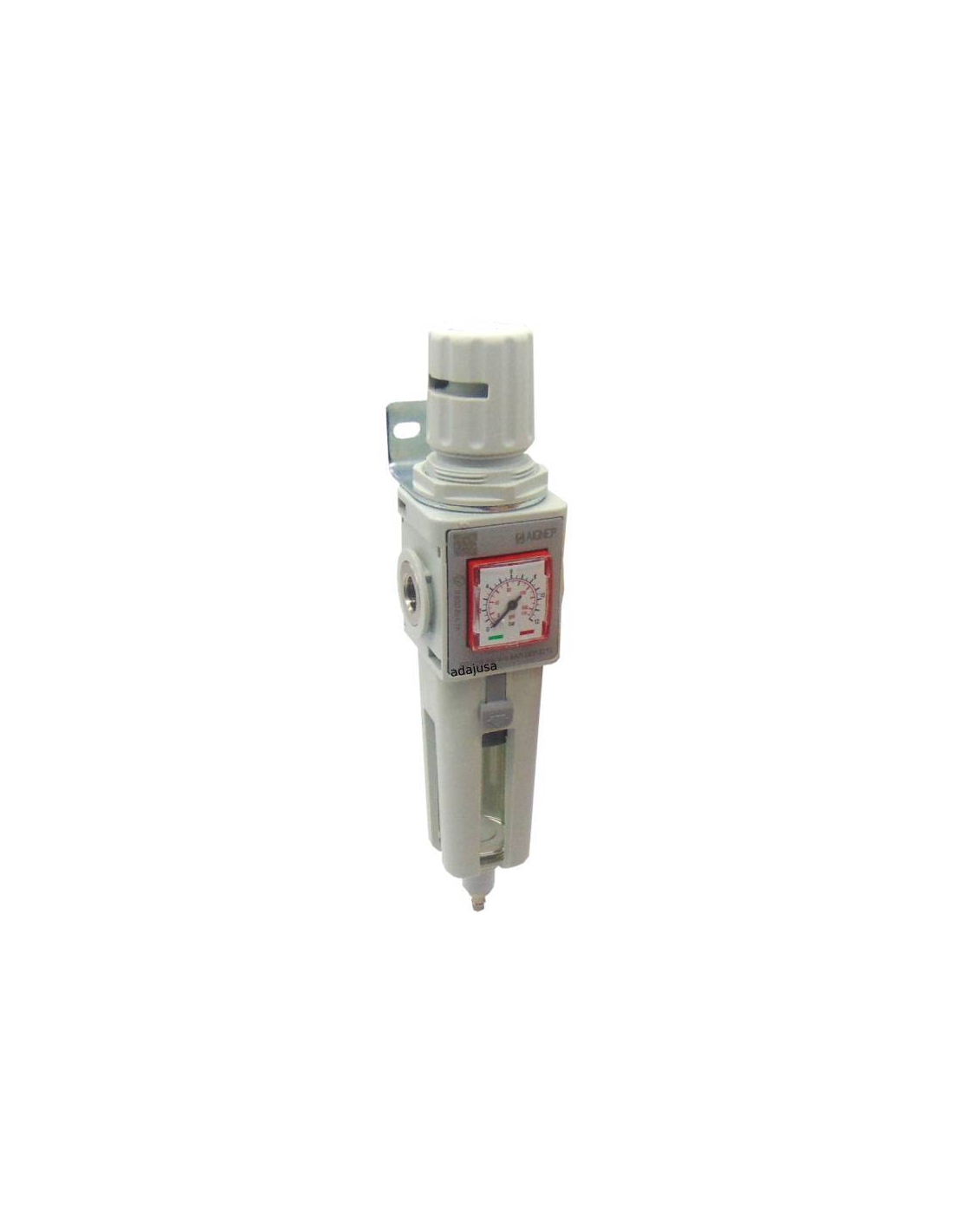

Pneumatic filter-regulator 3/8 0-8 bar automatic purge size 1 FRL EVO series - Aignep

€71.29

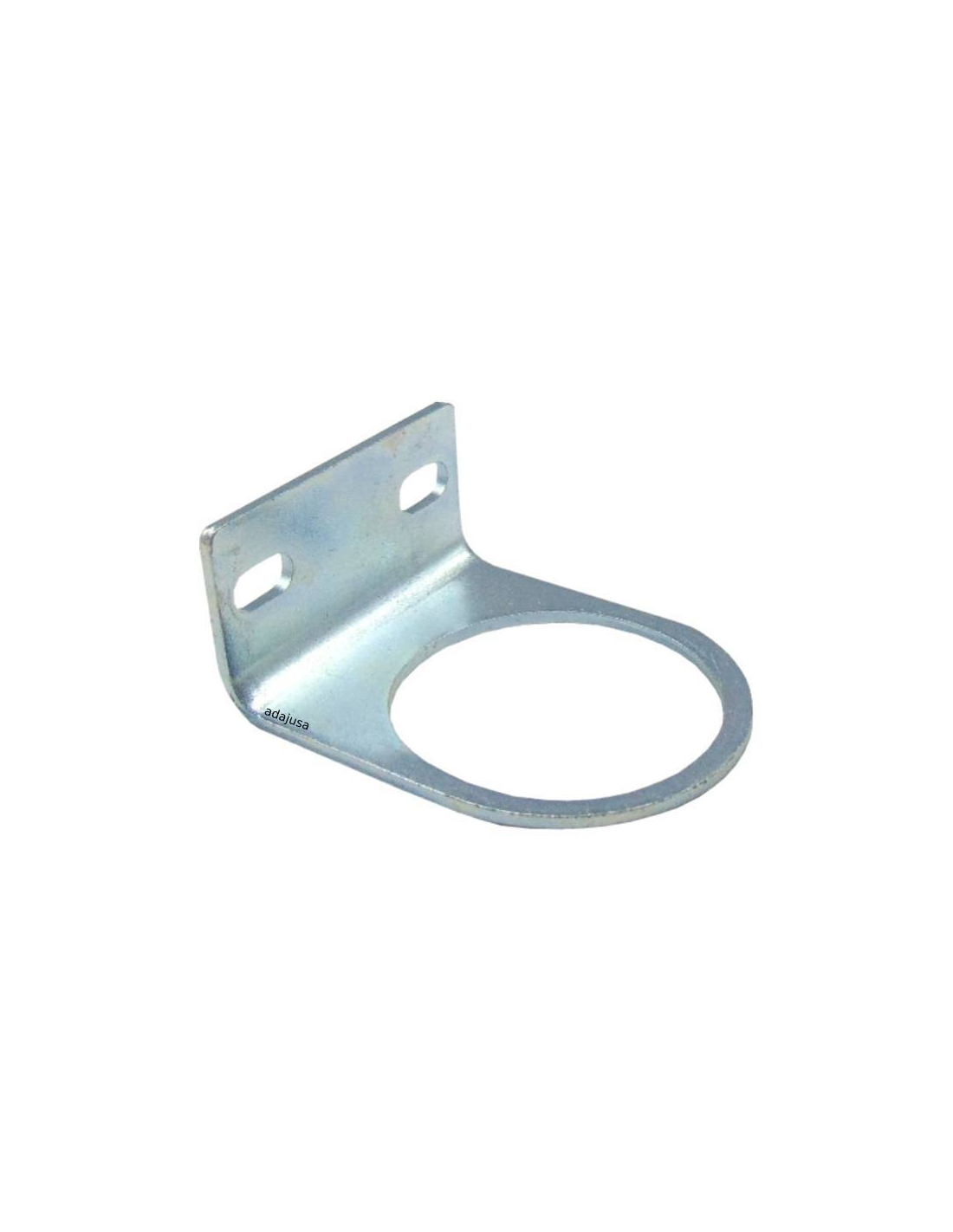

Fixing bracket size 1 for filtering group 1/4 and 3/8 FRL EVO series - Aignep

€0.86

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic pressure filter-regulator with 3/8 pressure gauge complete, 3/8 maintenance unit for pneumatic applications, automatic venting, compact size (T1). Fastening by means of side holes.Knob with padlock.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and a coalescing filtering element.These filtering groups are manufactured free of silicone.

Compact pressure gauge inserted on the regulator body.Reduced size and weight, meeting today's demand for miniaturization and performance .Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of drain is automatic, discharging the condensate when it reaches the maximum allowable level regardless of the operating pressure.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

REGULAADOR BLOQUEO FRL EVO (1)

Dimensiones escuadra grupo friltrante MINI FRL Aignep Adajusa

The supply includes:

Filter-pressure regulator with integrated pressure gauge
Squad size 1 fastening

Technical characteristics of the regulator:

Manufacturer: Aignep
Manufacturer's reference: Y030104232000
Thread size: 3/8
Adjustment range: 0 to 8 bar
Filtration degree: 20 μm (*)
Maximum inlet pressure: 15 bar.
Built-in overpressure bleed valve.
Flow rate at 6 bar (∆P 1 bar): 2200 Nl/min
Pressure gauge: Included
Mounting screws: M5x15
Cup capacity (condensation) (cm3): 28
Mounting position: Vertical
Working temperature: -10 to +50º C

Y030 DIMENSIONES FILTRO REGULADOR FRL EVO

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Catálogo Serie EVO

Download (3.97MB)
