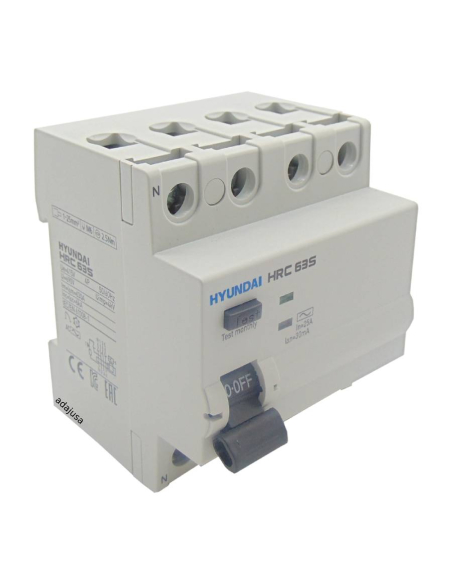

Differential Circuit Breaker RCD 4 poles 40A 30mA - Hyundai Electric

€54.01 Tax included

€45.39 tax excl.

Three-phase differential 4 Poles (3+N) 40A 0.03A (30mA) class AC . Electromagnetic type, which allows you not to lose protection in case of variation in the voltage input and thus be able to maintain the protection of the active phase in case of loss of neutral.

Standard differential class "AC".

Reference: HRC63S-G4PG4040

Electrical diagram of three-phase differential switch

Class AC



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


40A 30mA, 4-pole, electromagnetic type, Electric differential switch for protection of people against insulation/derivation problems in electrical installations or elements. For use in residential, tertiary and industrial sectors.

Standard “AC” employment class. Neutral position on the left side.

This type of differential switch operates electromagnetically, which means that the safety function is not lost in the event of variations in the supply voltage or loss of the neutral conductor. The differential switch is only triggered by the shunt in the active phase.

Made of moulded and fireproof thermoplastic material. It has two visual status indicators on the front; the upper one indicates the status of the differential (ON/OFF) and the lower one indicates a leakage current fault. This differential does not allow the mounting of auxiliary elements.

Technical characteristics:

  • Manufacturer/Supplier: Hyundai Electric
  • Reference: HRC63S-G4PG4040
  • Number of poles: 4 (3 Poles+Neutral).
  • Class: AC
  • Type: electromagnetic
  • Employment in the tertiary and industrial sectors
  • Operating voltage (Ue): 240/415 Vac.
  • Nominal current (In): 40A
  • Sensitivity (IΔn): 30mA (0.03A).
  • Breaking capacity : 6kA
  • Insulation voltage (In): 500 V.
  • Electrical life expectancy: 10,000 operations minimum.
  • Mechanical life expectancy: 20,000 maneuvers minimum.
  • Protection grade IP20.
  • Visual indication of contact position: Red-ON, Green-OFF.
  • Standard: IEC/EN 61008-1
  • CE marking
  • Terminal size: 25mm2
  • Net weight (kg): 0.310
  • Dimensions (H x D x W): 81.0 x 74.0 x 71.6 mm
  • Mounting position: Vertical/Horizontal.
  • Housing and cover: Molded, flame-retardant thermoplastic material.
  • Possibility of double connection via cable or comb
  • Auxiliary elements: No.
Differential dimensions HRC63 STD

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.
