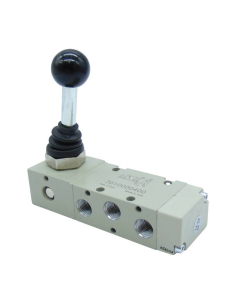

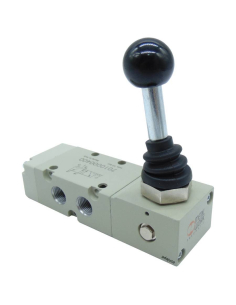

Manual lever valve 1/4 5/3 centers pressure return spring lever 90 degrees - Metal Work

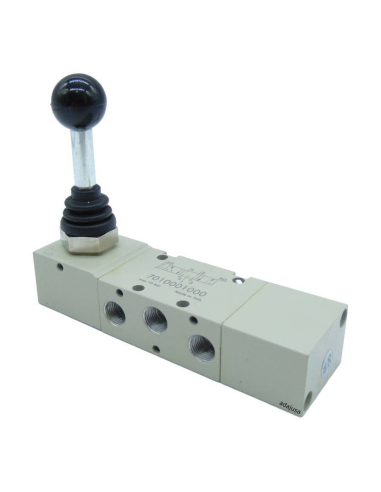

Valve of 1/4 manual actuation by lever of 3 positions, centers in pressure, spring return, the valve is activated when the lever is actuated and returns to the resting position when the lever stops being activated, for control of double effect cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central, the cylinder receives pressure on both sides, and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use

Specifications:

• Manufacturer: Metal Work.
• Reference: MAV 36 LES PC.
• Code: 7020001100
• Fluid: Pressurized or vacuum air, with or without lubrication.
• Valve Body: aluminum.
• Sliding material: Nickel-plated aluminum.
• Joints: NBR.
• number of tracks: 5.
• Size: 1/4".
• Positions: 3 pressure centers
• Control: By lever.
• Working pressure: Vacuum÷10 bar.
• Temperature: -10÷60ºC.
• Nominal diameter: 7.5
• Conductance C (Nl/min · bar): 264.26
• Critical ratio b (bar/bar): 0.27
• Flow rate at 6bar ΔP 0.5bar: 750 Nl/min.
• Flow rate at 6bar ΔP 1bar: 1100 Nl/min.
• Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
