Monostable handle valve 1/8 5/2 - Metal Work

Name: Monostable handle valve 1/8 5/2 - Metal Work
Brand: Metal Work
SKU: 7010001500
Price: 33.4033 EUR
Availability: PreOrder

€33.40 Tax included

€28.07 tax excl.

Valve of 1/8 manual drive by handle. 5 ways 2 fixed positions. For control of cylinders of simple effect.

Reference: 7010001500

Logotipo Metal Work

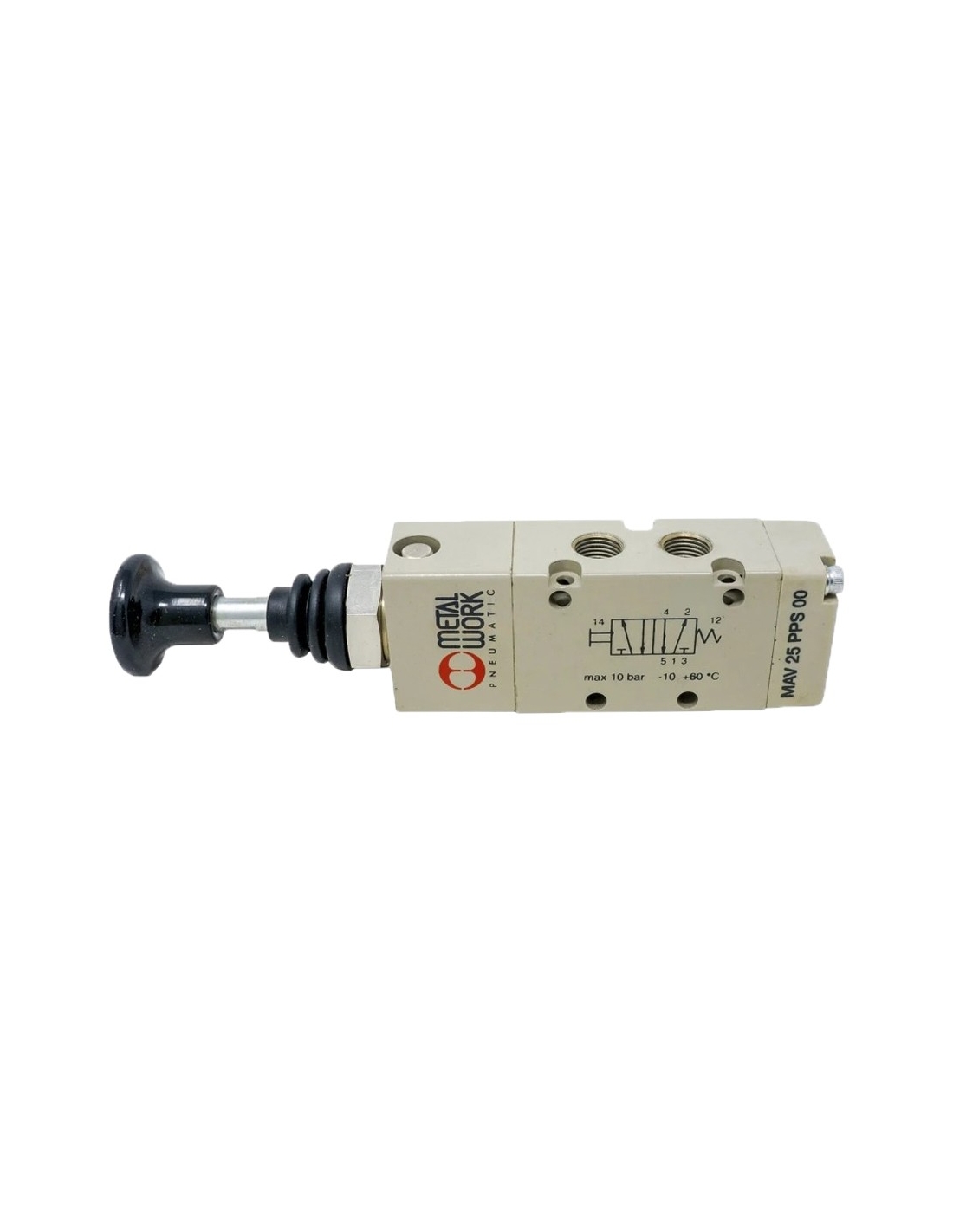

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve of 1/8 manual drive by handle normally closed of 2 fixed positions, 5 ways 2 fixed positions, which allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Fixing by side screws or front nut. For pneumatic applications.

Manufacturer: Metal Work.

Reference: 7010001500 MAV 25 PPS OO
Operating pressure: Empty ÷ 10
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

70 manual series valves

Download (1.51MB)
