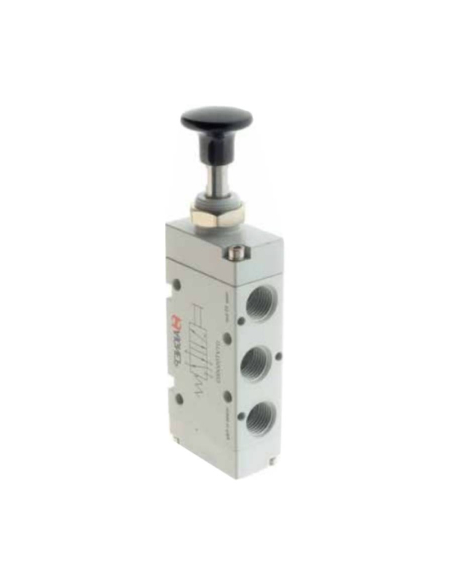

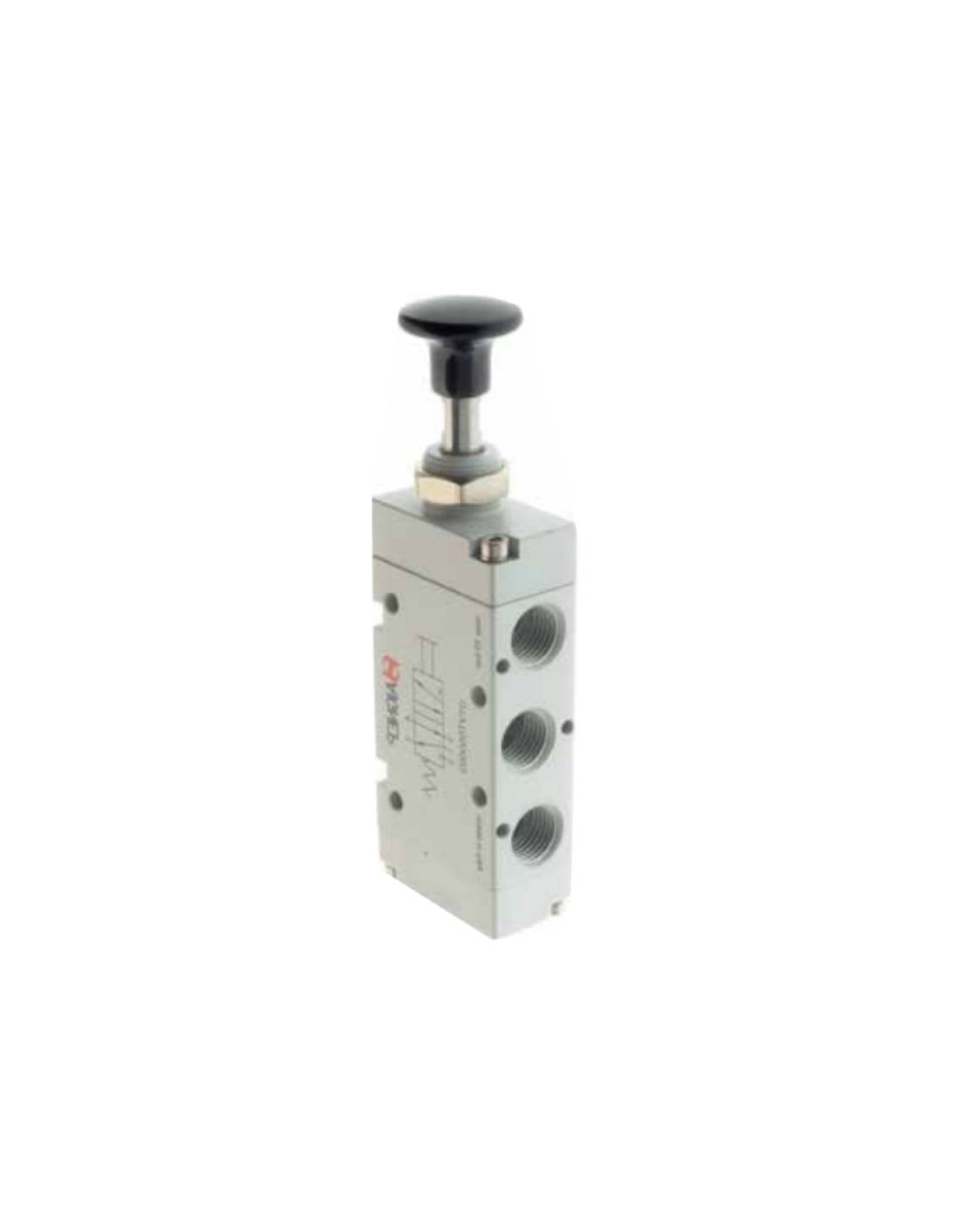

Handle Valve monostable 1/8 5/2 - Aignep

Name: Handle Valve monostable 1/8 5/2 - Aignep
Brand: Aignep
SKU: 01VT050002
Price: 37.366 EUR
Availability: InStock

€37.37 Tax included

€31.40 tax excl.

1/8" valve manually operated by handle. 5 way 2 fixed positions. For control of cylinders of simple effect. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VT050002

Logotipo Aignep iconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/8 valve manually operated by handle monostable with 2 fixed positions, 5 way 2 fixed positions, allowing to control cylinders of simple effect. In one position the cylinder retracts, in another position the cylinder advances. Can also be used as a shut-off valve or pneumatic circuit breaker.

Fixing by means of lateral screws or front nut. For pneumatic applications.

Manufacturer: Aignep

Part number: 01VT050002
Operating pressure: Vacuum ÷ 10
Operating temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 740

53 DIMENSIONES T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Catálogo válvulas Aignep

Download (8.44MB)
