€81.21 Tax included

€68.24 tax excl.

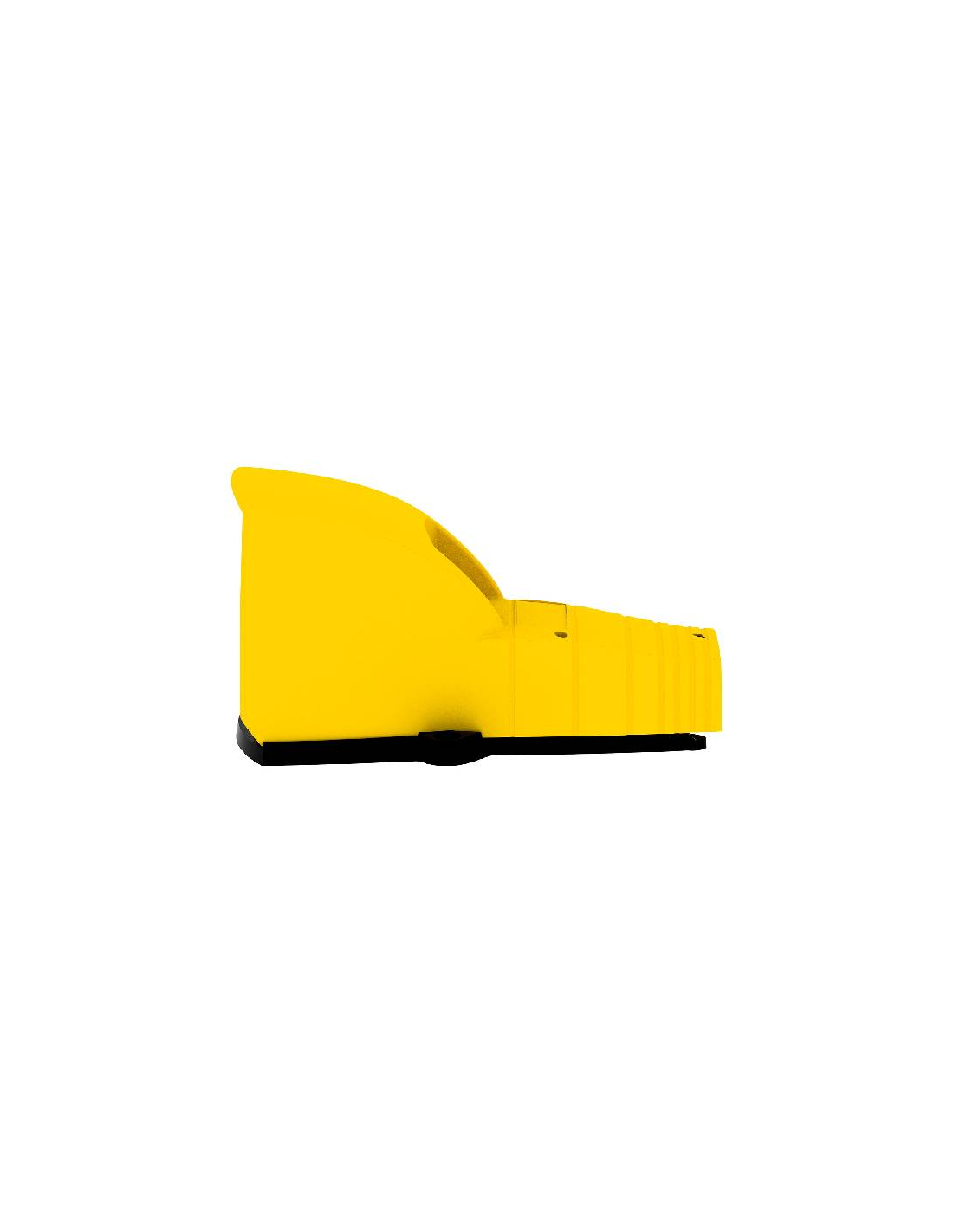

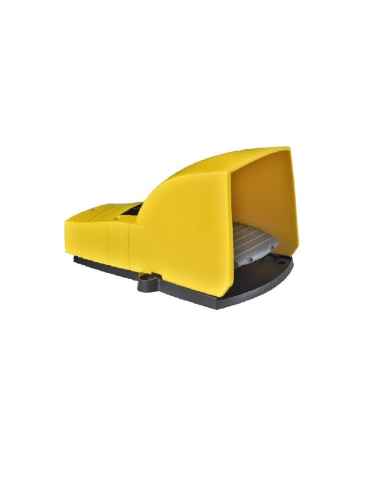

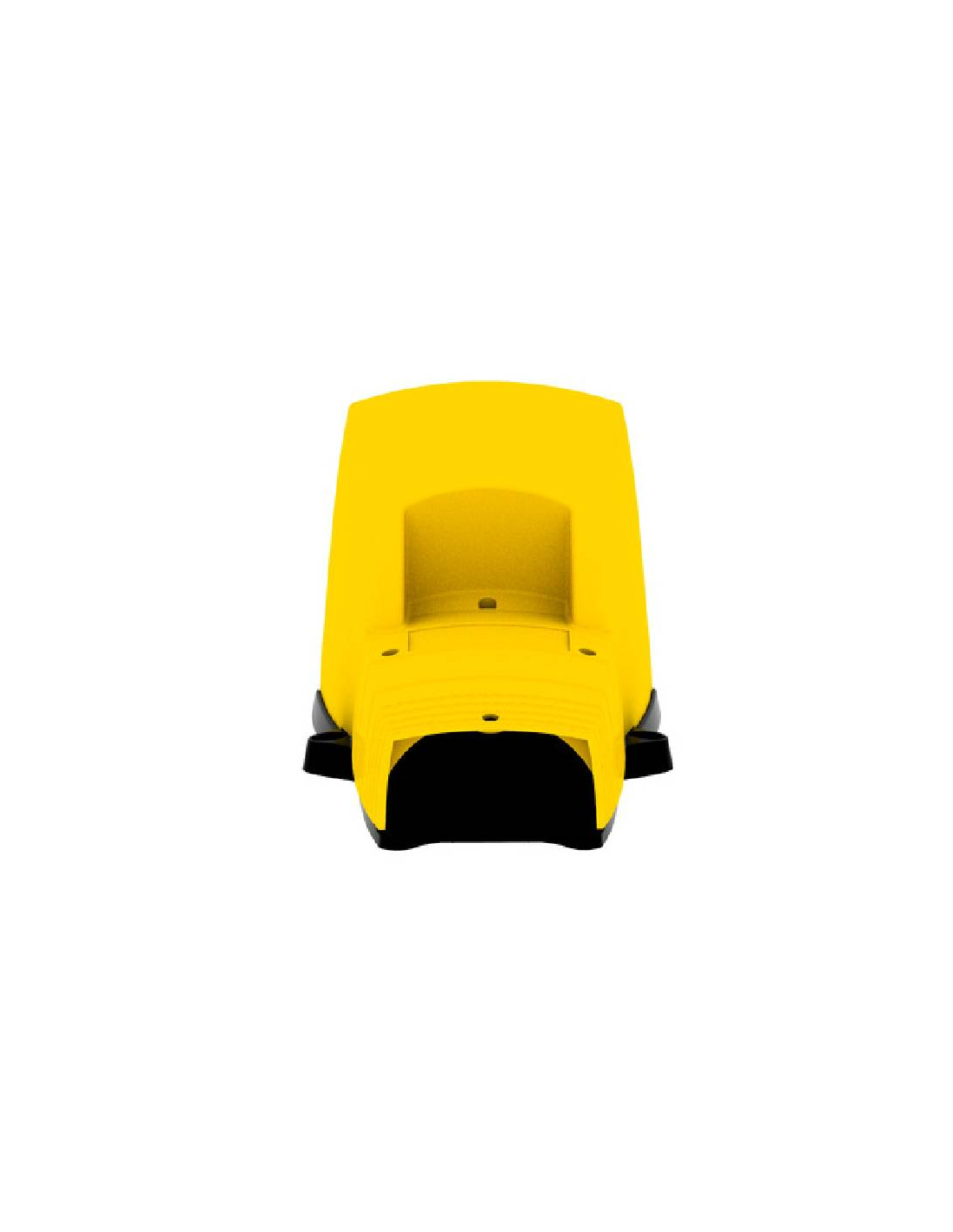

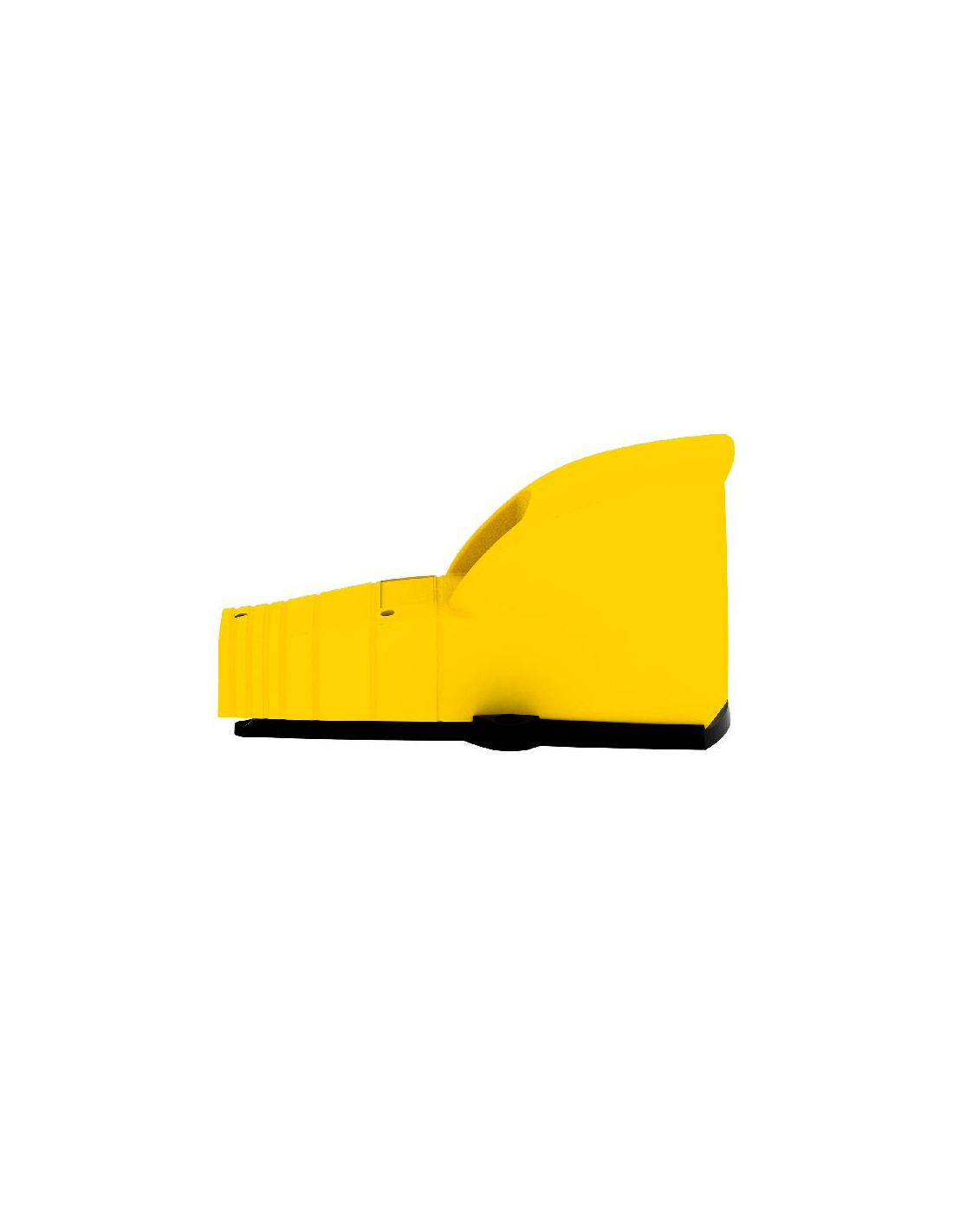

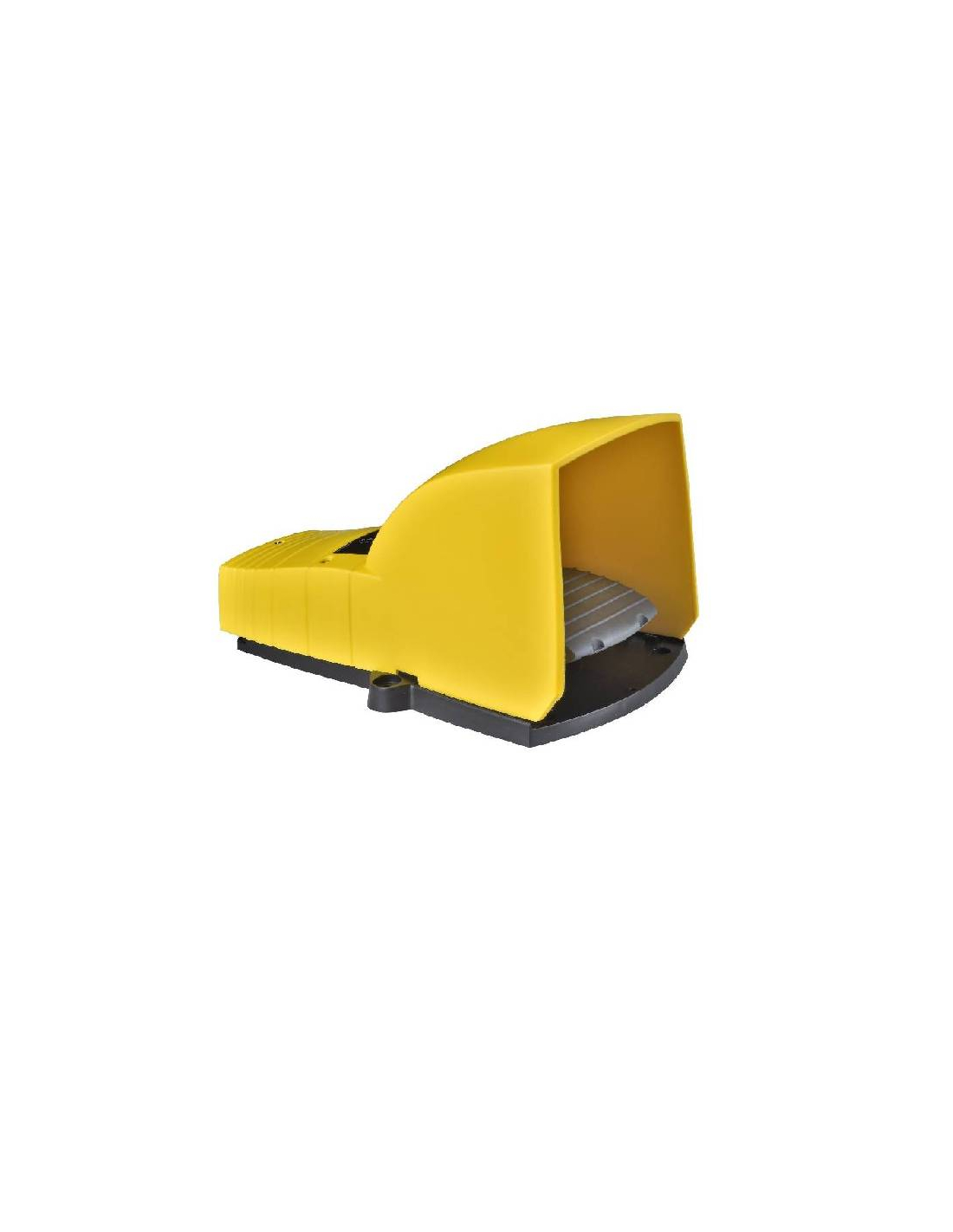

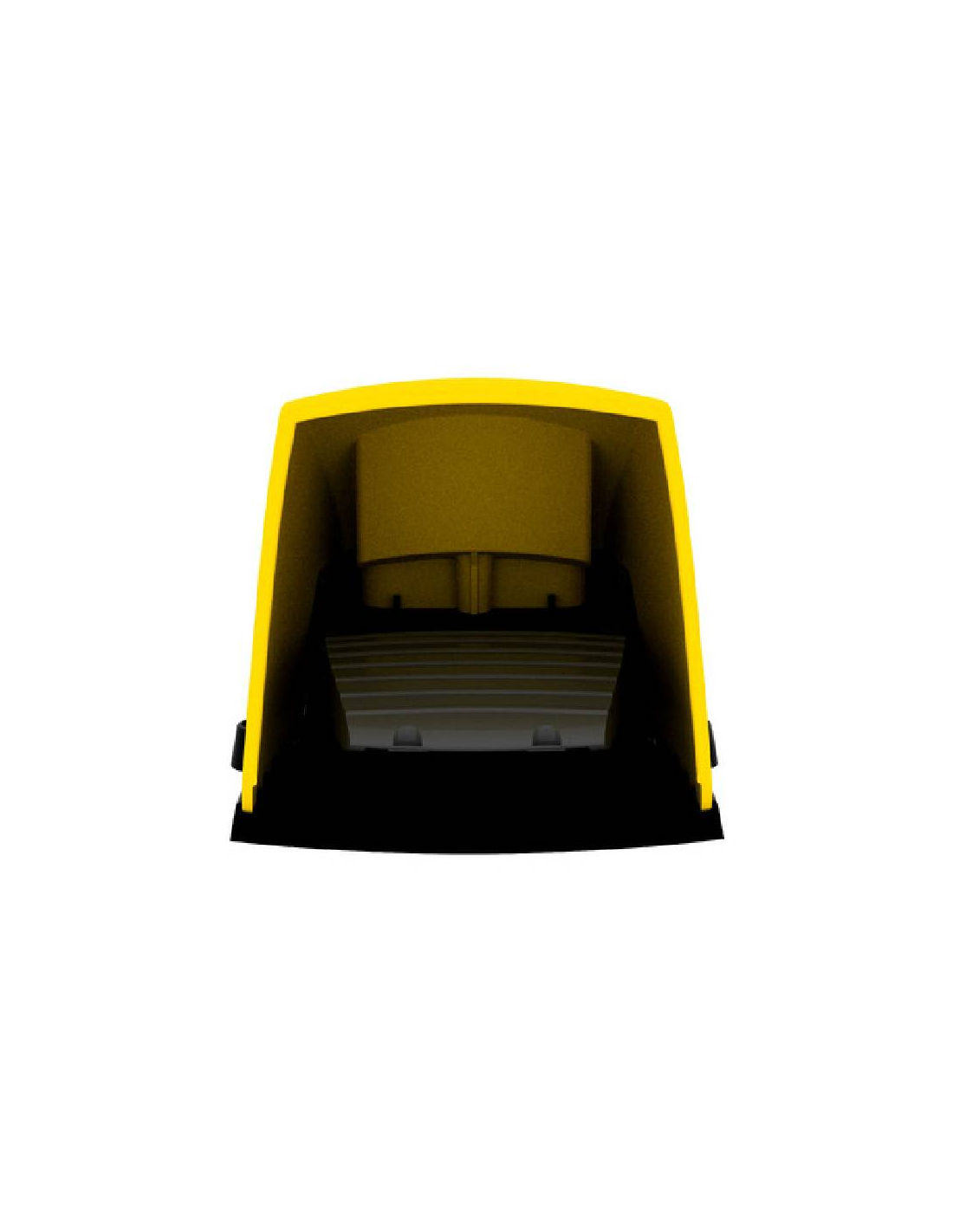

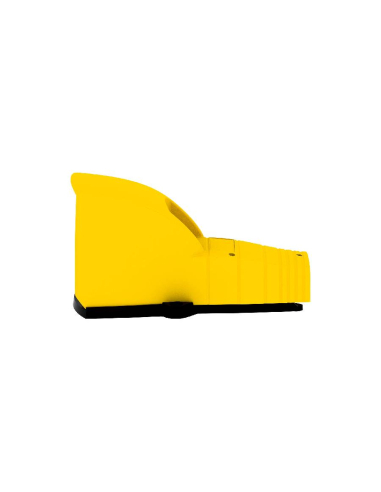

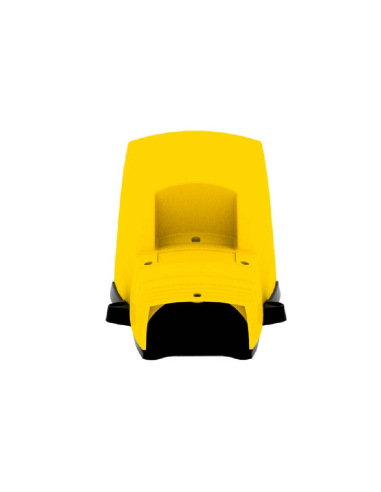

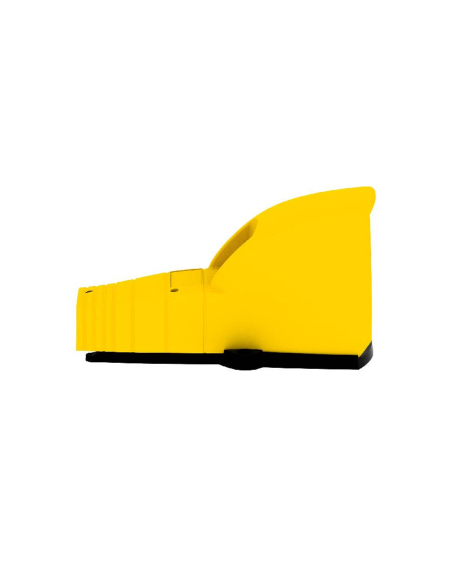

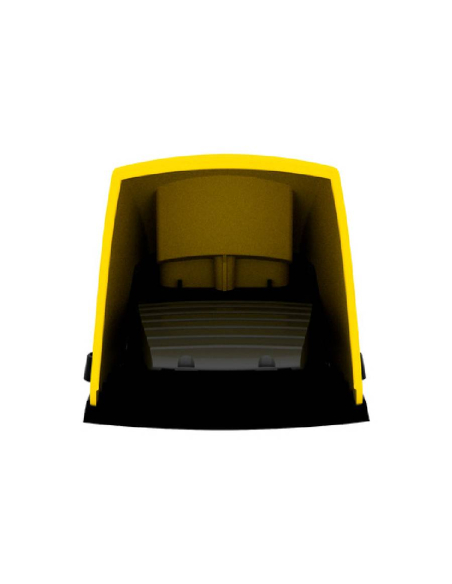

Electric pedal or instantaneous actionsafety foot switch with protection cover, with 1 open contact (NO) and 1 closed contact (NC) with positive opening operation. Housing in yellow plastic, with locking device in rest position. HARMONY XPE-Y series for use as control switch for starting, stopping and advancing industrial machines.

This type of foot pedal with protective cover is suitable to prevent unintentional actuation of the machine due to accidental pressing or falling objects. They require an action on the support plate before pressing the pedal to start the machine.


Part number: XPEY510



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-step, snap-action safety foot switch (push button) with 2 electrical contacts, one open (NO) and one closed (NC), with positive opening operation according to EN/IEC 60947-5-1. Pedal with protective cover with high resistance plastic cover in yellow color, offers a long life in demanding conditions thanks to its resistance to hydraulic oil and various greases.


This type of elements are used as control switches in industrial applications and general purpose applications for the control of start and stop of machinery. Pedal in compliance with current safety standards, suitable for applications and works of risk level, has a mechanical locking device mounted to prevent the operation of the pedal if the foot is not fully on the pedal actuation. It has a protective cover to prevent unwanted operation either accidentally by human action or by falling objects, thus avoiding unintentional starting of the machine. Its base has rubber bumpers to prevent slipping during use.

These foot-operated foot switches incorporate a snap-action NC + NO contact block with positive opening operation and are fully compliant with current standards. The foot pedal is snap action, i.e. the contacts are activated when the pedal is pressed with the foot and deactivated when the foot is removed.




Summary of features:

  • Manufacturer: SCHNEIDER
  • Ref. No.: XPEY510
  • HARMONY XPE SERIES
  • Material: Plastic
  • Color: Yellow
  • Contact operation: 1 step
  • Contact type: NO+NC
  • Positive opening: According to EN/IEC 60947-5-1
  • Rated operating current (Ie): 3A at 240V, AC-15 / 0.27A at 250V, DC-13
  • Insulation voltage rating (Ui): 500V
  • Surge withstand voltage: 6kV
  • Rated operating power
    • 10 W DC-13, operating rate
    • 4 W DC-13, operating rate
    • 7 W DC-13, operating rate
  • Operating temperature: -25...55°C
  • Mechanical durability: 5000000 cycles
  • Degree of protection: IP55 according to IEC 60529
  • Weight: 0.7kg
  • Standard: IEC 60947-5-1


Dimensions:


(1) 4 countersunk holes Ø 16
(2) 4 cover fixing screws: stainless steel. Tension torque: 1 N.m





For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

XPE-A foot switch without... XPE-A foot switch without... 2
limit switch - position detectors - electric pedals - sensors

XPE-A foot switch without cap - SCHNEIDER

Schneider
XPEA110
€40.41 (€33.96 tax excl.)
Instant action electric pedal or foot switch without protection cover , with 1 open contact (NO) and 1 closed contact (NC) with positive opening operation. Black plastic casing. HARMONY XPE-A series for use as a control switch for starting, stopping and advancing industrial machines. This type of pedal without a protective cap is suitable for applications...
XPE-M metal safety pedal... XPE-M metal safety pedal... 2
limit switch - position detectors - electric pedals - sensors

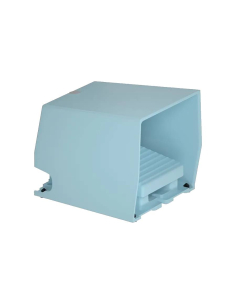

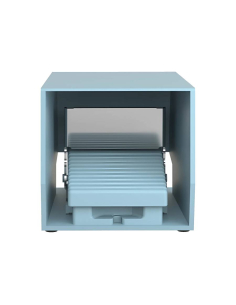

XPE-M metal safety pedal switch with cover - SCHNEIDER

Schneider
XPEM510
€149.42 (€125.56 tax excl.)
Electric pedal or instant action safety foot switch with protection cover , with 1 open contact (NO) and 1 closed contact (NC) with positive opening operation. Blue metal casing, with locking device in rest position. HARMONY XPE-M series for use as a control switch for starting, stopping and advancing industrial machines. This type of pedal with a...

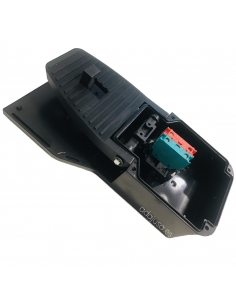

Electric pedal with...
limit switch - position detectors - electric pedals - sensors

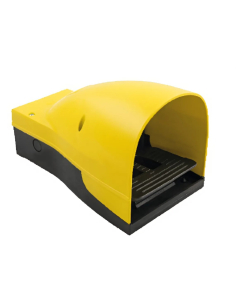

Electric pedal with protection cover - 06V0000007

Aignep
06V0000007
€35.53 (€29.86 tax excl.)
Electric pedal monostable, for general and industrial use, with protection cover and NO/NC electrical contact. Immediate action: it remains activated only while pressure is applied with the foot, returning to its initial position when released. Made of high resistance thermoplastic, ideal for machines requiring momentary control. Yellow color for maximum...

16 other products in the same category:

Short piston end FCT series with cable - Giovenzana Short piston end FCT series with cable - Giovenzana 2
limit switch - position detectors - electric pedals - sensors

Short piston end series FCT with cable - Giovenzana

Giovenzana Internacional B.V.
GIFCT2x01xxxD
€28.41 (€23.87 tax excl.)
Limit switch electric short piston, FCT series, push button drive, made of thermoplastic material, positive opening contacts. Pre-wired with 2 m cable, side exit. 2 contacts available (select from the side menu), with 2 types of action, slow or abrupt. Representative image for illustrative purposes, the article supplied will correspond to the...
Pushbutton microswitch MZS1307 adajusa.es
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1307 threaded head piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1307
€8.68 (€7.29 tax excl.)
Threaded head piston actuated microswitch, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications. Reference: MZS1307
Position limiter FFH001 - Giovenzana adajusa
limit switch - position detectors - electric pedals - sensors

Limit Switch position limiter FFH003 - Giovenzana

Giovenzana Internacional B.V.
FFH003
€106.68 (€89.65 tax excl.)
Position limiter,limit switch, for crane bridges, hoists, lifting systems and industrial systems in general, crossbars and four positions (0º/90º/180º/ 270º) without mechanical interlocking. Reference: FFH003 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.
Position limiter FFH001 - Giovenzana adajusa
limit switch - position detectors - electric pedals - sensors

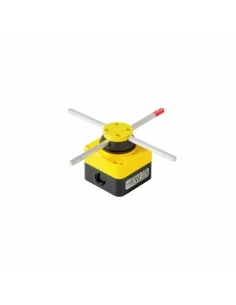

Position limiting race finish FFH001 - Giovenzana
