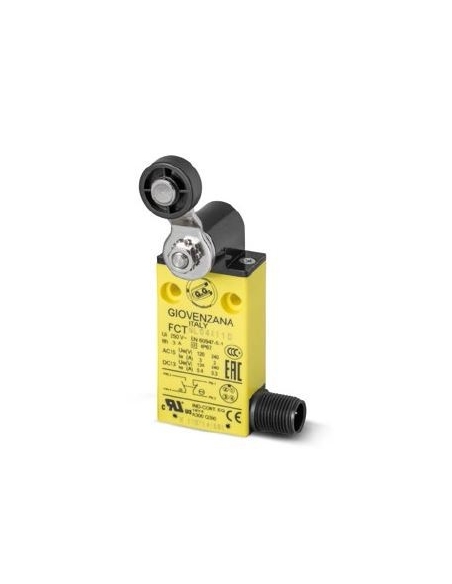

Limit Switch lever with series FCT wheel with cable - Giovenzana

€38.10 Tax included

32.02 tax excl.

GIFCT2L04Z11D

electric metal leverlimit switch with nylon wheel, FCT series, push button drive, made of thermoplastic material, positive opening contacts.

Pre-wired with 2 m cable, side exit.

2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.

Esquema contactos finales de carrera FCT

Giovenzana

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Model
  • Slow break 1NC/1NO
  • Sudden rupture 1NC/1NO

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch, FCT series, metal lever drive with wheel diameter 17.5 in nylon. The FCT series of position switches is made of thermoplastic material, with pre-set lateral output. Designed for industrial applications of automation, elevators and lifting, and general use. The installation is very simple, ensuring an extreme ease of assembly.

The limit switch is pre-wired with cable of length 2 meters and side exit.

High degree of protection, IP67, designed to be able to be used even in the most rigid environmental situations, these end-of-races have passed the IP67 immersion test, in accordance with the EN60529 standard.

Esquemas y salidas FCT Giovenzana

specifications:

  • Manufacturer: Giovenzana.
  • Series: FCT2L04.
  • Number of contacts: 2.
  • Contact with positive opening: NC contact.
  • Employment category: AC15/600.
  • Rated thermal current (Ith): 10A.
  • Nominal insulation voltage: 500Vac.
  • Minimum allowable current: 5mA to 5Vdc.
  • Insulation resistance: 100MΩ min. (DC500V).
  • Contact resistance: 25mΩ max. (Initial).
  • Drive travel for positive opening: Several.
  • Maximum switching frequency: 2 cycles/sec
  • Housing material: Polybutene terephthalate with UL approved glass fibers.
  • Actuator material: Miscellaneous.
  • Working temperature: -25ºC.. 70ºC.
  • Mechanical durability: 10,000,000 min cycles.
  • Electrical durability: 150,000 min cycles.
  • Fixation: 2xM4.
  • Output: Pre-wired with cable length 2 m, and side exit.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Degree of protection: IP-67.

Diagrama final de carrera roldana FCT Giovenzana

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Digital pressure switch 2 PNP outputs Digital pressure switch 2 PNP outputs 2
Pressure switches, vacuum switches and flowmeters

Digital pressure switch 2 PNP outputs - Metal Work

Metal Work
P42P04F1QD
€78.73 (€66.16 tax excl.)
Electronic pressure switch, digital measuring device, whose display changes the color of the screen when it reaches the adjustment pressure. It has two programmable PNP type transistor outputs. Large display. Operation with a voltage of 12-24Vdc. Dimensions 30x30x25,4mm. Manufacturer reference: P42P04F3QD - P42P04F1QD. Representative image for...
MZS1300 Giovenzana Microswitch - adajusa
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1300 fine push button - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1300
€5.97 (€5.02 tax excl.)
Microswitch actuated by a fine and short pushbutton, without any actuator. 1 switched contact (NO/NC). High load capacity and sudden break. Manufactured under strict European regulations. Equipped with a type of shot that ensures a high degree of precision. Fast and reliable independent switching suitable for use in industrial and general purpose...
Pushbutton microswitch MZS1306 short piston - Giovenzana
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1306 short piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1306
€6.52 (€5.48 tax excl.)
Short piston drive microswitch, 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Independent fast and reliable switching suitable for use in industrial and general purpose applications. Reference: MZS1306
Position limiter FFH001 - Giovenzana adajusa
limit switch - position detectors - electric pedals - sensors

Limit Switch position limiter FFH003 - Giovenzana

Giovenzana Internacional B.V.
FFH003
€99.44 (€83.56 tax excl.)
Position limiter,limit switch, for crane bridges, hoists, lifting systems and industrial systems in general, crossbars and four positions (0º/90º/180º/ 270º) without mechanical interlocking. Reference: FFH003 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.
End of stroke adjustable lever with adjustable roller 50mm FTN Series - Giovenzana
limit switch - position detectors - electric pedals - sensors

Limit Switch adjustable lever with sheave 50mm series FTN - Giovenzana

Giovenzana Internacional B.V.
GIFTN140Rxxx
€16.21 (€13.62 tax excl.)
limit switch electric adjustable lever with adjustable roldana 50mm, FTN series, made of thermoplastic material, according to EN 50047, suitable for safety applications, positive opening contacts. 2 contacts available (select from the side menu), with 2 types of action, slow or abrupt. Representative image for illustrative purposes, the article...

Customers who bought this product also bought:

FTN Series Roller Pushbutton End - Giovenzana
Product available with different options
limit switch - position detectors - electric pedals - sensors

Piston stroke end with wheel series FTN - Giovenzana

Giovenzana Internacional B.V.
GIFTN134XXX
€10.92 (€9.18 tax excl.)
End of electric stroke. piston position intrruptor with horizontal wheel, FTN series, pushbutton drive, manufactured in thermoplastic material, in accordance with EN 50047, suitable for safety applications, positive opening contacts. 2 contacts available (select from the side menu), with 2 types of performance, slow or abrupt. Representative image...
View
Short piston end FCT series with cable - Giovenzana Short piston end FCT series with cable - Giovenzana 2
limit switch - position detectors - electric pedals - sensors

Short piston end series FCT with cable - Giovenzana

Giovenzana Internacional B.V.
GIFCT2x01xxxD
€28.85 (€24.24 tax excl.)
Limit switch electric short piston, FCT series, push button drive, made of thermoplastic material, positive opening contacts. Pre-wired with 2 m cable, side exit. 2 contacts available (select from the side menu), with 2 types of action, slow or abrupt. Representative image for illustrative purposes, the article supplied will correspond to the...
End of race rod pier FTN Series - Giovenzana
Product available with different options
limit switch - position detectors - electric pedals - sensors

Limit Switch rod series FTN- Giovenzana

Giovenzana Internacional B.V.
GIFTN137XXX
€12.90 (€10.84 tax excl.)
electric rodlimit switch, FTN series, made of thermoplastic material, in accordance with EN 50047, suitable for safety applications, positive opening contacts. 2 contacts available (select from the side menu), with 2 types of action, slow or abrupt. Representative image for illustrative purposes, the article supplied will correspond to the...
View

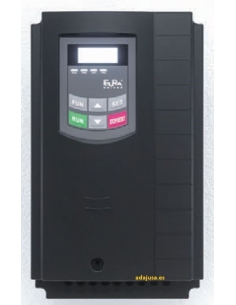

E2000 series frequency converter Eura Drives adajusa
