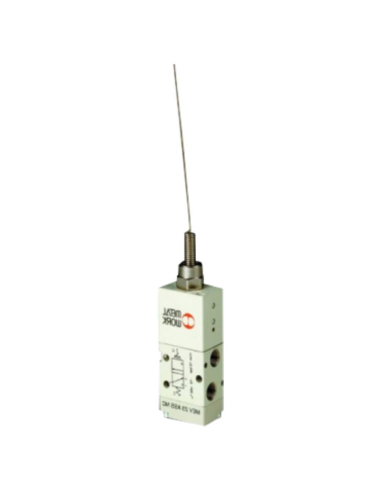

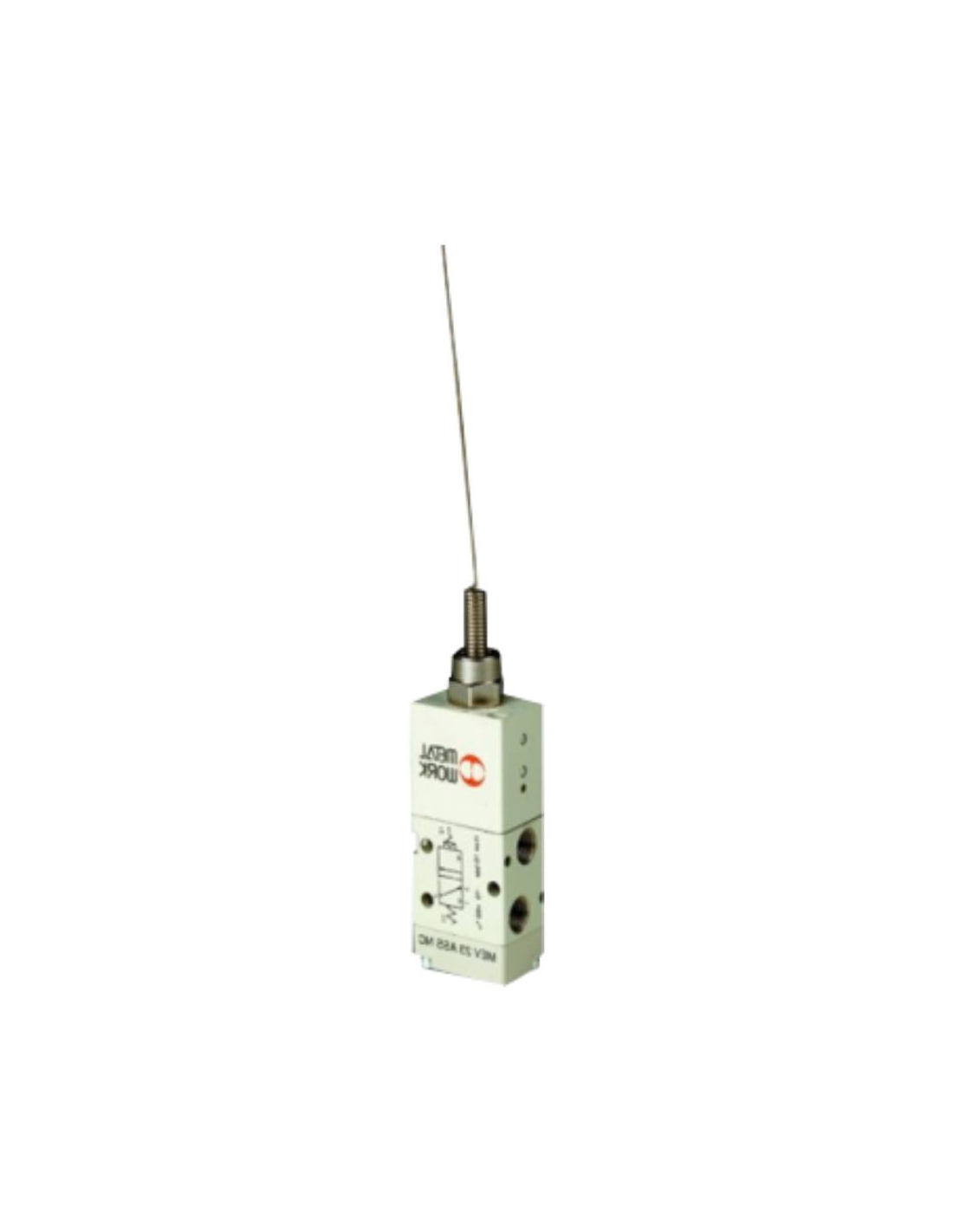

Limit Switch 1/8 3-way servo-pilot antenna - Metal Work

Name: Limit Switch 1/8 3-way servo-pilot antenna - Metal Work
Brand: Metal Work
SKU: 7001000700
Price: 64.9026 EUR
Availability: PreOrder

€64.90 Tax included

€54.54 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way. The limit switch is driven by a sensitive antenna.

Reference: 7001000700

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch pneumaticvalve, pneumatic valve with mechanical actuation by means of a sensitive antenna. The connections of the limit switch are by means of a 1/8" thread. The valve is 3-way and 2-position 3/2.

Manufacturer: Metal Work
Reference: MEV 23 ASS NC- 7001000700
Thread valve mouths: 1/8
Drive force of 6 bar:
- Direct control version : 50
- servo-piloted version : 6
Operating pressure:
- direct control version ba: Vacio ÷ 10
- Servo-piloted version ba: 2.5 ÷ 10
Operating temperature °: -10 ÷ +60
Nominal diameter m: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min : 550

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Mechanical valves sheet

Download (478.69KB)
