Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep

Name: Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep
Brand: Aignep
SKU: 02VG03NCX1
Price: 15.3629 EUR
Availability: InStock

€15.36 Tax included

€12.91 tax excl.

Limit switch pneumatic strut pneumatic 3 way and 2 positions, monostable, normally closed (NC) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency pushbutton or similar.

Series: 02V
Part no.: 02VG03NCX1

NORMATIVAMICROVALVULA

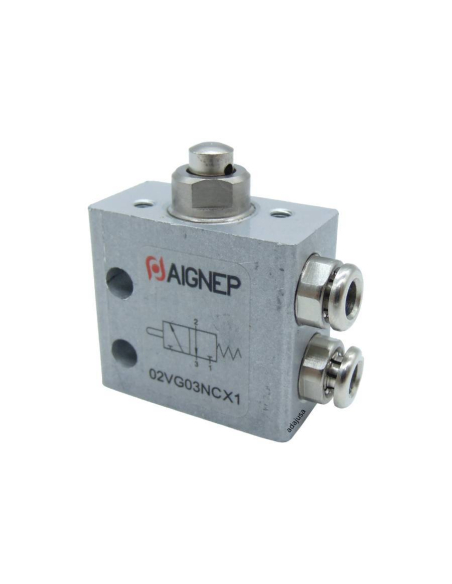

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Limit switch pneumatic strut, with quick-connect fittings on the side for 4 mm outer diameter tubing. The valve's idle state of the limit switch is normally closed (NC), i.e. when not pressed there is no air present at the outlet as air cannot pass through and when actuated it lets air pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

Part number: 02VG03NCX1
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter 4 mm side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60 °C
Flow rate at 6 bar ΔP 1 bar Nl/min: 100

02VG03NCB5

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.
