3-position key selector switch - extraction position 0 and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 m
3-position key selector switch - extraction position 0 and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 m
3-position key selector switch - extraction position 0 and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 m
3-position key selector switch - extraction position 0 and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 m

3-position key selector switch - extraction position 0 and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 m

€43.48 Tax included

€36.54 tax excl.

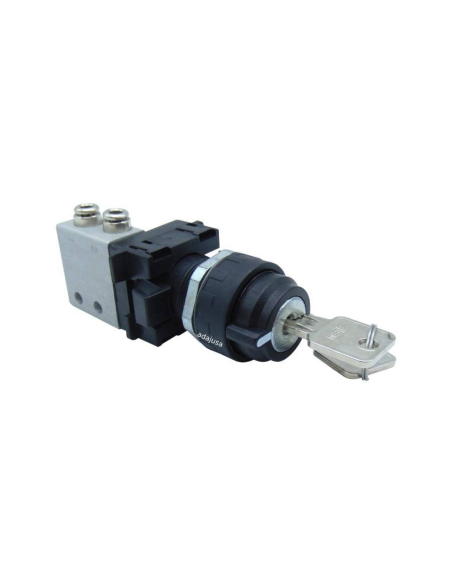

3-position key selector, key removable in position 0, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm.

ESQUEMA PULSADOR+VALVULA NC (1)

Logotipo AignepNORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

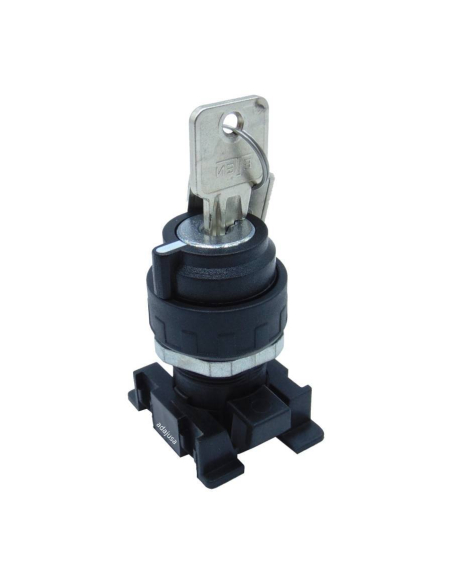

Key selector 3 positions (2-0-1). The key is extracted in position 0. Adapter for the selector included.

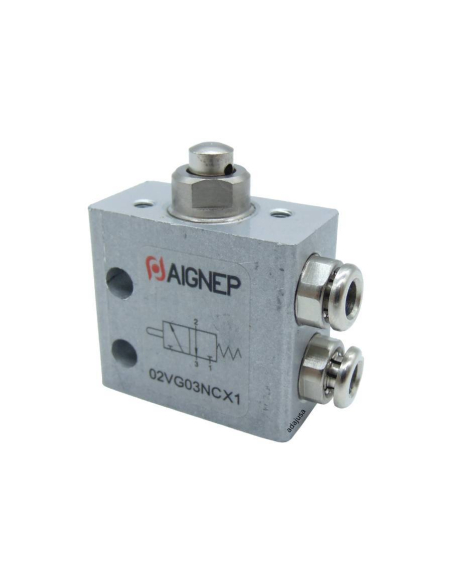

Limit switch pneumatic actuated by metal strut, with integrated side quick-connect fittings for 4mm outer diameter tube. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

    • Selector body
    • Valve adapter (supplied with the selector)
    • 2 keys
    • NC limit switch valve with fittings on the side Ø 4 mm

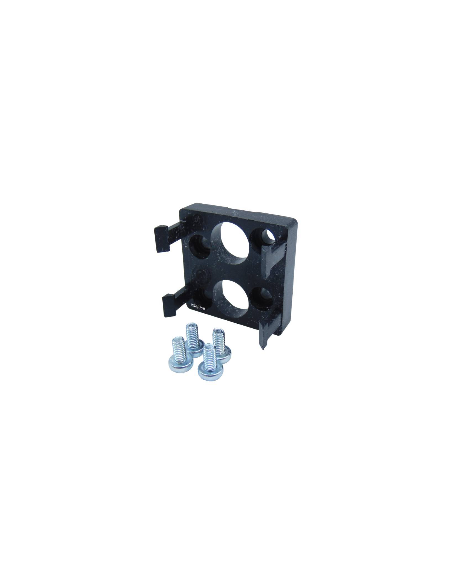

    • Adapter for interface (valve-selector) including 4 nuts.

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally open closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VG03NCX1
  • Valve Body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter 4 mm side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Installation: in any position.
With the valve adapter up to two valves can be installed at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the pushbutton



02VG03NCB5

Captura de pantalla 2023-06-02 101731


Material for professional use, install in compliance with the regulations in force at the place of installation.
