Black 3-position short cam selector with spring return and strut valve: 3/2 NC side fittings Ø 4 mm Aignep

€33.92 Tax included

28.5 tax excl.

Instead of €36.01

PK-SELCO32NC4

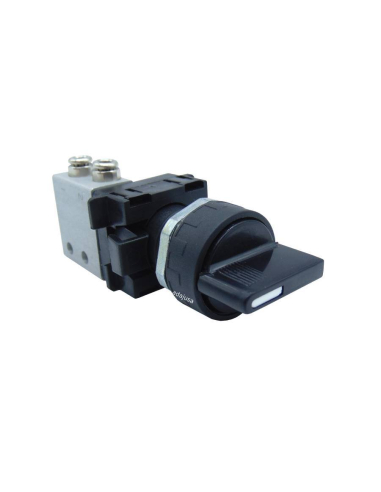

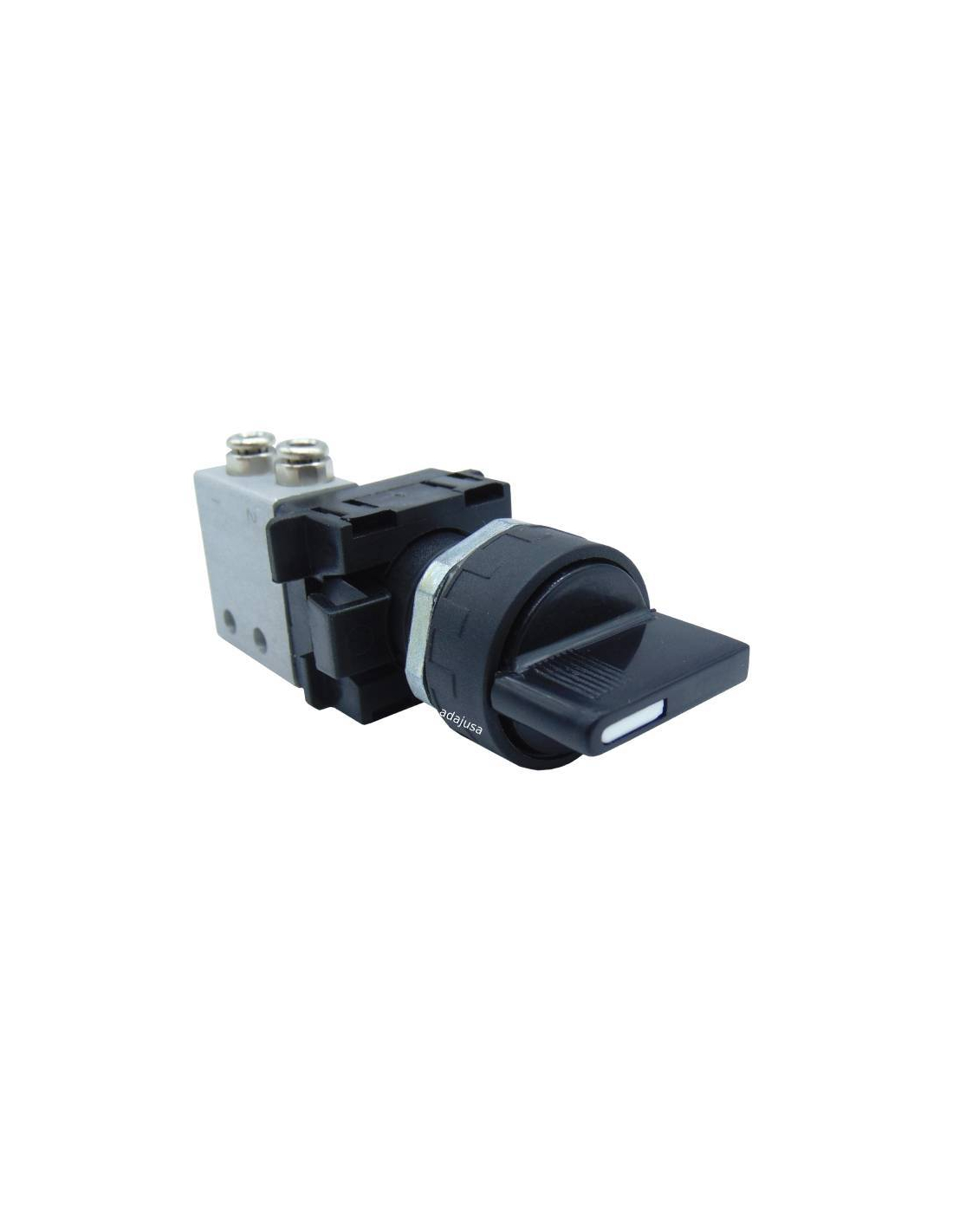

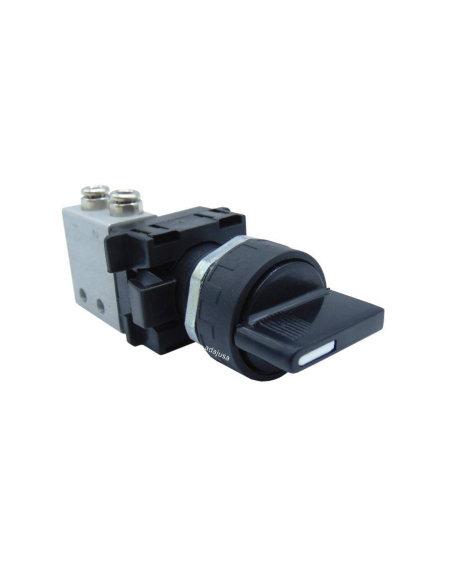

Pneumatic selector short cam 3 positions (2-0-1) with spring return, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm

ESQUEMA PULSADOR+VALVULA NC (1)

Logotipo AignepNORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

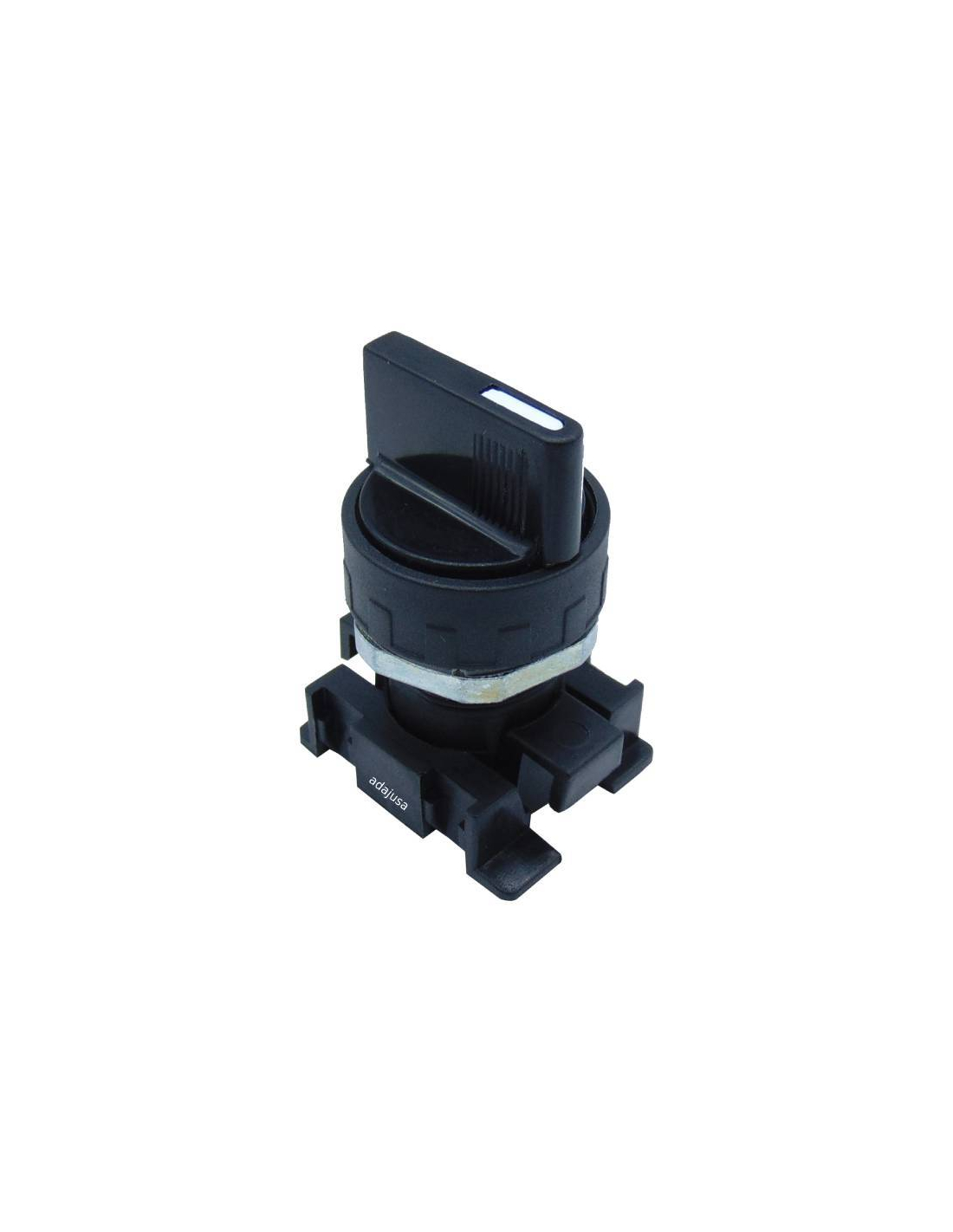

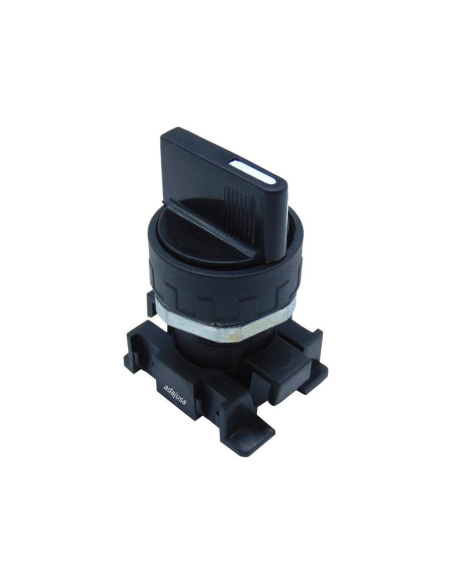

Short cam selector for limit switches, 3 positions (2-0-1) with spring return from position 1 to 0 and from 2 to 0. Adapter for the selector included.

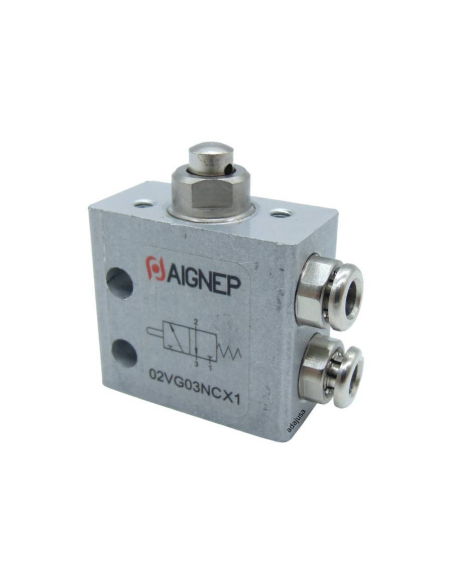

Limit switch pneumatic actuated by metal strut, with integrated side quick-connect fittings for 4mm external diameter pipe. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

    • Selector body
    • Valve adapter (supplied with the selector)
    • NC limit switch valve with fittings on the side Ø 4 mm

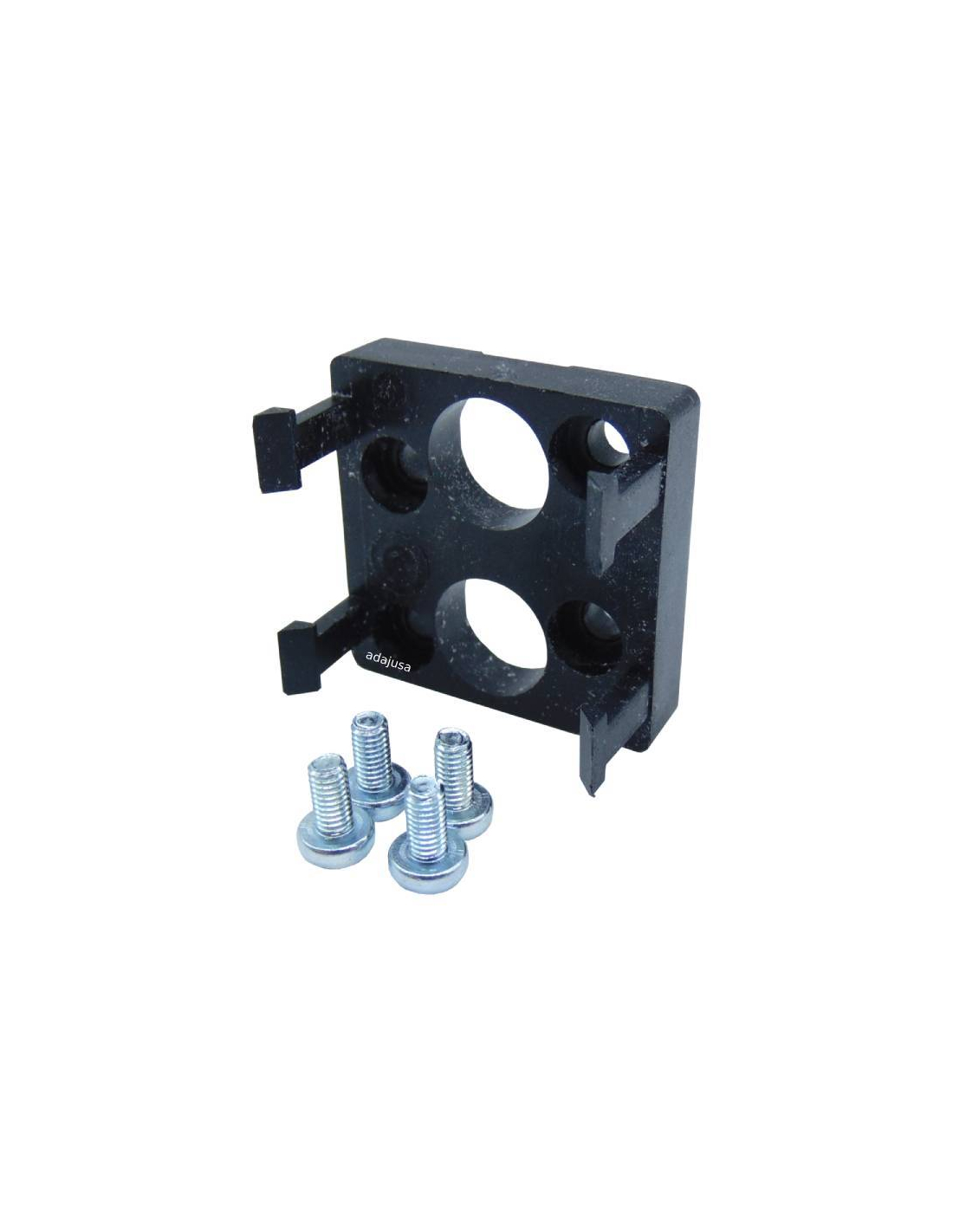

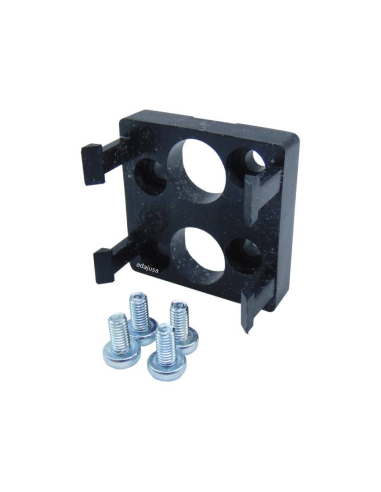

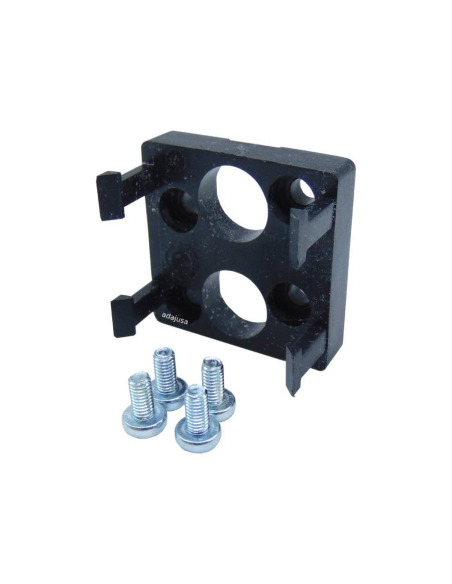

    • Adapter for interface (valve-selector) including 4 nuts.

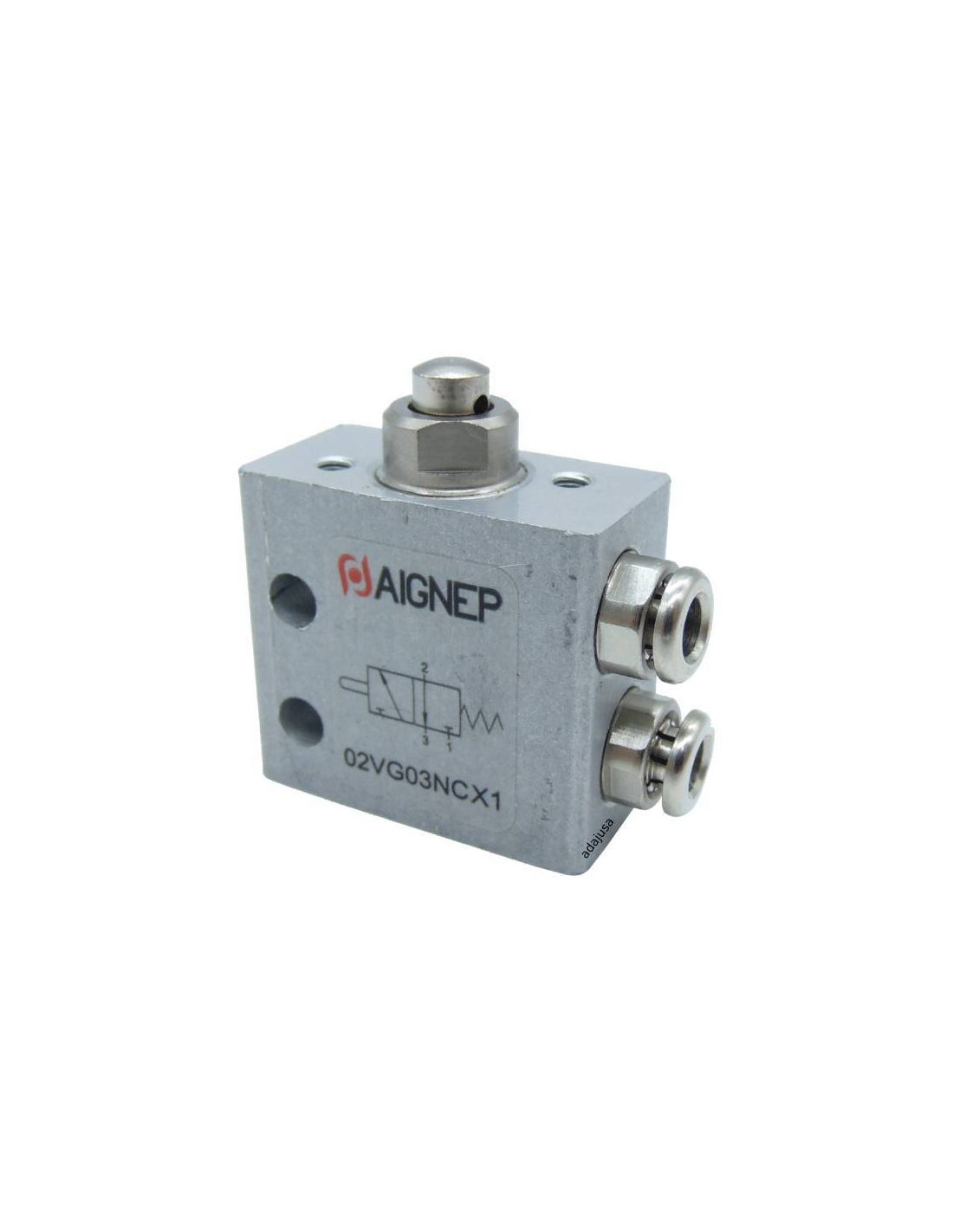

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally open closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VG03NCX1
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter 4 mm side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60 °C
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Installation: in any position.
With the valve adapter it is possible to fit up to two valves at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the push button

02VG03NCB5

Captura de pantalla 2023-06-02 104407

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Emergency stop button with locking Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA Emergency stop button with locking Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA 2
  • Pack
Pushbuttons and pneumatic actuators

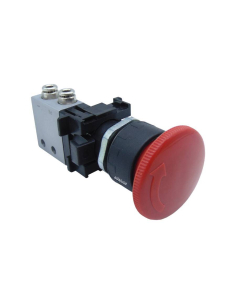

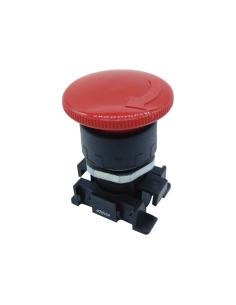

Emergency stop button with locking and valve: 3/2 NC side fittings Ø 4 mm- Aignep

Aignep
PK-EMER32NCLX
€40.81 (€34.29 tax excl.)
Pneumatic emergency stop push button 40 mm diameter with adapter for valve and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push button-valve). Representative image for illustrative purposes, the item supplied will correspond to the specifications...

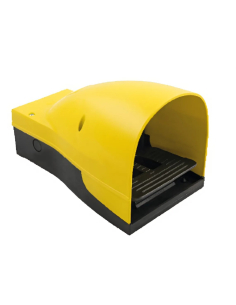

Pneumatic foot pedal with protection cover and safety mechanism 1/4 way 5 monostable Aignep 06V0000002 - PC 1/4 PI | ADA
Pushbuttons and pneumatic actuators

Pneumatic foot pedal 1/4 5/2 monostable with protection and safety mechanism - Aignep

Aignep
06V0000002
€65.30 (€54.87 tax excl.)
Pneumatic pedal with 1/4" thread of 5 way with mechanical locking for actuation and with protection cover, in high resistance plastic material, of operation monostable, the pneumatic valve is actuated while the pedal remains pressed returning to the rest position when it stops being actuated.Reference: 06V0000002 Representative image for illustrative...

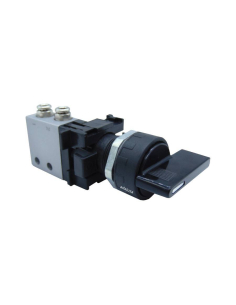

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA 2
  • Pack
Pushbuttons and pneumatic actuators

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

Aignep
PK-SELLA32NC1
€36.25 (€30.46 tax excl.)
Pneumatic selector long cam 2 positions (0-1), and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push-button-valve). Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

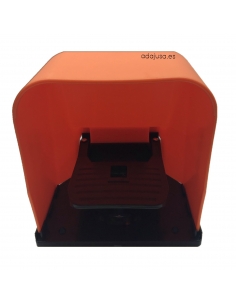

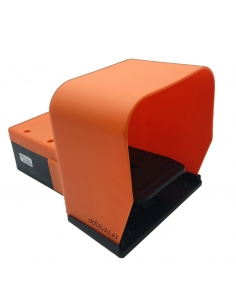

Bistable pneumatic pedal with protection - Metal Work Bistable pneumatic pedal with protection - Metal Work 2
