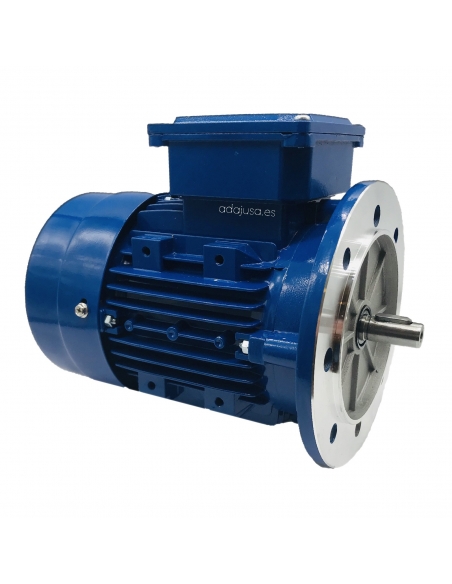

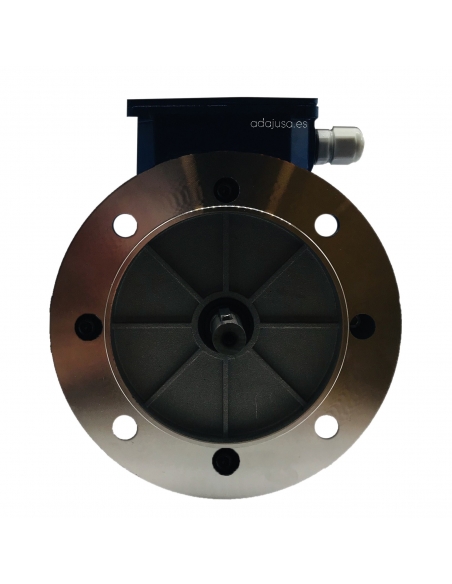

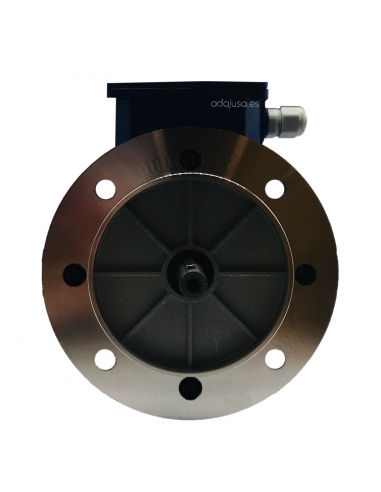

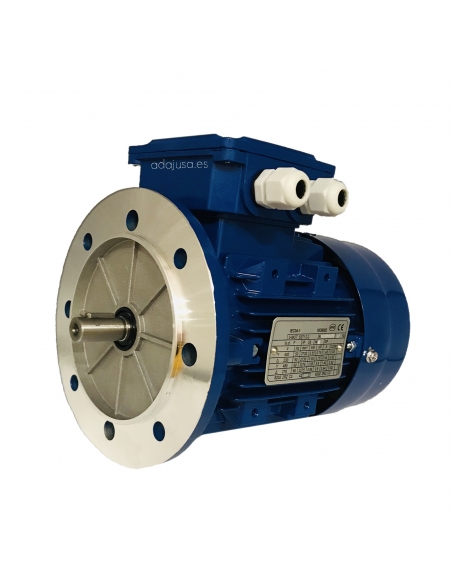

Single-phase motor 1.1Kw 1.5HP 230V 1500 rpm medium starting torque, Flange B5

€221.04 Tax included

185.75 tax excl.

SY90S4B5

Single-phase electric motor 1.1kW (1.5HP) 230V 1500 rpm Flange B5, half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-90S-4 B5
  • Voltage: 230Vac 50Hz.
  • Power: 1.1Kw - 1.5HP
  • Type: Half boot torque.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B5
  • Shaft diameter: 24mm.
  • Flange diameter: 200mm.
  • PAM Flange: 200/24
  • Size: 90(90S)
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor  1.1kw (1.5HP) 230Vac 50Hz , 4 poles (1500 rpm), B5 type flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-90S-4 B5
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.1Kw (1.5HP).
  • Medium start torque.
  • Number of poles: 4 (1500 rpm).
  • Nominal intensity (In): 6.87A
  • Starting intensity (Ia): 30
  • Revs: 1410 rpm.
  • Yield: 71%
  • Power factor (Cos): 0.98
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 0.35
  • Permanent capacitor: 40uF/450V
  • Service: continuous S1
  • Degree of protection: IP55.
  • Clamping type: Flange B5.
  • Shaft Diameter: .24mm
  • Flange Diameter: 200mm
  • PAM flange: 200/24.
  • Enclosure size: 90 (90S)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 73.
  • Weight: 14.5 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B5

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Bom dia. Eu preciso de um motor monofásico de 1.1 kW de 1500 rpm
O diâmetro da flange onde aperta o motor de exterior tem 160mm centro de furo tem 130. Gostaria de saber se é possível arranjar um motor com estas dimensões.
Answer

Bom dia,

Obrigado pelo seu contacto.

Verificámos que o motor com referência SY-90S-4 B5 possui uma flange B5 PAM 200/24, com 200 mm de diâmetro exterior e 165 mm entre centros dos furos.

No entanto, as medidas que nos indicou – 160 mm de diâmetro exterior e 130 mm entre centros – correspondem a uma flange B14 grande (FF160). Infelizmente, este motor não é compatível com essas dimensões.

Neste momento, não dispomos de motores monofásicos com flange FF160 na nossa loja online. Caso tenha possibilidade de adaptar a fixação, podemos sugerir-lhe motores com flange B5 ou outros formatos.

Ficamos ao dispor para qualquer esclarecimento adicional.

Atentamente,
Adajusa
www.adajusa.pt

Ilídio Daniel on 07/29/2025 08:40:04

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Single-phase electric motor 0.37Kw 0.5HP 230V B3 foot 1500 half torque start | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot)

Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY7124B3
€113.28 (€95.19 tax excl.)
Single-phase electric motor 0.37kW (0.5HP) 230V 1500 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-71M2-4 B3 Voltage: 230Vac 50Hz. Power: 0.37Kw - 0.5HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 14mm. Size: 71(71M2) Energy...
Single-phase electric motor 0.09Kw 0.12HP 230V B5 1500 medium torque start | ADAJUSA | price Single-phase electric motor 0.09Kw 0.12HP 230V B5 1500 medium torque start | ADAJUSA | price 2
Single-phase electric motors 1500 rpm medium starting torque

Single-phase motor 0.09Kw 0.12HP 230V 1500 rpm half starting torque, B5 flange

Generico-MOT
SY5624B5
€82.55 (€69.37 tax excl.)
Single-phase electric motor 0.09kW (0.12HP) 230V 1500 rpm B5 flange , medium starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-56M2-4 B5 Voltage: 230Vac 50Hz. Power: 0.09Kw – 0.12HP Type: Half starting torque. Number of poles: 4. Revolutions: 1500 rpm . Flange: B5 Shaft diameter: 9mm. flange diameter:...
Single-phase electric motor 0,37Kw 0,5CV 230V B34 1500 half starting torque | ADAJUSA | price Single-phase electric motor 0,37Kw 0,5CV 230V B34 1500 half starting torque | ADAJUSA | price 2
Single-phase motors 1500 rpm flange B34 (Legs)

Single-phase motor 0,37Kw 0,5CV 230V 1500 rpm half starting torque, Flange B34

Generico-MOT
SY7124B34
€123.65 (€103.91 tax excl.)
Single-phase electric motor 0.37kW (0.5CV) 230V 1500 rpm B34 flange, half starting torque, aluminum housing. Manufactured under European IEC standards.A motor with flange B34 is a motor that has a front flange B4 and feet (B3 flange). Part number: SY-71M2-4 B34 Voltage: 230Vac 50Hz Power: 0,37Kw - 0,5CV Type: Half starting torque Number of poles:...
Single-phase electric motor 0.75Kw 1HP 230V B3 foot 1500 half torque start | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot)

Single-phase motor 0.75Kw 1HP 230V 1500 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY8024B3
€154.33 (€129.69 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-80M2-4 B3 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 19mm. Size: 80(80M2) Energy...
Single-phase electric motor 0.75Kw 1HP 230V B14 1500 half torque start | ADAJUSA
Single-phase motors 1500 rpm flange B14

Single-phase motor 0.75Kw 1HP 230V 1500 rpm medium starting torque, Flange B14

Generico-MOT
SY8024B14
€158.96 (€133.58 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B14, half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-80M2-4 B14 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B14 Shaft diameter: 19mm. Flange diameter: 120mm. PAM...
Single-phase electric motor 0,37Kw 0,5CV 230V B35 1500 half starting torque | ADAJUSA | price
Single-phase motors 1500 rpm flange B35 (Legs)

Single-phase motor 0.37Kw 0.5CV 230V 1500 rpm half starting torque, B35 flange

Generico-MOT
SY7124B35
€123.65 (€103.91 tax excl.)
Single-phase electric motor 0.37kW (0.5CV) 230V 1500 rpm B35 flange, half starting torque, aluminum housing. Manufactured under European IEC standards.A motor with flange B35 is a motor that has a front flange B5 and feet (B3 flange). Part number: SY-71M2-4 B35 Voltage: 230Vac 50Hz Power: 0,37Kw - 0,5CV Type: Half starting torque Number of poles:...

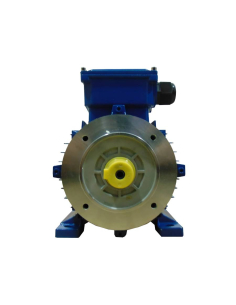

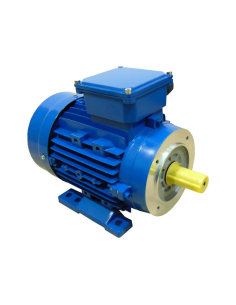

Single-phase electric motor 0,12Kw 0,16CV 230V B34 1500 half starting torque | ADAJUSA | price Single-phase electric motor 0,12Kw 0,16CV 230V B34 1500 half starting torque | ADAJUSA | price 2
Single-phase motors 1500 rpm flange B34 (Legs)

Single-phase motor 0.12Kw 0.16CV 230V 1500 rpm half starting torque, Flange B34

Generico-MOT
SY6314B34
€86.76 (€72.91 tax excl.)
Single-phase electric motor 0.12kW (0.16CV) 230V 1500 rpm B34 flange, half starting torque, aluminum housing. Manufactured under European IEC standards.A motor with flange B34 is a motor that has a front flange B4 and feet (B3 flange). Part number: SY-63M1-4 B34 Voltage: 230Vac 50Hz Power: 0,12Kw - 0,16CV Type: Half starting torque Number of...
Single-phase electric motor 0.55Kw 0.75HP 230V B5 1500 half torque start | ADAJUSA Single-phase electric motor 0.55Kw 0.75HP 230V B5 1500 half torque start | ADAJUSA 2
Single-phase electric motors 1500 rpm medium starting torque

Single-phase motor 0.55Kw 0.75HP 230V 1500 rpm half starting torque, Flange B5

Generico-MOT
SY8014B5
€150.09 (€126.13 tax excl.)
Single-phase electric motor 0.55kW (0.75HP) 230V 1500 rpm Flange B5, half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-80M1-4 B5 Voltage: 230Vac 50Hz. Power: 0.55Kw - 0.75HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 19mm. Flange diameter: 200mm. PAM...

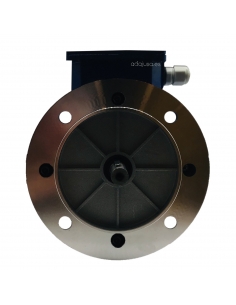

Single-phase electric motor 0.12Kw 0.16HP 230V B5 1500 half torque start | ADAJUSA Single-phase electric motor 0.12Kw 0.16HP 230V B5 1500 half torque start | ADAJUSA 2
Single-phase electric motors 1500 rpm medium starting torque

Single-phase motor 0.12Kw 0.16HP 230V 1500 rpm half-torque starter, Flange B5

Generico-MOT
SY6314B5
€81.86 (€68.79 tax excl.)
Single-phase electric motor 0.12kW (0.16HP) 230V 1500 rpm Flange B5, half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY6314B5 Voltage: 230Vac 50Hz. Power: 0.12Kw - 0.16HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 11mm. Flange diameter: 140mm. PAM...
Single-phase electric motor 0,18Kw 0,25CV 230V B35 1500 half starting torque | ADAJUSA | price
Single-phase motors 1500 rpm flange B35 (Legs)

Single-phase motor 0,18Kw 0,25CV 230V 1500 rpm half starting torque, B35 flange

Generico-MOT
SY6324B35
€91.11 (€76.56 tax excl.)
Single-phase electric motor 0.18kW (0.25CV) 230V 1500 rpm B35 flange, half starting torque, aluminum housing. Manufactured under European IEC standards.A motor with flange B35 is a motor that has a front flange B5 and feet (B3 flange). Part number: SY-63M2-4 B35 Voltage: 230Vac 50Hz Power: 0,18Kw - 0,25CV Type: Half starting torque Number of...
Single-phase electric motor 0.25Kw 0.33HP 230V B5 1500 half torque start | ADAJUSA Single-phase electric motor 0.25Kw 0.33HP 230V B5 1500 half torque start | ADAJUSA 2
Single-phase electric motors 1500 rpm medium starting torque

Single-phase motor 0.25Kw 0.33HP 230V 1500 rpm medium starting torque, Flange B5

Generico-MOT
SY7114B5
€110.53 (€92.88 tax excl.)
Single-phase electric motor 0.25kW (0.33HP) 230V 1500 rpm Flange B5, half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-71M1-4 B5 Voltage: 230Vac 50Hz. Power: 0.25Kw - 0.33HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 14mm. Flange diameter: 160mm. PAM...

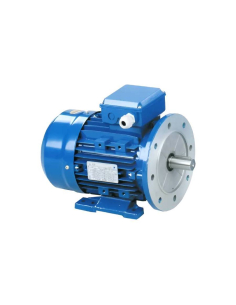

Single-phase electric motor 0,25Kw 0,33CV 230V B35 1500 half starting torque | ADAJUSA | price
