Single-phase Gear motor 0.12kW 0.16HP 230Vac 1500 rpm ratio 40 T40 (35rpm)

€151.70 Tax included

127.48 tax excl.

Instead of €164.23

PK-9MR040012404M

Single-phase Gear motor 0.12kw 0.16HP 230Vac, reducer size 40 with reduction ratio I:40 that allows output turns of approximately 35rpm.

Motor: Single-phase 0.12Kw 230Vac 1500rpm
Reducer : size 40 I:40
Output laps: 35
For output shaft: 18mm

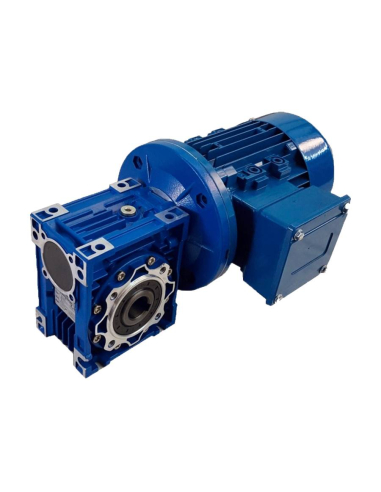

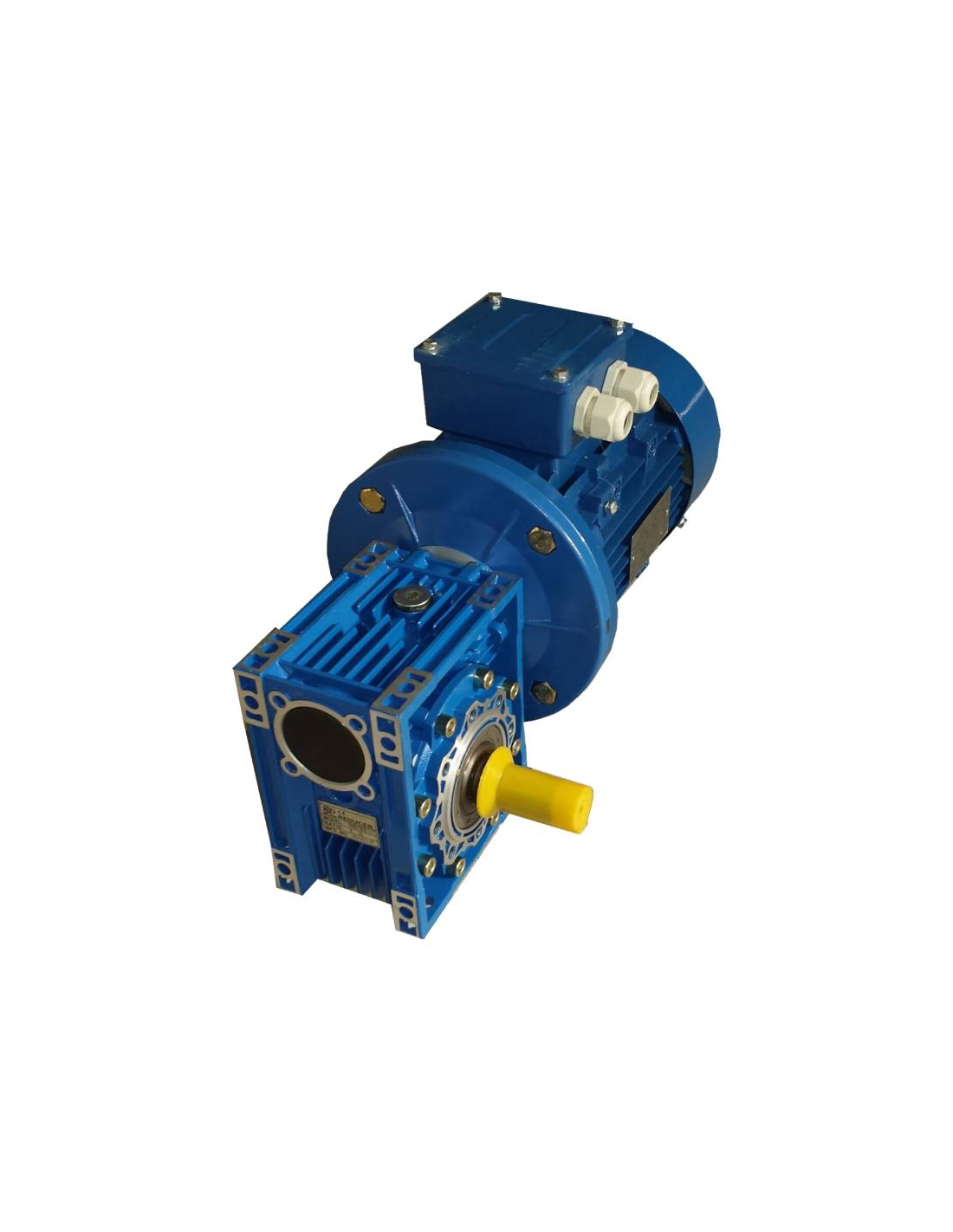

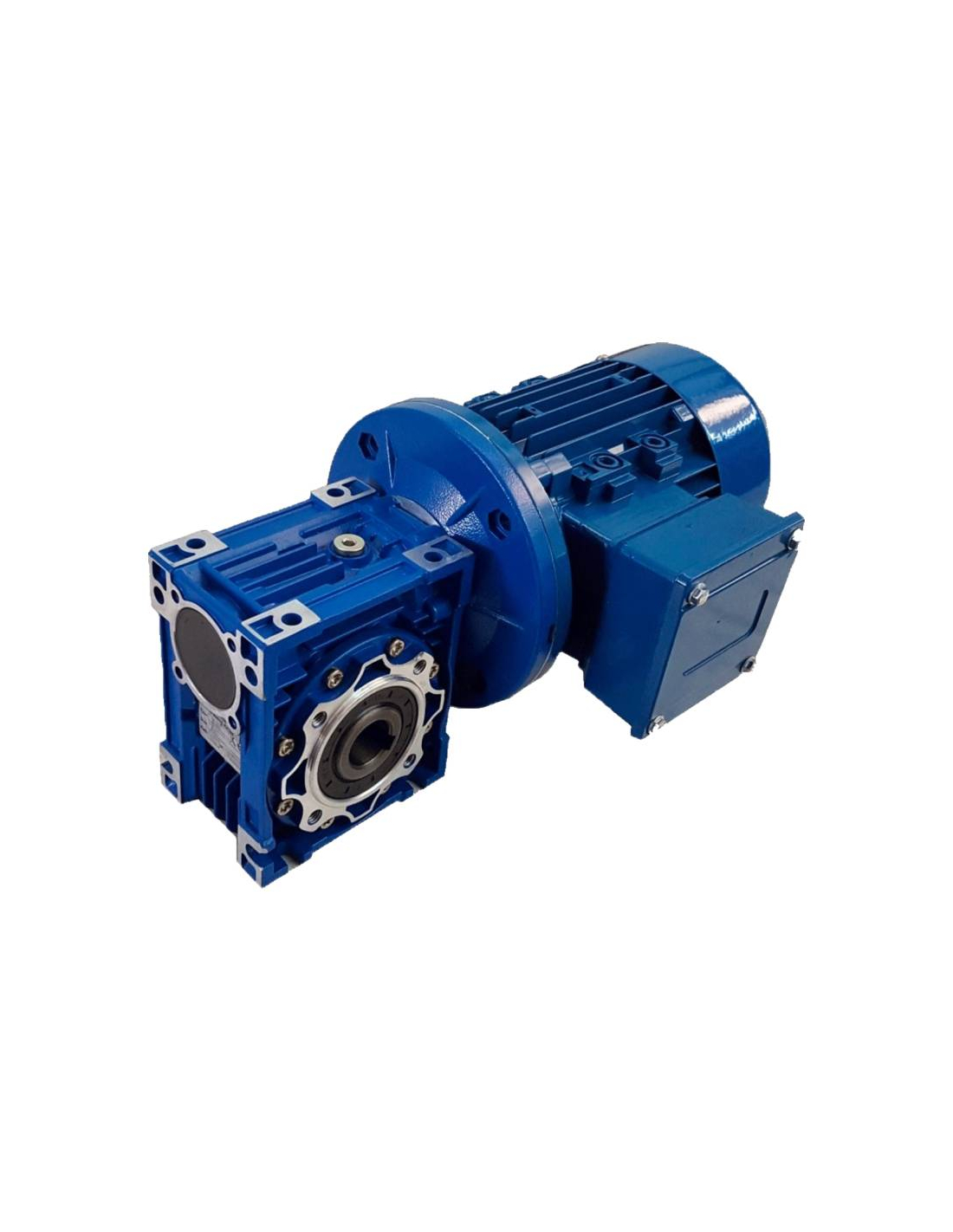

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

Single-phase electric motor 0.12Kw 0.16HP 230V B14 1500 half torque start | ADAJUSA

Single-phase motor 0.12Kw 0.16HP 230V 1500 rpm medium starting torque, Flange B14

€81.86

Endless crown reducer Size 40 Flange PAM 90/11 - Motor housing 63 B14

Worm Reducer Size 40 PAM 90/11 flange - Motor casing 63 B14 Reduction ratio-40

€82.37

1 question about the product

Privacy

Shipments

Returns

Single-phase Gear motor 0.12kw 0.16HP 230Vac, reducer size 40 with reduction ratio I:40 that allows an output of approximately 35rpm at its output.

Engine technical characteristics:

Motor: Single-phase half starting torque.
Rated voltage: 230Vac 50Hz
Intensity (In): 1.03 A.
Rated power: 0.12Kw. (0.16HP).
Medium starting torque.
Revolutions: 1400 rpm .

Technical characteristics of the reducer:

Reducer type: crown worm.
Reducer size: 40
Reduction ratio: 40
Final turns: 35 rpm .
Output torque: Nm.
Service factor:
For output shaft: Ø18mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site

Dimensions worm gear crown

Gearbox dimensions worm gear crown gear

Download (1.75MB)

Gearbox replacement guide

Guide for gearbox replacement worm gear corona

Download (2.3MB)

Questions

Question

Welches Betriebsdrehmonent besitzt der Motor an der Abtriebswelle (am Getriebe) und welches Anlaufdrehmoment hat der Motor ander Abtriebswelle (am Getriebe)?

Answer

Guten Tag,

vielen Dank für Ihre Anfrage. Im Folgenden finden Sie die Berechnung des ungefähren Betriebs- und Anlaufmoments an der Abtriebswelle des Getriebemotors, basierend auf den technischen Daten des Motors und des Untersetzungsgetriebes.

Technische Daten

Motorleistung: 0,12 kW (0,16 PS)
Versorgungsspannung: 230 V AC (Einphasenmotor)
Nenndrehzahl des Motors: 1400 U/min
Übersetzungsverhältnis: 1:40
Ausgangsdrehzahl: ca. 35 U/min
Reduziergetriebe: Schneckengetriebe, Baugröße 40
Wellen-Ø am Ausgang: 18 mm
Anlaufmoment: „halbes Anlaufmoment“ → reduziert, ca. 50–70 % des Nenndrehmoments
Wirkungsgrad Schneckengetriebe (typisch): ca. 60 %

Drehmomentberechnung

Formel für das Drehmoment:

M (Nm) = (9550 × P [kW]) ÷ n [U/min]

Drehmoment direkt am Motor (1400 U/min):

M_motor = (9550 × 0,12) ÷ 1400 ≈ 0,82 Nm

Drehmoment an der Abtriebswelle (35 U/min), inkl. Wirkungsgrad:

M_abtrieb = (9550 × 0,12 × 0,6) ÷ 35 ≈ 19,6 Nm

Geschätztes Anlaufmoment an der Abtriebswelle

Bei 50 % des Nennmoments:

M_start = 0,5 × 19,6 ≈ 9,8 Nm

Bei 70 % des Nennmoments:

M_start ≈ 13,7 Nm

Zusammenfassung

Betriebsdrehmoment (Ausgang): ca. 19,6 Nm
Anlaufdrehmoment (Ausgang): ca. 10–14 Nm (je nach Motorausführung)

Bitte beachten Sie, dass diese Werte Näherungen auf Basis typischer Wirkungsgrade und Standardberechnungen sind. Der tatsächliche Wert kann je nach Anwendung, Umgebung und Einbaubedingungen leicht variieren.

Bei weiteren Fragen stehen wir Ihnen gerne zur Verfügung.

Mit freundlichen Grüßen
Adajusa
https://adajusa.es

Matthias on 07/26/2025 09:10:49
