• Pack

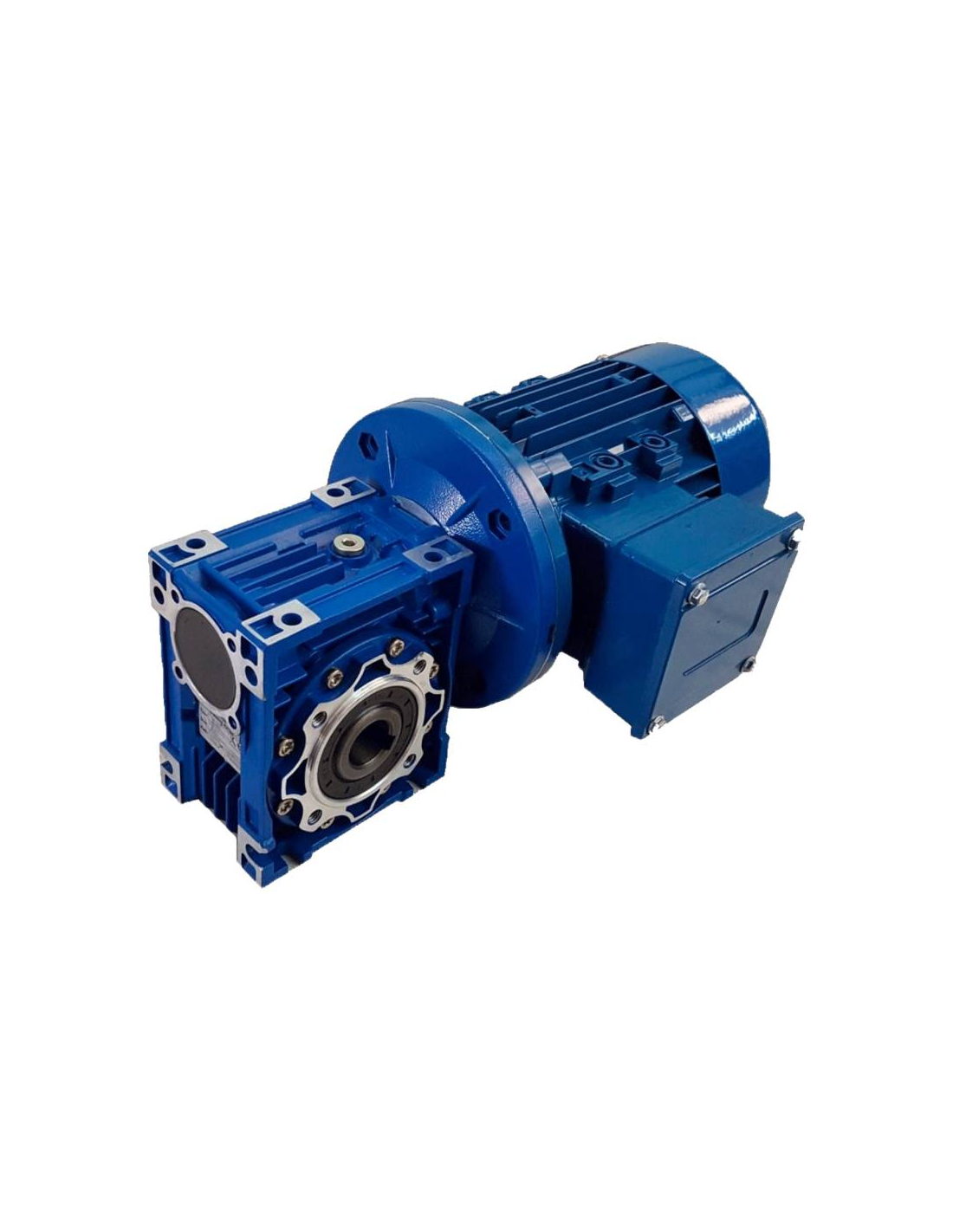

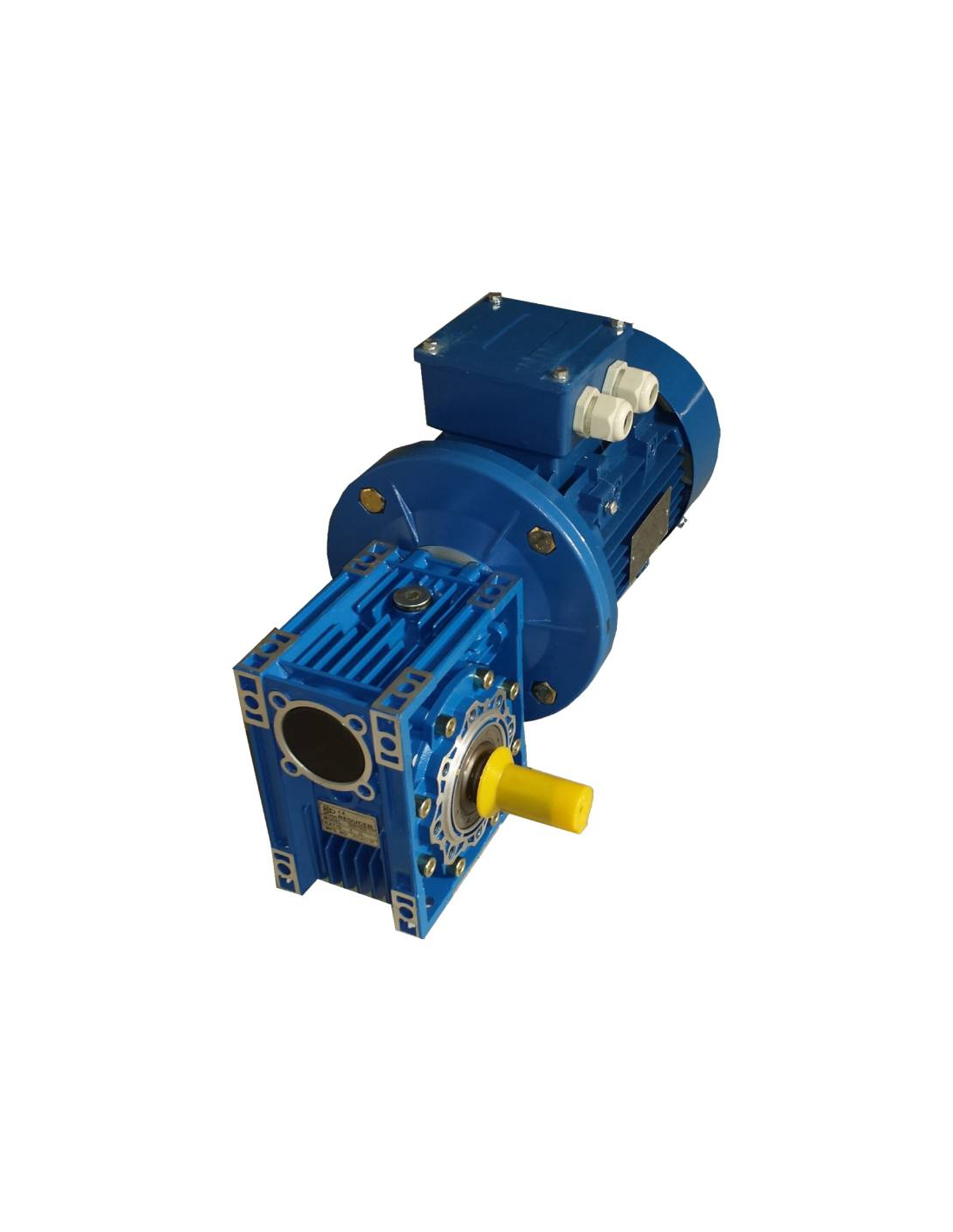

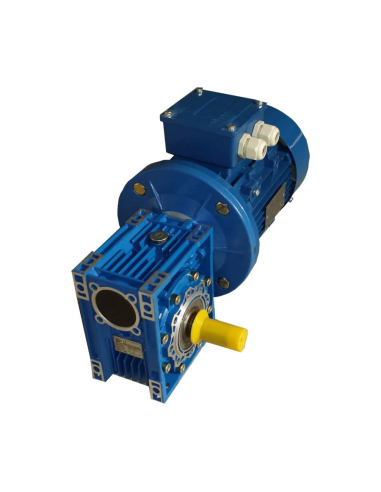

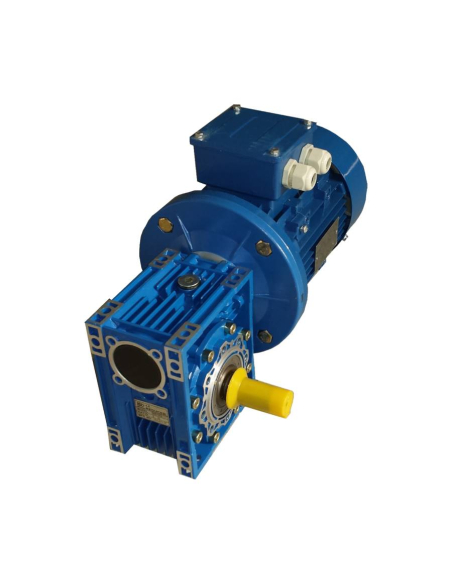

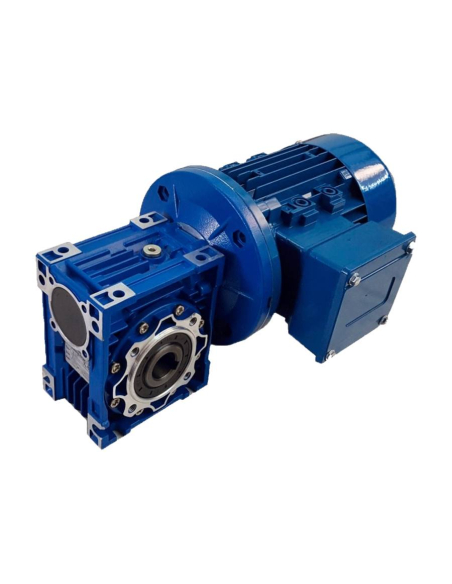

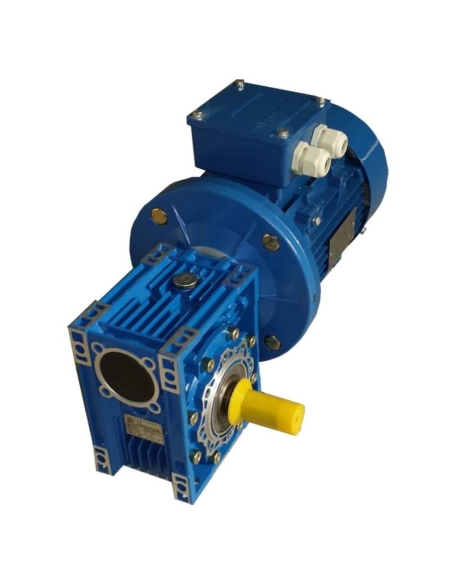

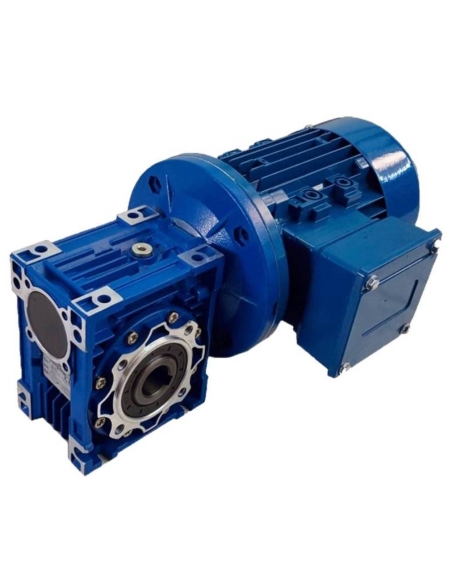

Single-phase Gear motor 0.12kW 0.16HP 230Vac 1500 rpm ratio 50 T40 (28rpm)

€151.70 Tax included

€127.48 tax excl.

Instead of €164.23

PK-9MR040012504M

Single-phase Gear motor 0.12kw 0.16HP 230Vac, reducer size 40 with reduction ratio I:50 that allows output turns of approximately 28rpm.

  • Motor: Single-phase 0.12Kw 230Vac 1500rpm
  • Reducer : size 40 I:50
  • Output laps: 28
  • For output shaft: 18mm


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

1 question about the product
Privacy
Shipments
Returns


Single-phase Gear motor 0.12kw 0.16HP 230Vac, reducer size 40 with reduction ratio I:50 that allows an output of approximately 28rpm at its output.

Engine technical characteristics:

  • Motor: Single-phase half starting torque.
  • Rated voltage: 230Vac 50Hz
  • Intensity (In): 1.03 A.
  • Rated power: 0.12Kw. (0.16HP).
  • Medium starting torque.
  • Revolutions: 1400 rpm .

Technical characteristics of the reducer:

  • Reducer type: crown worm.
  • Reducer size: 40
  • Reduction ratio: 50
  • Final turns: 28 rpm .
  • Output torque: Nm.
  • Service factor:
  • For output shaft: Ø18mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the installation site

Questions

Question
Bom dia, gostaria de saber o torque de saída (nm) do motoredutores 24rpm, pois essa informação não está disponível.
Obrigado
Answer
Buenas tardes.
La información que tenemos disponible es   para reductor con ratio 80   34,7 Nm   y R60  29 Nn..
Saludos
Adajusa
Pedro Neves on 01/27/2025 09:46:54
