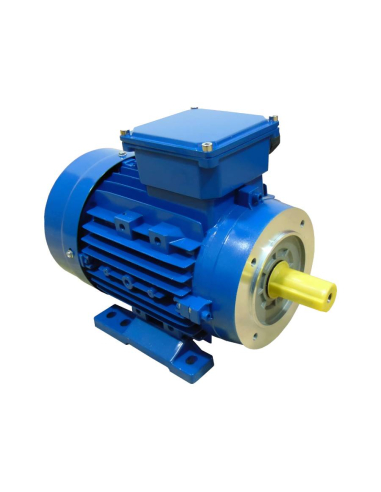

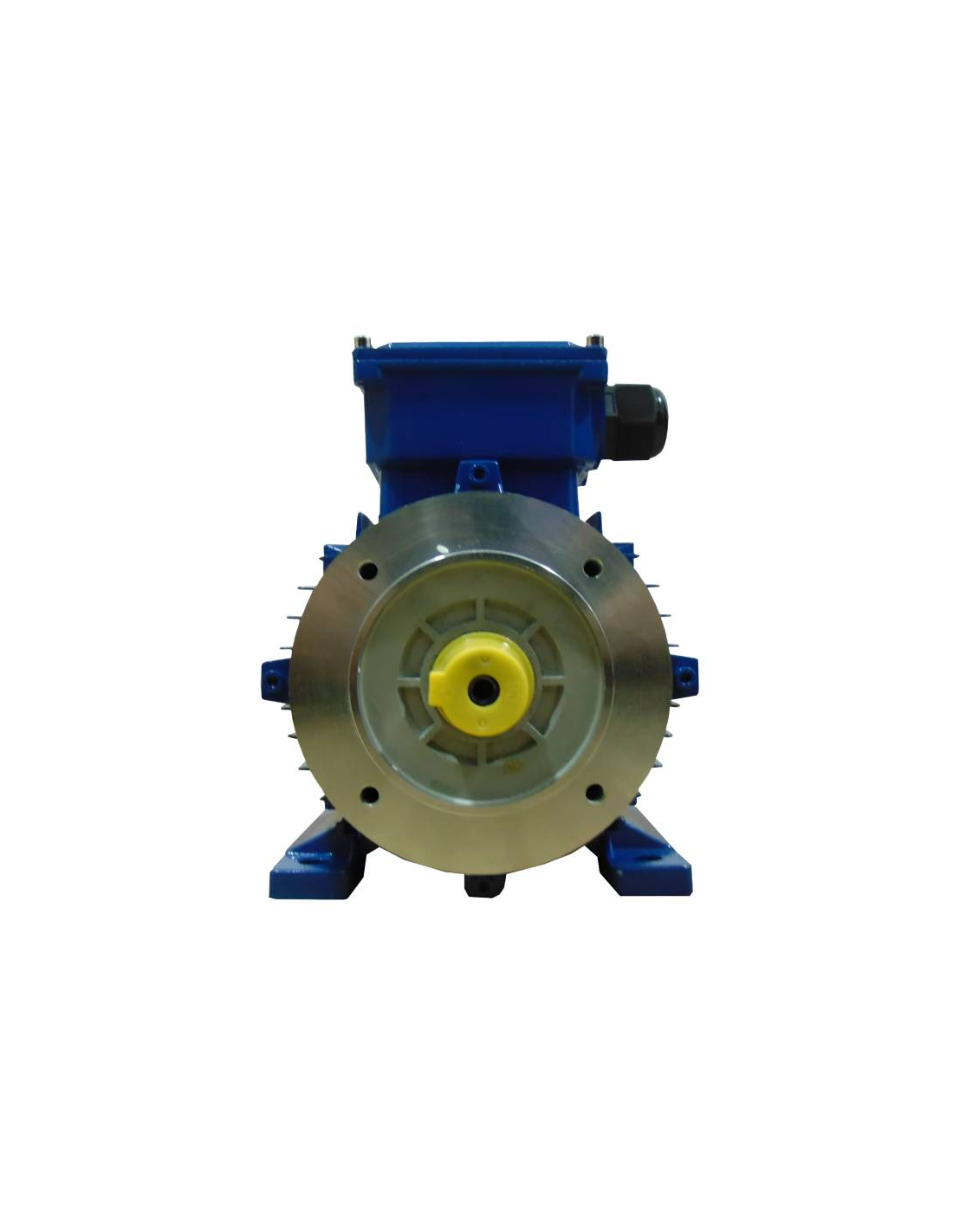

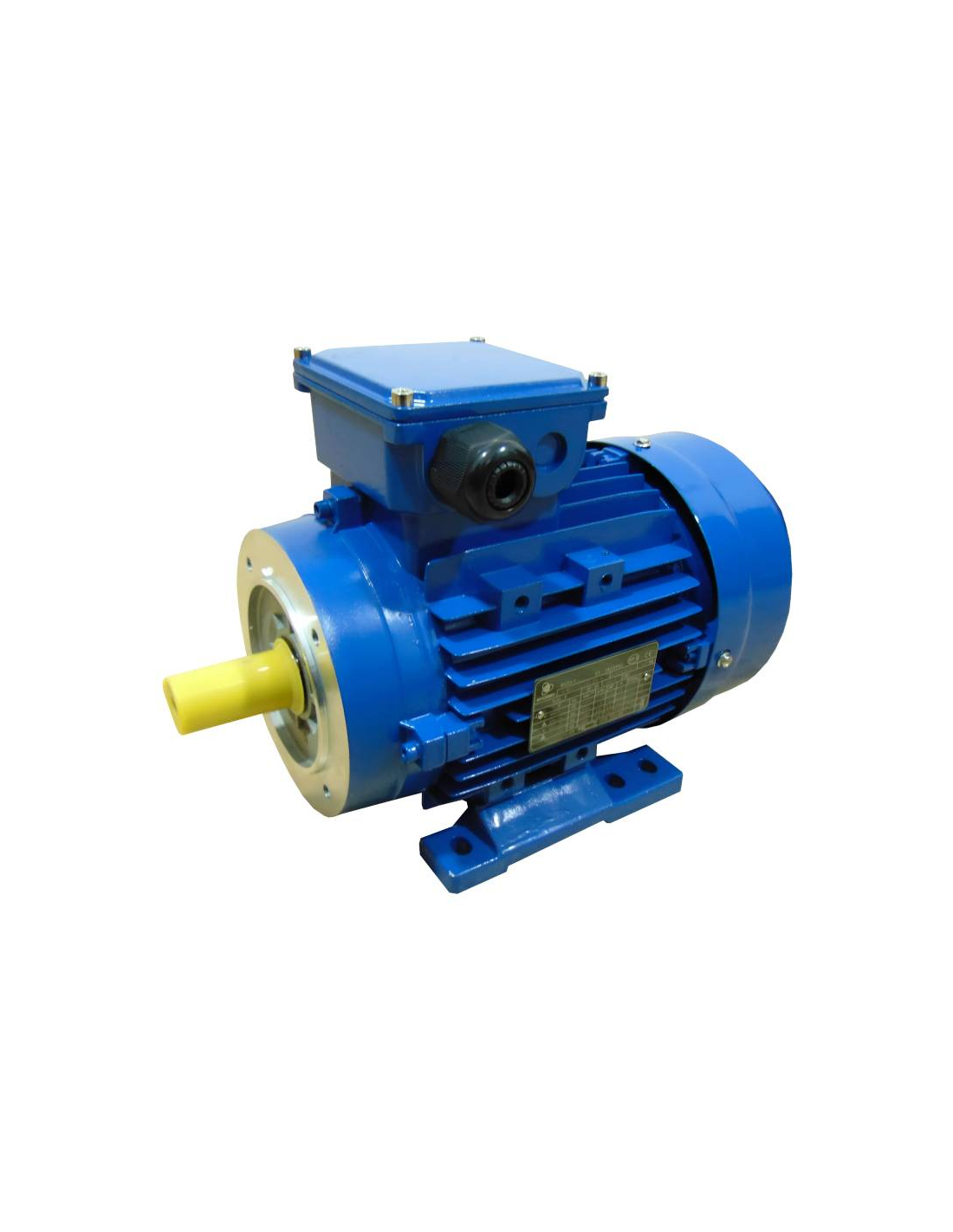

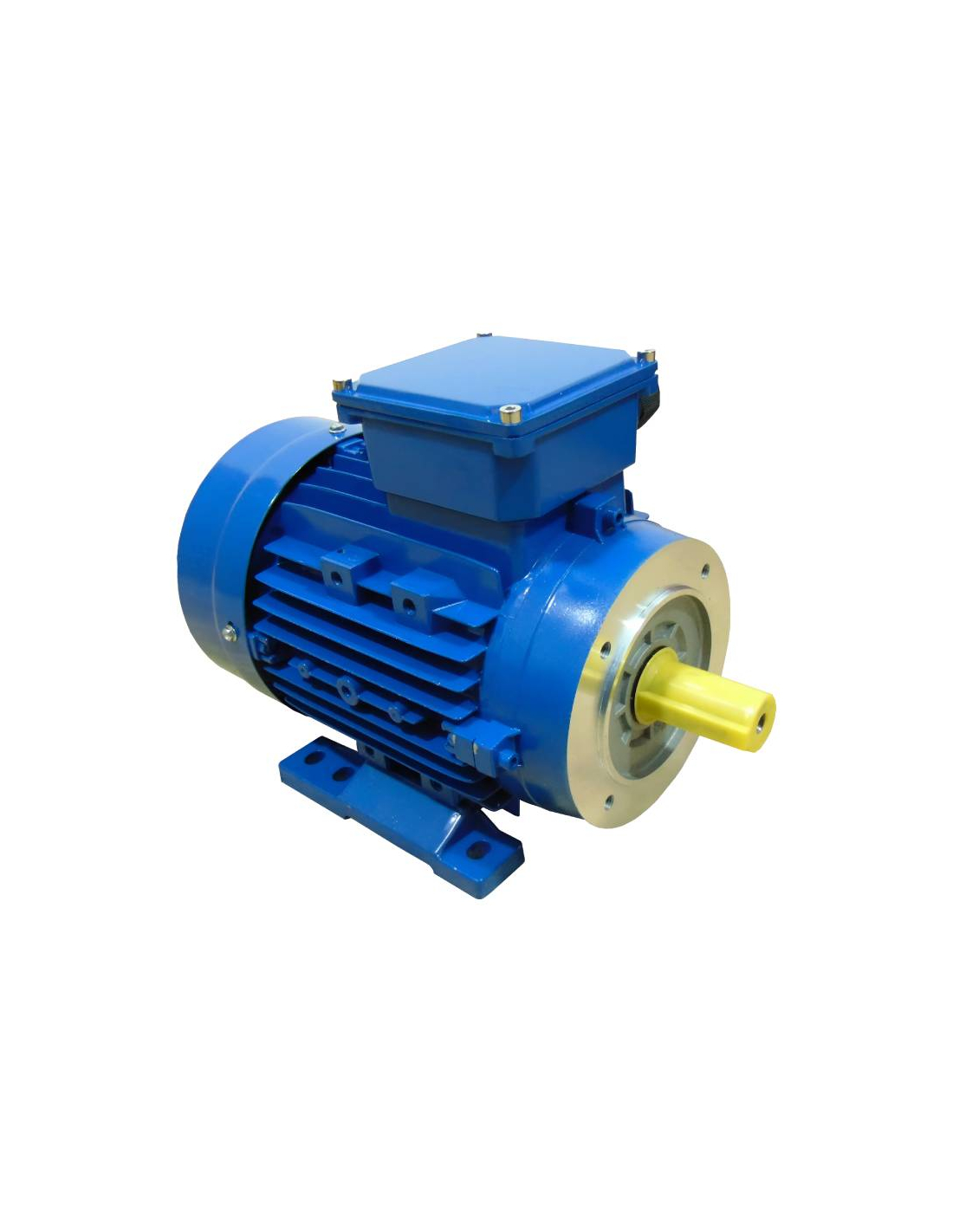

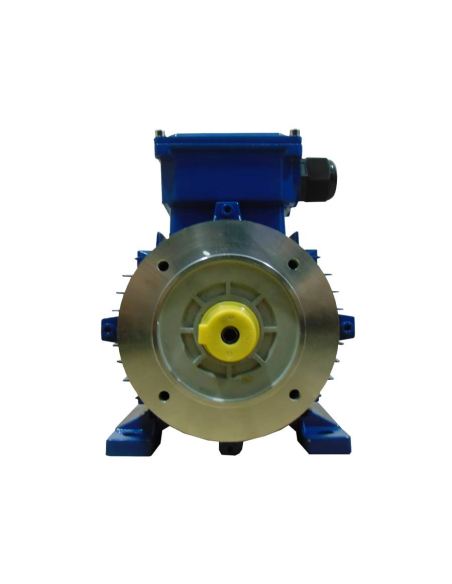

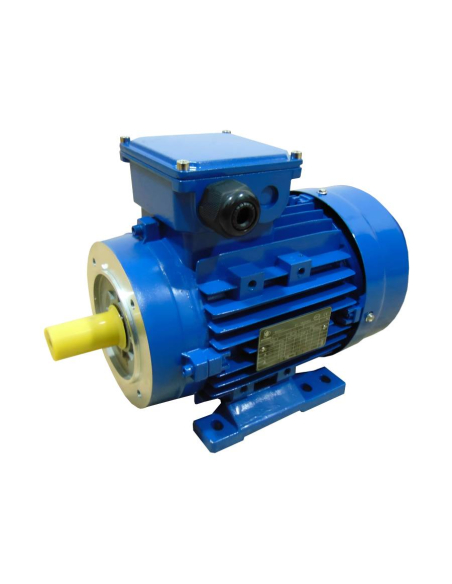

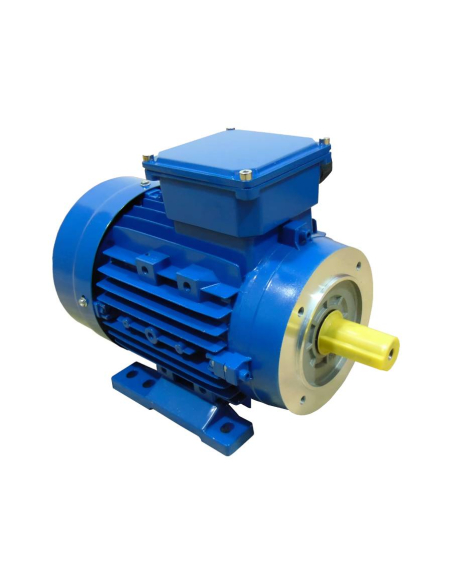

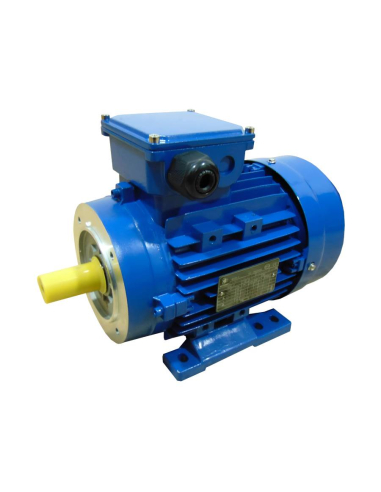

Single-phase motor 0.25Kw 0.33CV 230V 1500 rpm high starting torque, Flange B34

Single-phase electric motor of 0.25kw (0.33CV) 230Vac 50Hz, 4 poles (1500 rpm), flange type B34 and high starting torque with centrifugal circuit breaker.

Standardized single-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

The starting system by means of centrifugal circuit breaker and auxiliary starting capacitor, allows to have a reinforced starting, the system is fully automatic.

characteristics:

• Manufacturer/Importer: Motorseg
• Part number: SL-71M1-4 B34
• Type of motor: squirrel cage asynchronous
• Voltage: 230 V. 50 Hz
• Power: 0,25 Kw (0,33CV)
• High starting torque
• number of poles: 4 (1500 rpm)
• Current (In): 1.55A
• Starting current / rated current: 8.5
• Revolutions: 1350 rpm
• Efficiency: 56%
• Power factor: 0.90
• Maximum torque / Nominal torque: 1.7
• Starting torque / Nominal torque: 2,2
• Permanent capacitor: 12uF/450V
• Ctarter capacitorcapacitor: 40uF/250V
• Service: Continuous S1
• Degree of protection: IP55
• Type of fastening: B34 flange
• shaft diameter: Ø14mm
• Diameter of the flange: 105
• Flange PAM: 105/14
• Case size 71M1
• Color: Blue
• Housing material: Aluminum
• Noise level (dB): 65
• CE Marked
• Weight: 5,6Kg

For more information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
