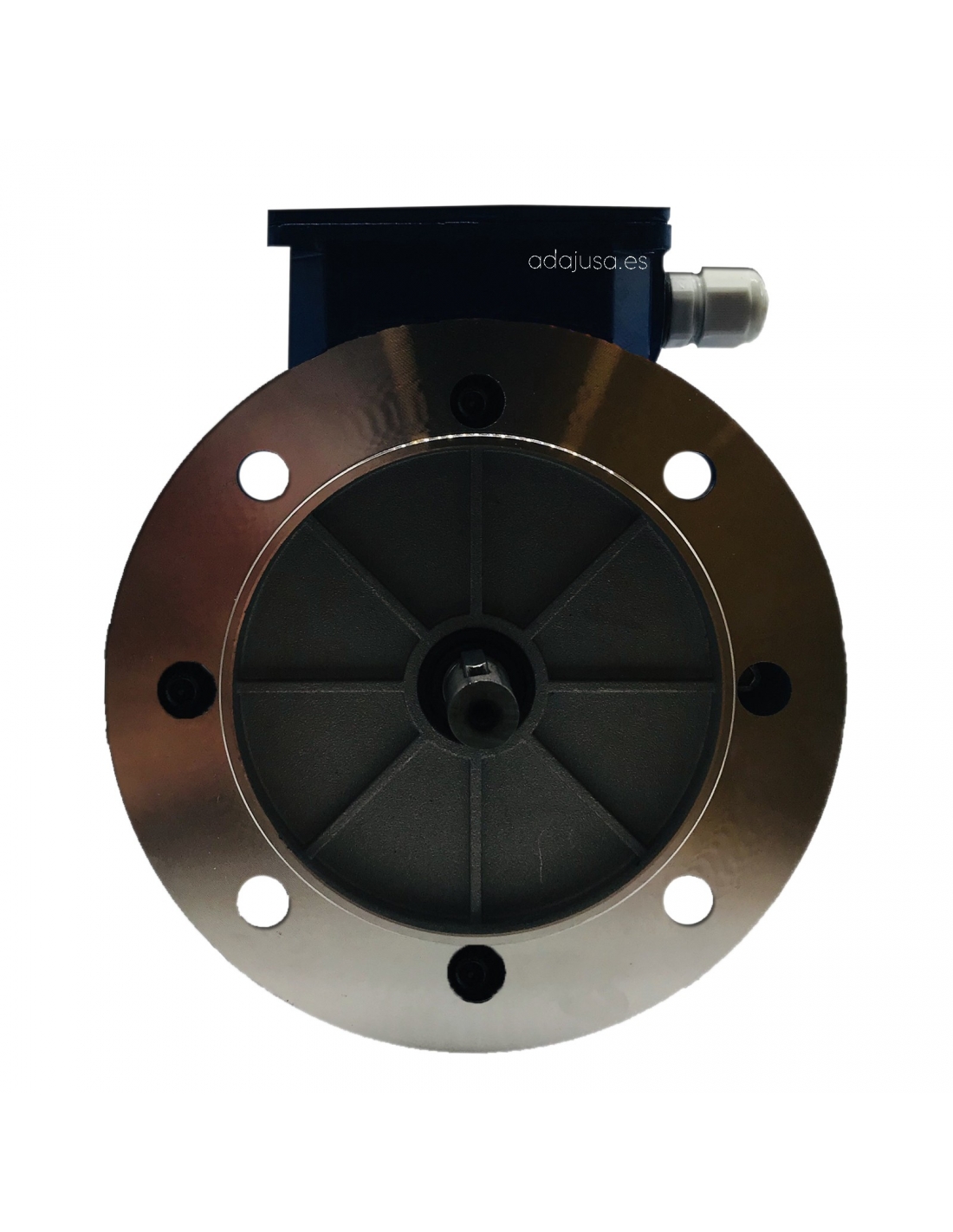

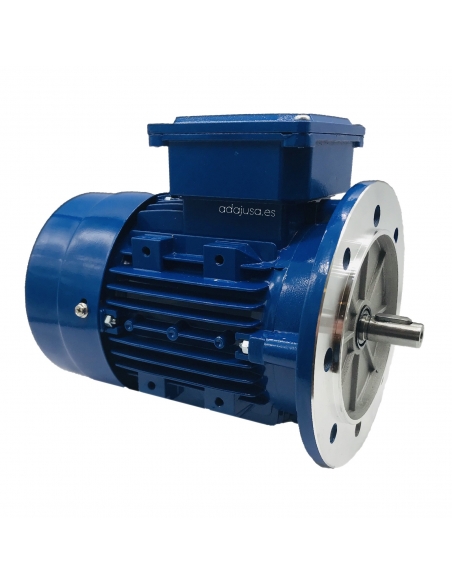

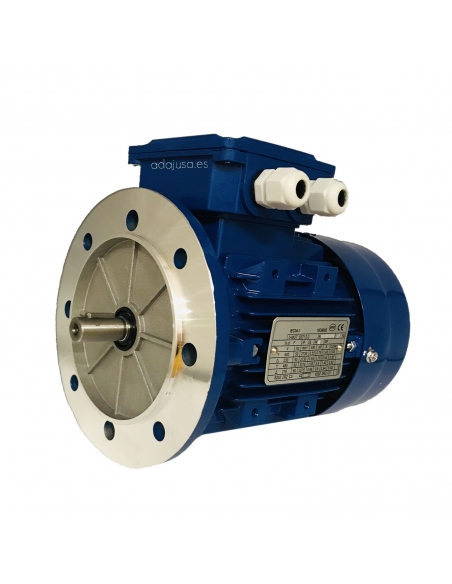

Single-phase motor 2.2Kw 3HP 230V 1500 rpm high starting torque, Flange B5

€304.28 Tax included

€255.70 tax excl.

SL100L4B5

Single-phase electric motor 2.2kW (3HP) 230V 1500 rpm Flange B5 (PAM 250/28), high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SL-100L-4 B5
  • Voltage: 230Vac 50Hz.
  • Power: 2.2Kw - 3HP
  • Type: High boot torque.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B5
  • Shaft diameter: 28mm.
  • Flange diameter: 250mm.
  • Size: 100(100L)
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor 2.2kw (3HP) 230Vac 50Hz , 4 poles (1500 rpm), flange type B5 x 250mm (PAM 250/28), high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SL-100L-4 B5
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 2.2Kw (3HP).
  • High start torque.
  • Number of poles: 4 (1500 rpm).
  • Nominal intensity (In): 12.6A
  • Starting intensity (Ia): 75
  • Revs: 1430 rpm.
  • Yield: 78%
  • Power factor (Cos): 0.97
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.8
  • Starting torque / Nominal torque (Ts/Tn): 2.3
  • Permanent capacitor: 50uF/450V
  • Starter capacitor: 300uF/300V
  • Service: permanent S1
  • Degree of protection: IP55.
  • Clamping type: Flange B5
  • Shaft Diameter: 28mm
  • Flange diameter: 250mm
  • PAM: 250/28
  • Enclosure Size: 100(100L)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 79.
  • Weight: 24 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B5

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Boa tarde.
Posso utilizar este motor elétrico num torno mecânico onde é necessário fazer inversão de rotação com frequência ? Ou seja trabalha para a direita seguidamente inverte para a esquerda.
Cumprimentos.
Ferreira
Answer
Boa tarde.

Entendemos que você tem um torno e deseja instalar um motor, os tornos podem girar para a direita e para a esquerda.
Caso tenha que ser submetido a muitas inversões rotacionais, seria importante que o motor fosse o mais potente possível, dentro das suas possibilidades, pois ciclos curtos de funcionamento significam que não é resfriado adequadamente e o motor pode sofrer um aumento de temperatura.
O motor deve ser protegido com um disjuntor de proteção do motor regulado para 90% da corrente nominal, caso contrário não atenderia às condições de instalação e em caso de deterioração não estaria coberto pela garantia.

No entanto, verifique se ele atende às suas especificações.

Saudações

Adajusa
Ferreira on 02/27/2025 17:19:19

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

8 other products in the same category:

Single-phase electric motor 3Kw 4HP 230V B5 1500 high starting torque | ADAJUSA Single-phase electric motor 3Kw 4HP 230V B5 1500 high starting torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 3Kw 4HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL100L14B5
€358.84 (€301.55 tax excl.)
Single-phase electric motor 3kW (4HP) 230V 1500 rpm Flange B5 (PAM 250/28), high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-100L1-4 B5 Voltage: 230Vac 50Hz. Power: 3Kw - 4HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 28mm. Flange diameter: 250mm....
Single-phase electric motor 0.37Kw 0.5HP 230V Flange B5 1500 high torque | ADAJUSA | price Single-phase electric motor 0.37Kw 0.5HP 230V Flange B5 1500 high torque | ADAJUSA | price 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm high starting torque, B5 flange

Generico-MOT
SL7124B5
€126.89 (€106.63 tax excl.)
Single-phase electric motor 0.37kW (0.5HP) 230V 1500 rpm B5 flange ( PAM 160/14), high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-71M2-4 B5 Voltage: 230Vac 50Hz. Power: 0.37Kw – 0.5HP Type: High starting torque. Number of poles: 4. Revolutions: 1500 rpm . Flange: B5 Shaft diameter: 14mm. flange...
Single-phase electric motor 3.7Kw 5HP 230V B5 1500 high torque | ADAJUSA Single-phase electric motor 3.7Kw 5HP 230V B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 3.7Kw 5HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL112M4B5
€446.18 (€374.94 tax excl.)
Single-phase electric motor 3.7kW (5HP) 230V 1500 rpm Flange B5 (PAM 250/28), high starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 3.7Kw - 5HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 28mm. Flange diameter: 250mm. Size: 112(112M2) Energy...
Single-phase electric motor 0.75Kw 1HP 230V Flange B5 1500 high torque | ADAJUSA Single-phase electric motor 0.75Kw 1HP 230V Flange B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 0.75Kw 1HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL8024B5
€176.69 (€148.48 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B5 (PAM 200/19), high starting torque, aluminum housing. Manufactured under European IEC regulations Reference: SL-80M2-4 B5 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 19mm. Flange diameter: 200mm....
Single-phase electric motor 0.55Kw 0.75HP 230V Flange B5 1500 high torque | ADAJUSA Single-phase electric motor 0.55Kw 0.75HP 230V Flange B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 0.55Kw 0.75HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL8014B5
€167.84 (€141.04 tax excl.)
Single-phase electric motor 0.55kW (0.75HP) 230V 1500 rpm Flange B5 (PAM 200/19), high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-80M1-4 B5 Voltage: 230Vac 50Hz. Power: 0.55Kw - 0.75HP Type: high pair of arranqu Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 19mm. Flange...
Single-phase electric motor 1.5Kw 2HP 230V Flange B5 1500 high torque | ADAJUSA Single-phase electric motor 1.5Kw 2HP 230V Flange B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 1.5Kw 2HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL90L4B5
€244.91 (€205.81 tax excl.)
Single-phase electric motor 1.5kW (2HP) 230V 1500 rpm Flange B5 (PAM 200/24), high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-90L-4 B5 Voltage: 230Vac 50Hz. Power: 1.5Kw - 2HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 24mm. Flange diameter: 200mm....
Single-phase electric motor 1.1Kw 1.5HP 230V Flange B5 1500 high torque | ADAJUSA Single-phase electric motor 1.1Kw 1.5HP 230V Flange B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 1.1Kw 1.5HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL90S4B5
€222.40 (€186.89 tax excl.)
Single-phase electric motor 1.1kW (1.5HP) 230V 1500 rpm Flange B5 (PAM 200/24), high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-90S-4 B5 Voltage: 230Vac 50Hz. Power: 1.1Kw - 1.5HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5 Shaft diameter: 24mm. Flange diameter:...
Single-phase electric motor 0.25Kw 0.33HP 230V B5 1500 high torque | ADAJUSA Single-phase electric motor 0.25Kw 0.33HP 230V B5 1500 high torque | ADAJUSA 2
Single-phase motors 1500 rpm flange B5 high torque

Single-phase motor 0.25Kw 0.33HP 230V 1500 rpm high starting torque, Flange B5

Generico-MOT
SL7114B5
€126.24 (€106.08 tax excl.)
Single-phase electric motor 0.25kW (0.33HP) 230V 1500 rpm Flange B5 (PAM 160/14), high starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.25Kw - 0.33hp. Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B5. Shaft diameter: 14mm. Flange diameter: 160mm. Size: 71....

Customers who bought this product also bought:

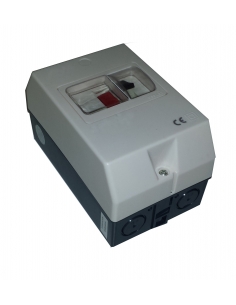

Starter motor circuit breaker 2.2Kw (3CV) single-phase 230V
  • Pack
Starters for electric motors

Motor protection Starter 2.2kW (3HP) single-phase 230Vac

TRACON
PK-ADM2202201
€32.76 (€27.53 tax excl.)
By installing this direct starter we protect the motor or machine through overload protection, avoiding its breakdown. It is also protected against short circuits, in the line or in the motor, as well as allowing use as a power switch.Reference: ADM2202201 Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Brackets and tensioners with bearings

Square bracket with shaft bearing 30mm UCF206 - ISB

ISB
UCF206-ISB
€10.20 (€8.57 tax excl.)
Square casting bracket with UCF206 inserted bearing for 30mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects. Reference: UCF206 Representative image...

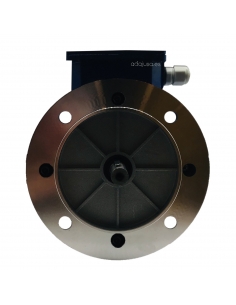

Three-phase motor 1.1Kw 1.5HP 230/400V 3000 rpm IE1 Flange B5 Three-phase motor 1.1Kw 1.5HP 230/400V 3000 rpm IE1 Flange B5 2
