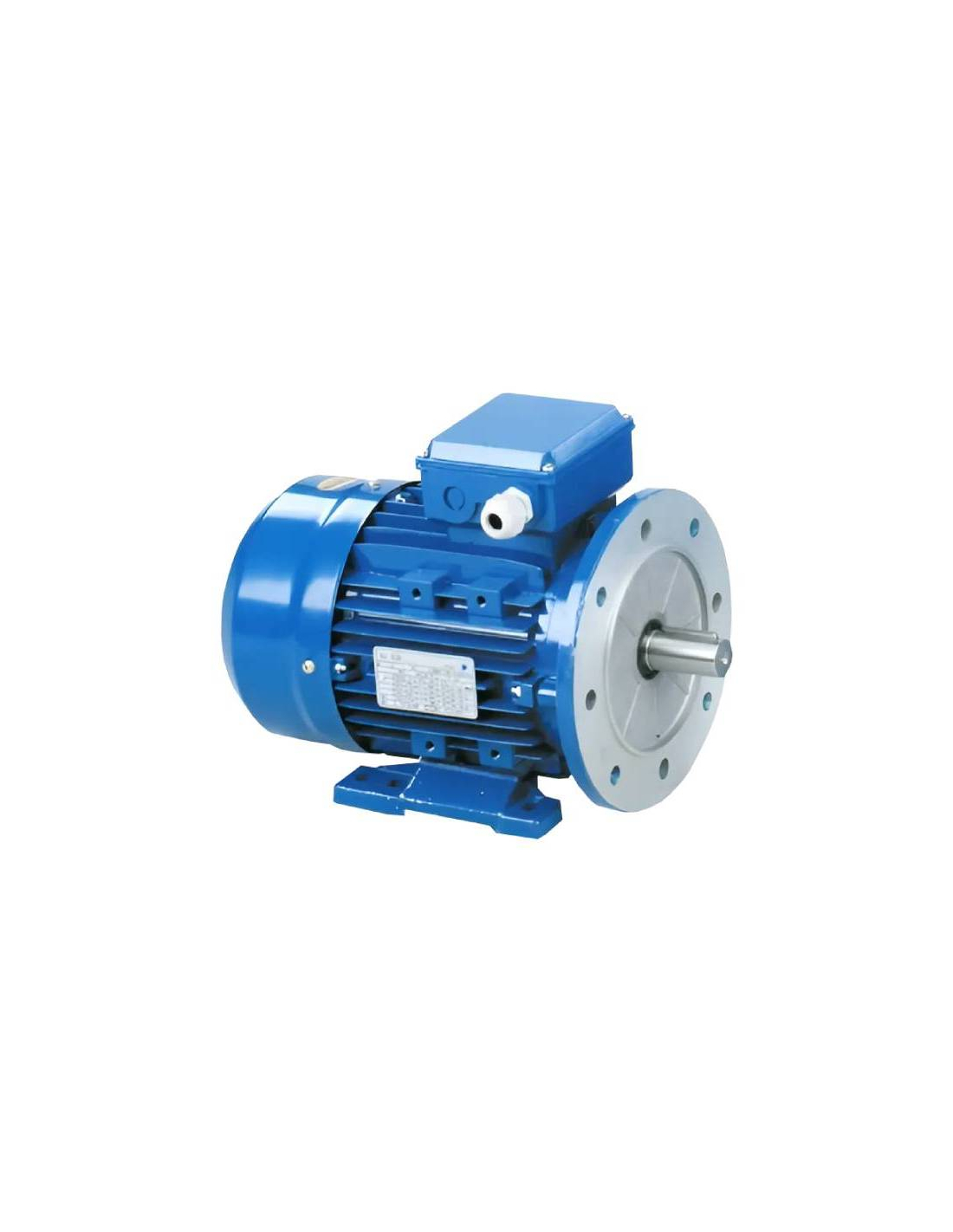

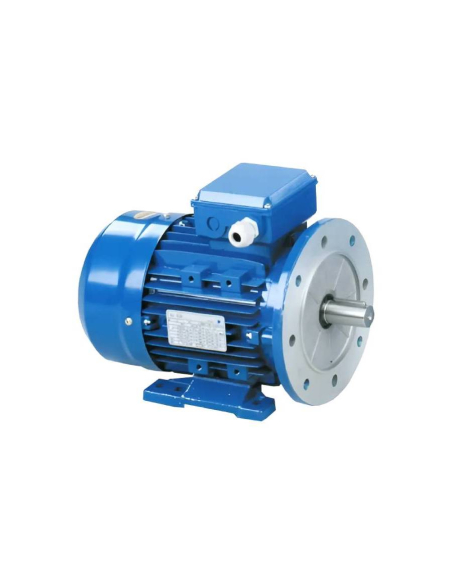

Single phase motor 0,37Kw 0,5CV 230V 3000 rpm high starting torque, Flange B35

Single-phase electric motor 0.37kW (0.5CV) 230Vac 50Hz, 2 poles (3000 rpm) B35 flange, high starting torque. Made of cast aluminum, removable legs.

Standardized single-phase electric motors for general purposes, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

The starting system by means of centrifugal circuit breaker and auxiliary starting capacitor, allows to have a reinforced starting, the system is fully automatic.

• Manufacturer/Importer: Motorseg
• Part number: SL-71M1-2 B35
• Motor type: squirrel cage asynchronous
• Voltage: 230 Vac. 50Hz
• Power: 0,37 Kw (0,5CV)
• High starting torque
• number of poles: 2 (3000 rpm)
• Rated current (In): 2,66A
• Starting current / rated current: 15
• Revolutions: 2780 rpm
• Efficiency: 70% efficiency
• Power factor: 0.95
• Maximum torque / rated torque: 1.7
• Starting torque / rated torque: 2.2
• Permanent capacitor: 12uF/450V
• Ctarter capacitorpermanent capacitor: 75uF/250V
• Continuous duty: S1
• Degree of protection: IP55
• Type of fastening: B35 flange
• Shaft diameter: Ø14mm
• Diameter of the flange: Ø160mm
• Case size 71 (71M1)
• Flange PAM 160/14
• Color: Blue
• Housing materialaluminum
• Sound level (dB): 75
• Weight: 5,6 Kg
• CE Marked

For more information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
