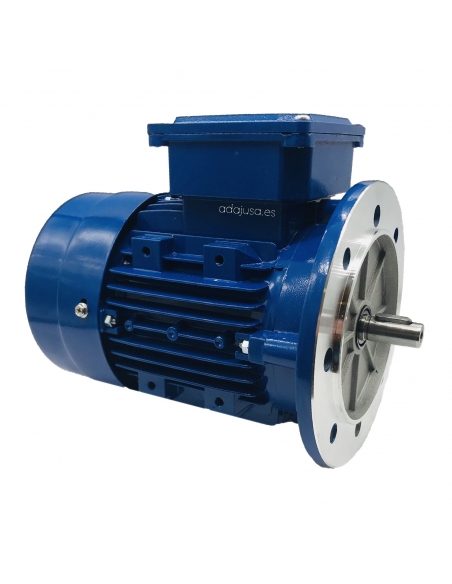

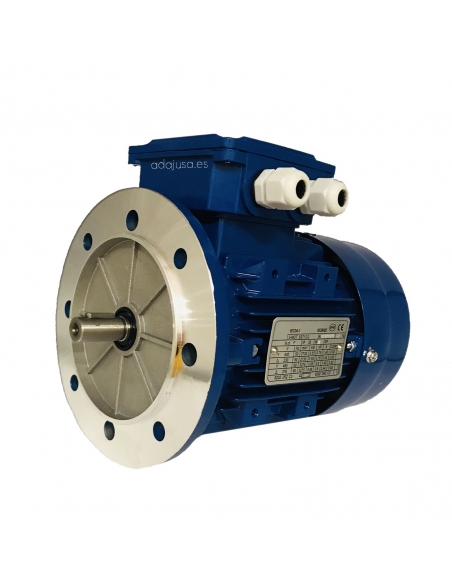

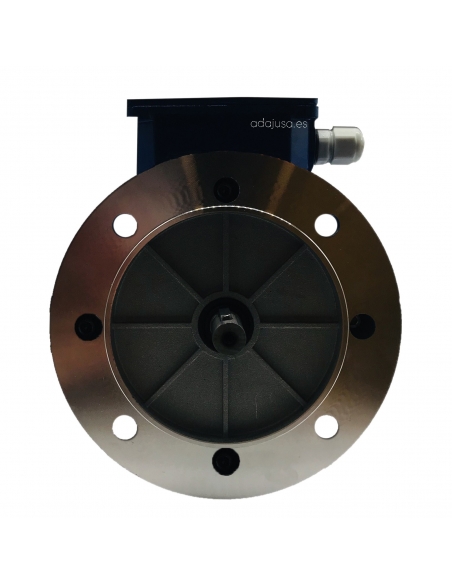

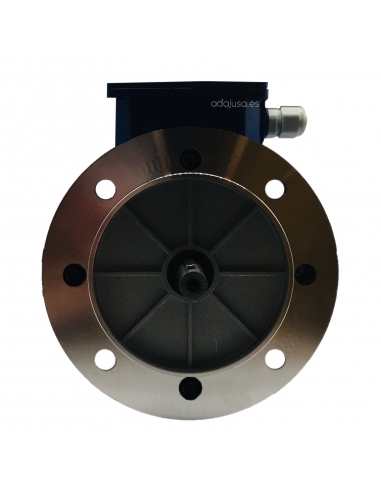

Single-phase motor 0.09Kw 0.12HP 230V 3000 rpm half start torque, Flange B5

€77.34 Tax included

€64.99 tax excl.

SY5612B5

Single-phase electric motor 0.09kW (0.12HP) 230Vac 50Hz. 2 poles (3000 rpm) Flange B5 (PAM 120/9), half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Power: 0.09Kw - 0.12hp.
  • Type: Half boot torque.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B5.
  • Shaft diameter: 9mm.
  • Flange diameter: 120mm.
  • PAM flange: 120/9.
  • Size: 56M1.
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor 0.09kw (0.12HP) 230Vac 50Hz , 2 poles (3000 rpm), B5 type flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-56M1-2 B5
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.09 Kw (0.12HP).
  • Medium start torque.
  • Number of poles: 2 (3000 rpm).
  • Nominal current (In): 0.8A.
  • Start-up intensity / rated intensity:
  • Revs: 2740 rpm.
  • Yield: 54%.
  • Power Factor:
  • Maximum Torque / Nominal Torque:
  • Starting torque / Nominal torque:
  • Permanent Capacitor: 6uF/450V
  • Service: Continuing S1
  • Degree of protection: IP55.
  • Clamping type: Flange B5.
  • Shaft Diameter: 9mm
  • Flange diameter: 120mm.
  • PAM flange: 120/9.
  • Housing size 56 (56M1).
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 70.
  • Weight: 2.8 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B5

To expand the information, you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations in the place of installation.

Questions

Question
¿Es reversible el sentido de giro?, necesito giro a izquierda. ¿Cuales son las medidas?
Answer

Buenas tardes Sr. Luis,

Le comento que si es posible cambiar el sentido de giro del motor, es muy fácil, solo hay que cambiar las posiciones de las chapas, las 2 que hay, de posición horizontal a vertical, tal y como aparece en la pagina 9 del documento "información técnica de motores" que aparece al final de la ficha del motor.

Por si tuviera problema en localizar el enlace del documento se lo pongo a continuación:

https://adajusa.es/index.php?controller=attachment&id_attachment=60

En el mismo documento puede ver las medidas del motor, busque las dimensiones de la carcasa 56 que es la que tiene este motor.

Saludos

Santiago

Luis García Fernández on 04/16/2016 17:13:46
