Solenoid valve 1/2 3 ways monostable normally open NO - Metal Work - ADAJUSA
Solenoid valve 1/2 3 ways monostable normally open NO - Metal Work - ADAJUSA

Solenoid valve 1/2 3 ways monostable NO - Metal Work

€143.72 Tax included

€120.77 tax excl.

Pneumatic solenoid valve 1/2 3-way monostable NO (usually open), without coil, for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030020400


Logo-Metal-Work

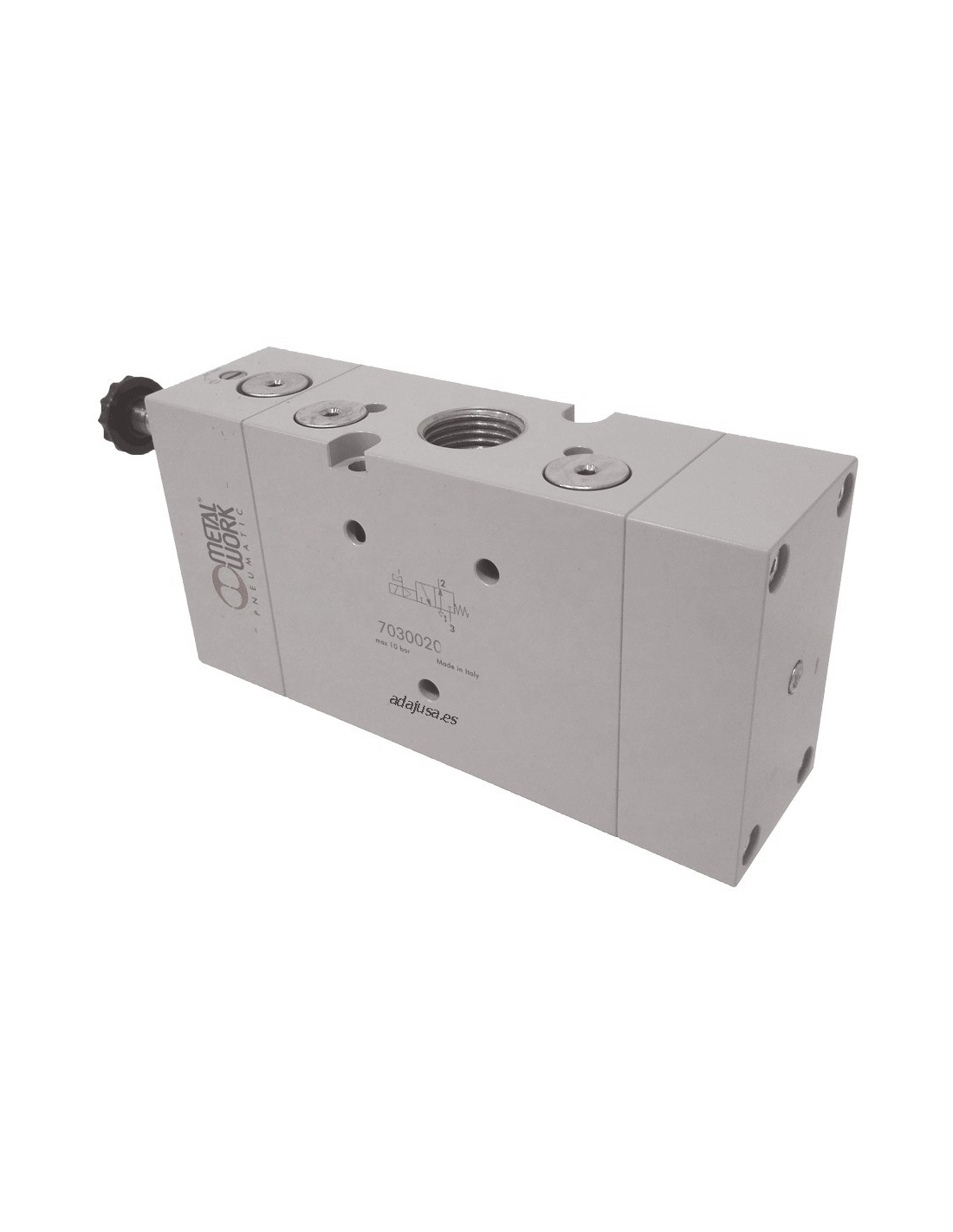

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/2 3 ways monostable without coil. For general and industrial applications. The solenoid valve is normally open (NO), that is, without tension in the coil, the inlet is communicated with the outlet, that is, there is air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is deactivated, and the air circulation between the inlet and outlet of the solenoid valve is blocked.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference: SOV 43 SOS NO Code: 7030020400
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 15mm.
  • Flow at 6 bars Δp 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1_2 monoestable metal work 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
