Solenoid valve 1/4 3 way bistable 24Vdc 2W - Metal Work

€98.97 Tax included

€83.17 tax excl.

1/4" 3-way bistable pneumatic solenoid valve, for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Connector 22 mm
esquema neumatico electrovalvula 3 vias biestables

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

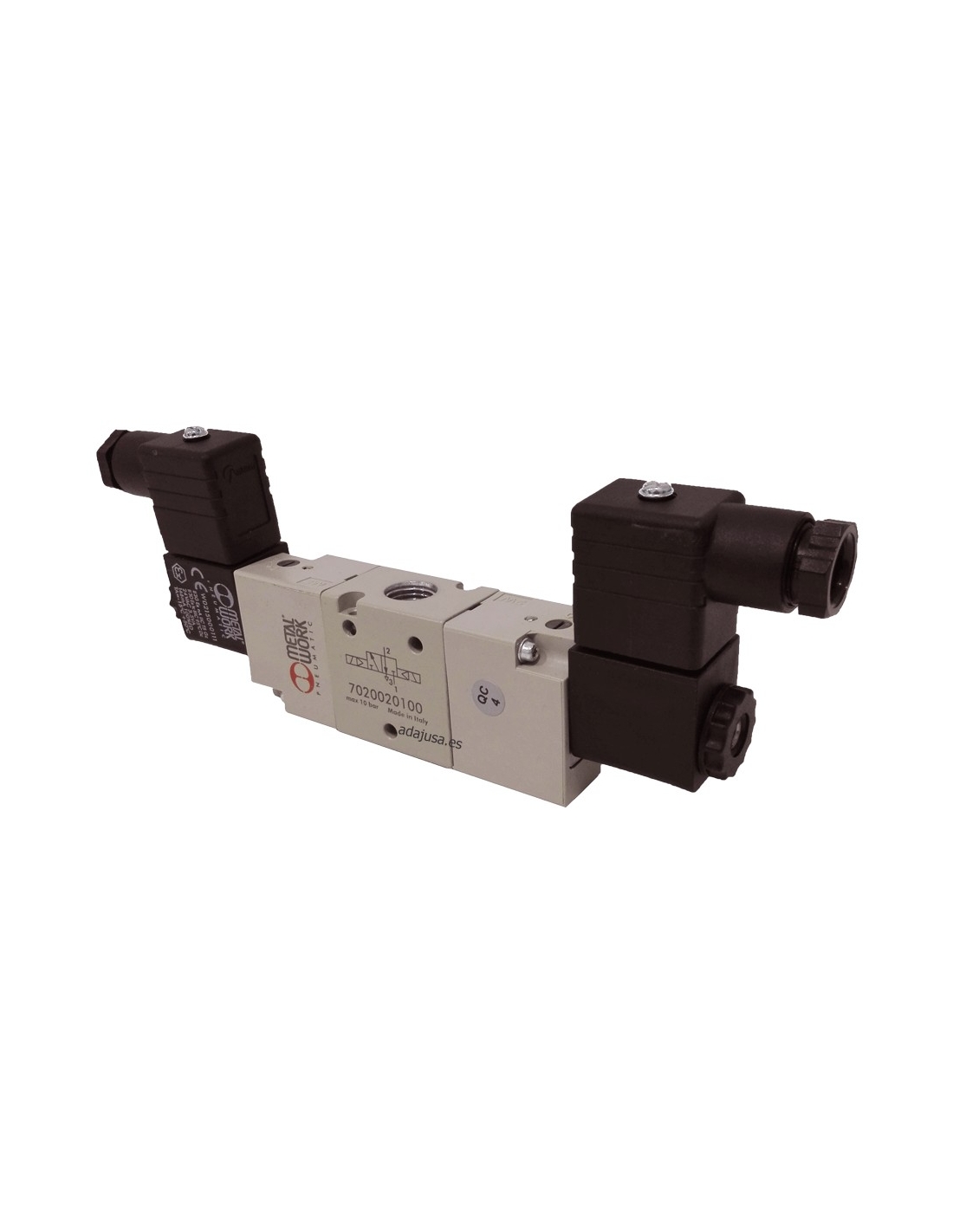

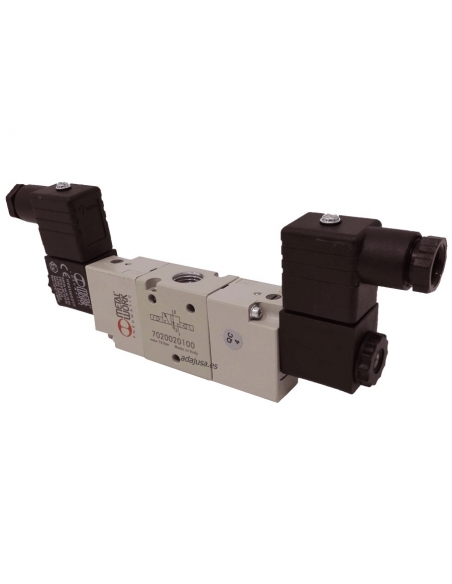

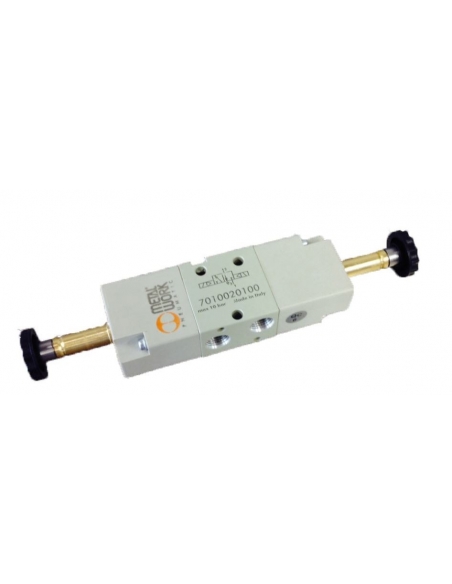

1/4 3-way bistable pneumatic solenoid valve, for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm.

Made of aluminum, compact size and high air passage flow, short response time.

The feed pressure must be applied to toa 2, use in socket 1 and exhaust in socket 3.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm.

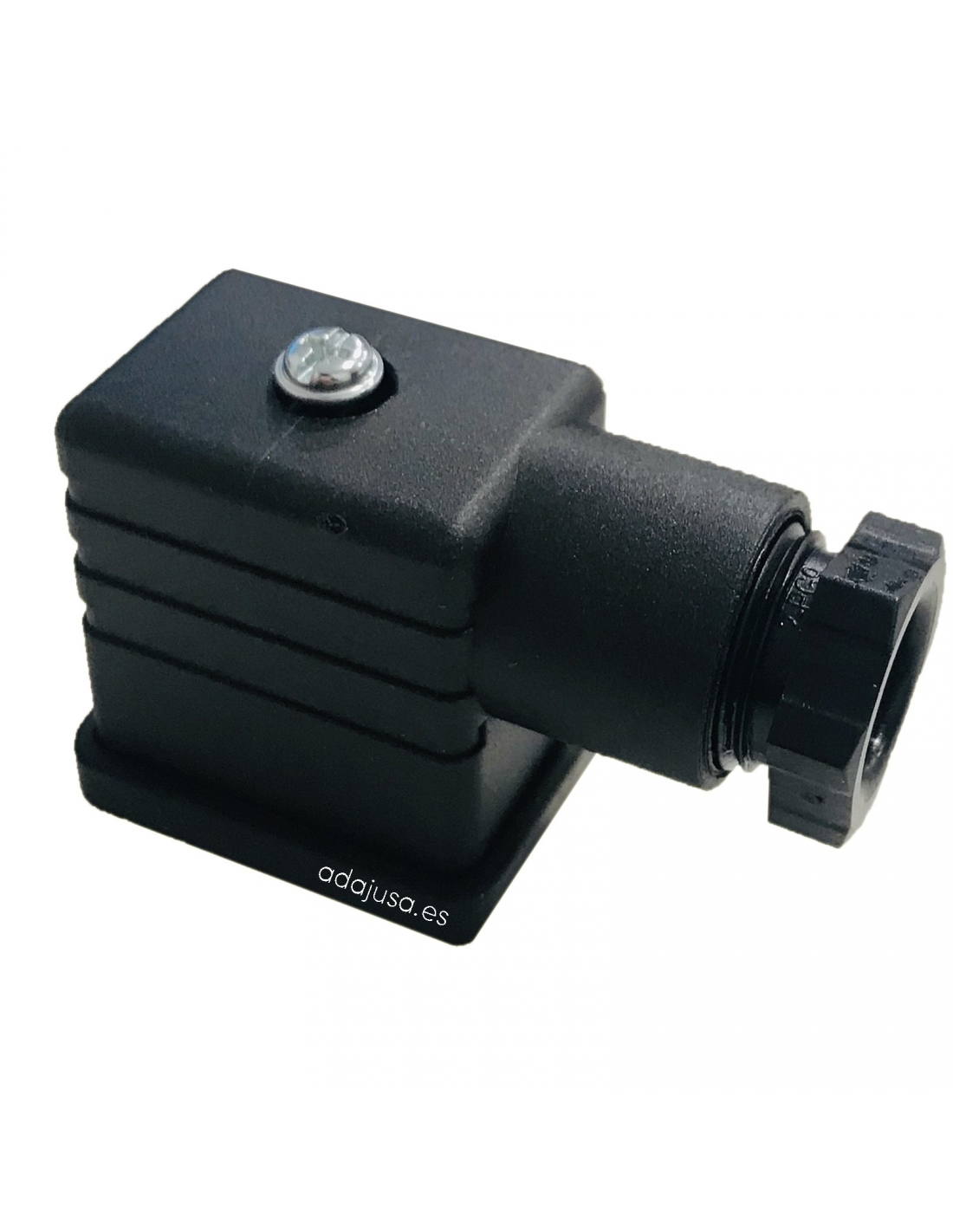

22mm plastic connector

The supply includes:

  • 1 Solenoid valve 1/4 3-way bistable
  • 2 Coil 24Vdc 2 W
  • 2 Connector 22 mm

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference: 7020020100 - SOV 33 SOB OO
  • Type: 1/4-5/2 Bistable
  • Thread: G 1/4"
  • Voltage: 24Vdc
  • Consumption: 2 W
  • Operating pressure: 2.5 bar÷10 bar
  • Minimum working pressure: 2.5 bar
  • Working temperature: -10°÷ +60°C
  • Nominal diameter: 5mm.
  • Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
  • Capacity at 6 bar ΔP 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0,152kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
