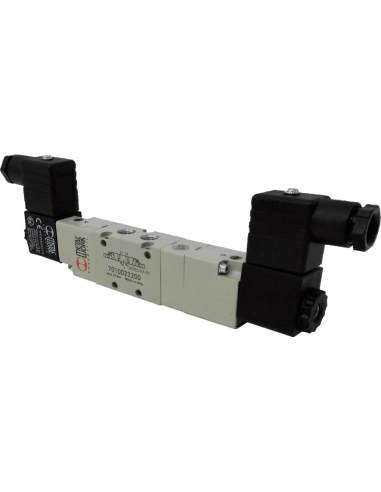

Solenoid valve 1/8 5/3 exhaust centers 24Vac 3.5VA - Metal Work

1/8" 5-way, 3-position solenoid valves, open exhaust centers, metal body, for industrial or general pneumatic applications, the most common application is double-effect cylinder control. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if one coil is fed the cylinder advances, if both coils are left without voltage, the cylinder will be without pneumatic pressure by any of its inputs, so that the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic connector

Supply includes:

• 1/8" 5/3 solenoid valves
• 2 Coils 24Vac 3.5VA
• 2 22mm connectors

Technical details:

• Manufacturer of the solenoid valve: Metal Work.
• Solenoid valve reference: 7010022200 - SOV26SOBOC
• Working pressure of the solenoid valve: 2.5 to 10 bar.
• Voltage: 24Vac
• Consumption 3.5VA
• Minimum working pressure: 2.5 bar.
• Working temperature: -10oC to 60oC.
• Nominal diameter: 5mm.
• Flow rate at 6 bars p 1 bar: 550 Nl/min.
• Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
