Electrovalve 1/8 5-way 3 positions pressure centers - Metal Work - ADAJUSA
Electrovalve 1/8 5-way 3 positions pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8-way 3 positions pressure centers - Metal Work

€95.03 Tax included

€79.86 tax excl.

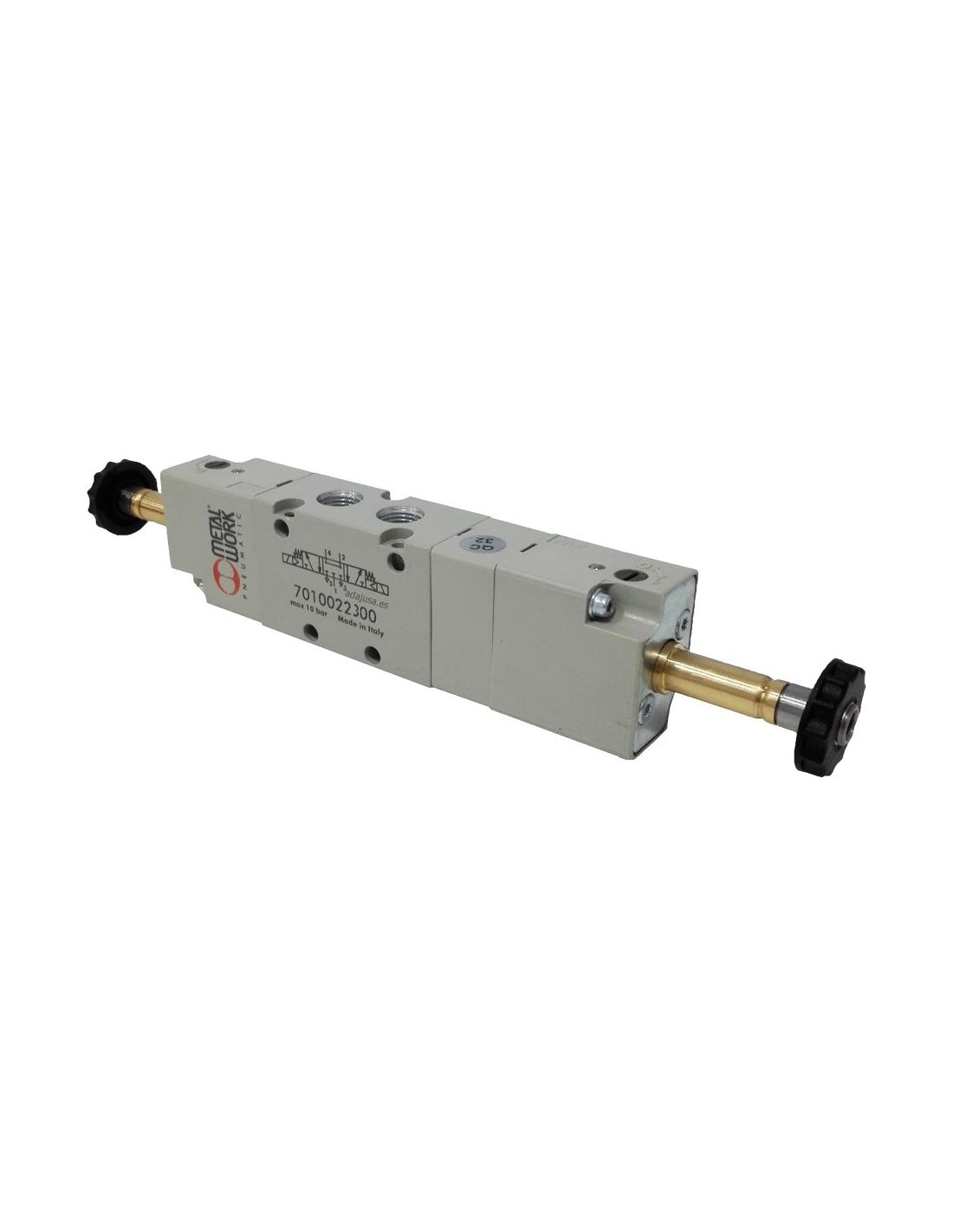

1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use.
Reference: 7010022300

Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valves of 1/8" of 5 ways and 3 positions, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Made in Europe.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7010022300 - SOV26SOBPC
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
