Solenoid valve 1/8 5 ways bistable differential 110 Vac - Metal Work
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22

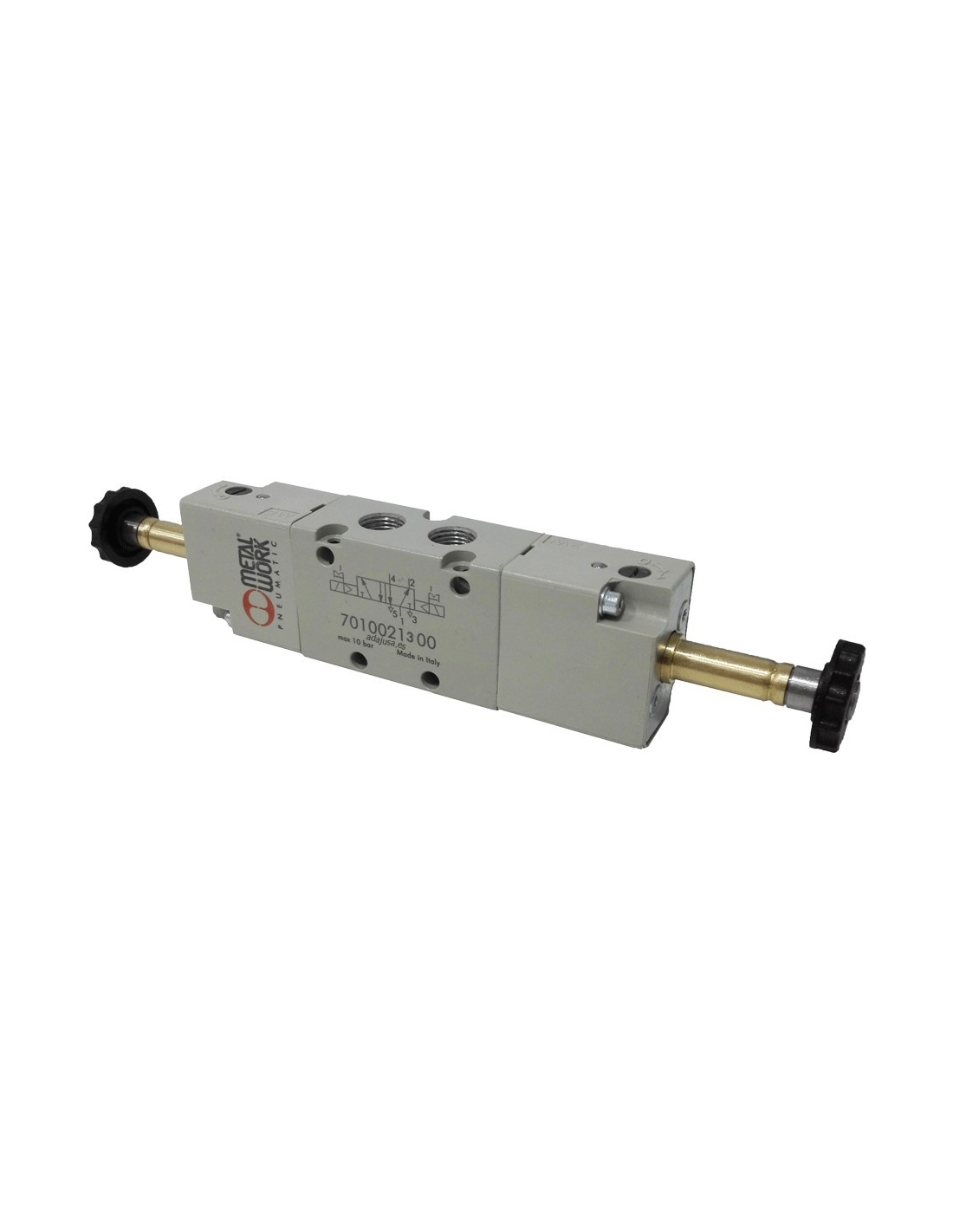

Solenoid valve 1/8 5 ways bistable differential - Metal Work
Solenoid valve 1/8 5 ways bistable differential 110 Vac - Metal Work
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/8 5 ways bistable differential - Metal Work

Solenoid valve 1/8 5 ways bistable differential 110 Vac - Metal Work

€93.55 Tax included

€78.61 tax excl.

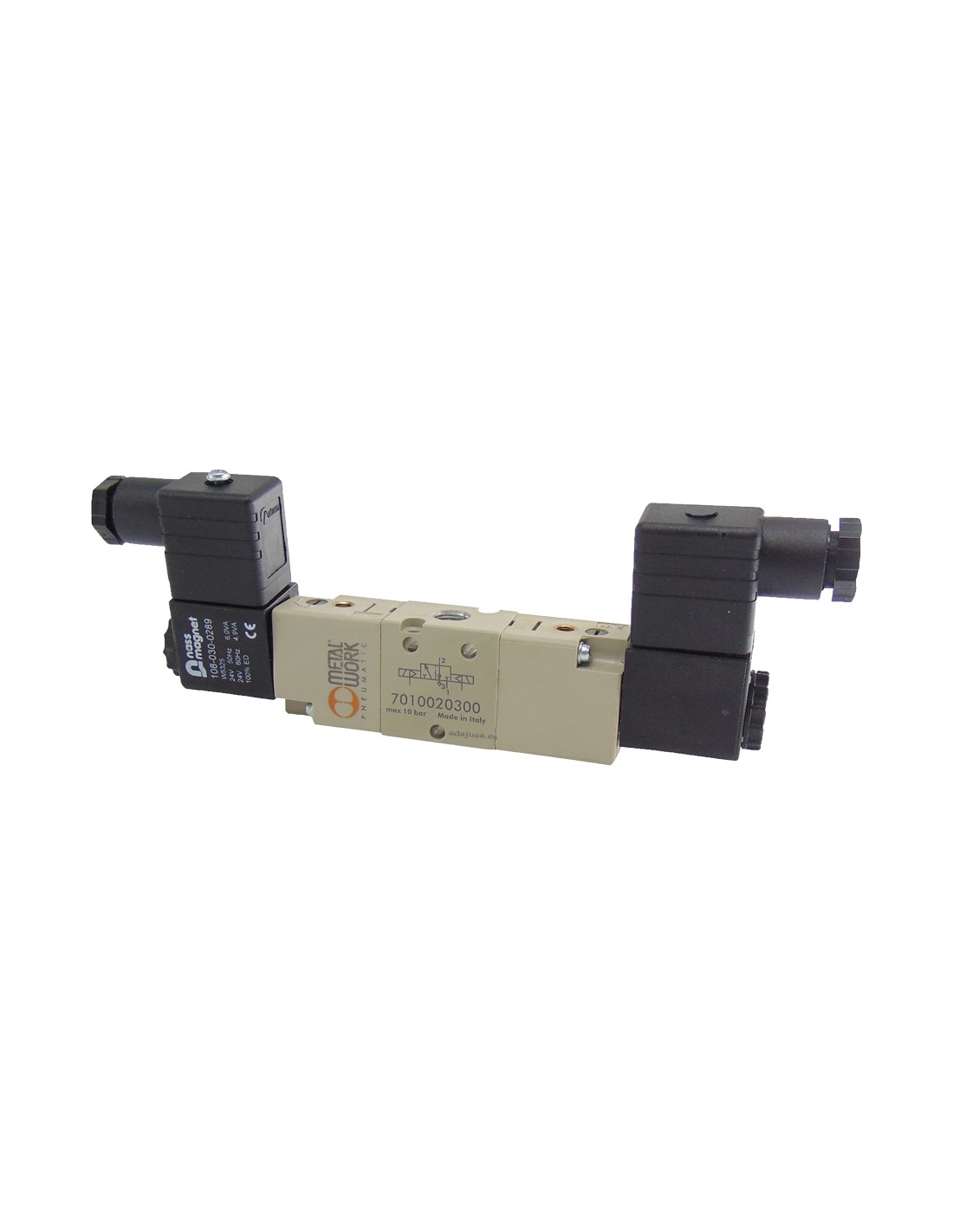

Solenoid valve 1/8 5 ways bistable differential with connectors and coils voltage 110 Vac


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/8 5 ways bistable differential relocation with 22 mm connectors and 110Vca coils.

The supply includes:

  • Solenoid valve 1/8 5 ways differential bistable
  • 2 x 22 mm connectors
  • 2 coils 110Vca - 3.5VA

Specifications:

  • Manufacturer: Metal Work
  • Thread type: G 1/8"
  • Bistable bar: 1 ÷ 10
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121,43
  • Critical bar/bar ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • Bistable TRA/TRR at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Insulation class: F 155
  • Voltage: 110Vca
  • Rated power: 3.5VA.

electrovalvula 1/8-5/2 biestable metal work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
